CrowPanel Advanced 9inch ESP32-P4 HMI AI Display 1024x600 IPS Touch Screen with WiFi 6 Support - Without Camera

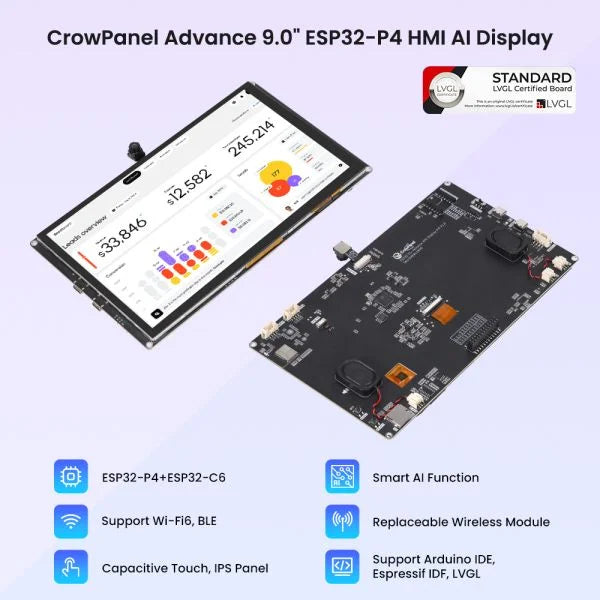

CrowPanel Advanced 9inch ESP32-P4 HMI AI Display 1024x600 IPS Touch Screen with WiFi 6 Support - Without Camera is a high-performance HMI development display based on the ESP32-P4 RISC-V processor, designed for AIoT, smart-home control, industrial automation, robotics, multimedia interfaces, and embedded applications. It features a 9-inch 1024×600 IPS capacitive touchscreen, 16MB Flash, 32MB PSRAM, dedicated ESP32-C6 wireless connectivity with 2.4GHz Wi-Fi 6 and Bluetooth 5.3, along with USB, UART, I2C, GPIO, microSD, audio, and battery interfaces. The display supports Arduino IDE, ESP-IDF, LVGL, and other development environments for building customized graphical HMI applications. The camera is not included in this version.

Note: The ESP32 P4 Official is not supported by the PlatformIO platform.

CrowPanel Advanced 9inch ESP32-P4 HMI AI Display 1024x600 IPS Touch Screen with WiFi 6 Support - Without Camera Datasheet

Features:

1. ESP32-P4 based high-performance HMI AI development display.
2. Dual-core 32-bit RISC-V high-performance processor up to 400MHz.

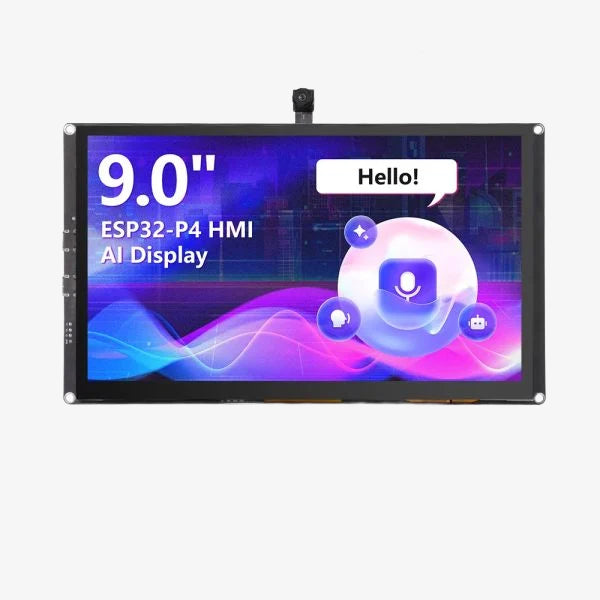

3. 9-inch IPS display with 1024 × 600 resolution.
4. Capacitive touchscreen with single-point and 5-point multi-touch support.
5. 178° wide viewing angle.
6. 400 cd/m² typical display brightness.
7. 16MB onboard Flash memory.
8. 32MB PSRAM for handling complex graphical interfaces and AI workloads.
9. Dedicated ESP32-C6-MINI-1 wireless module.
10. 2.4GHz Wi-Fi 6 connectivity.
11. Bluetooth 5.3 and Bluetooth Low Energy support.

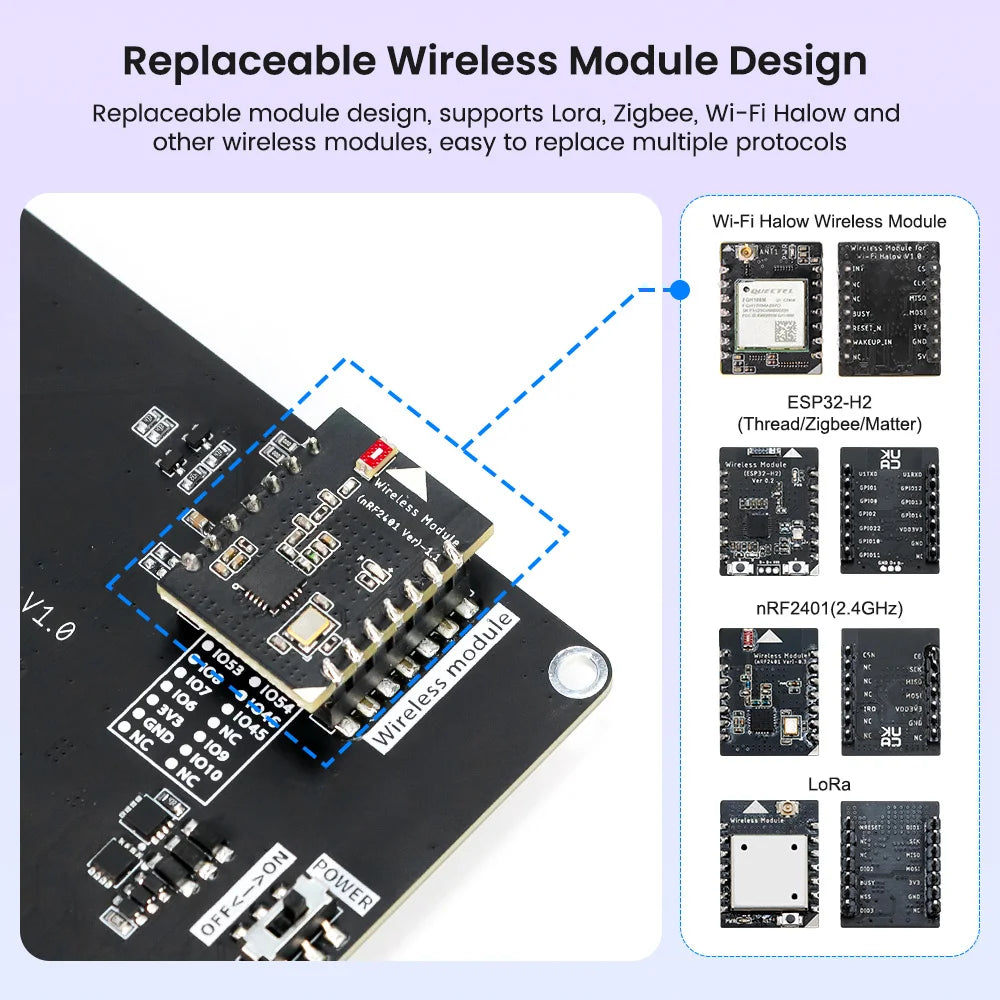

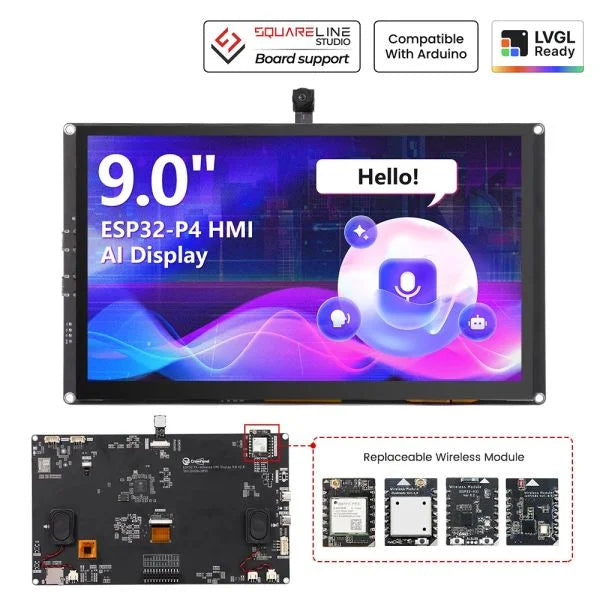

12. Replaceable wireless module design for optional communication modules.
13. Supports Arduino IDE and ESP-IDF development.
14. Compatible with LVGL for graphical user interfaces.

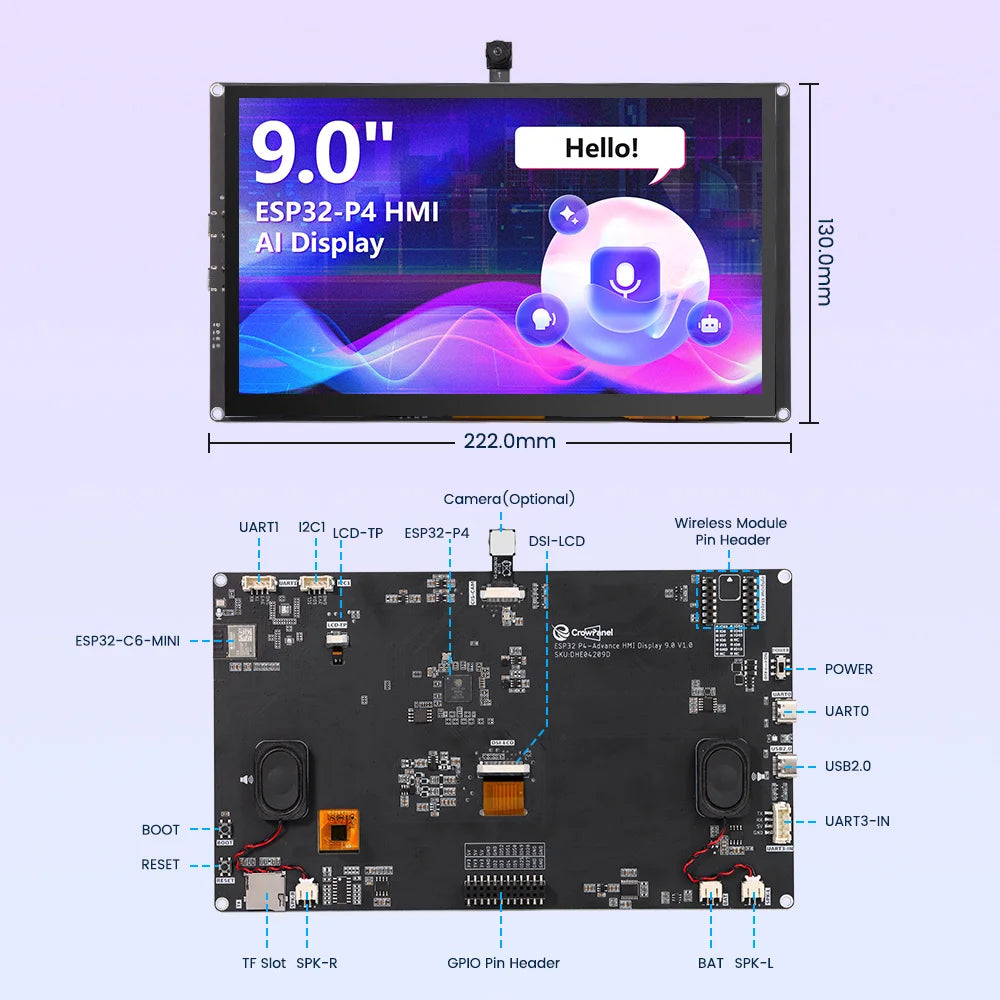

15. USB 2.0, UART, I2C, GPIO and microSD interfaces.
16. Built-in audio amplifier and dual-speaker support.
17. Built-in microphone for voice-interaction applications.
18. Battery charging management circuit with dedicated battery connector.
19. Multiple expansion interfaces for sensors and external peripherals.
20. Camera header provided, but camera is not included with this version.
21. Suitable for smart-home control panels, industrial HMI, robotics, automation, AIoT and embedded systems.

Specifications:

Also Check These Products:-

Elecrow CrowPanel 7.0" HMI ESP32 Display 800×480 RGB TFT LCD

Elecrow 2.4inch ESP32 Solo Miner LCD Display Cryptocurrency

Elecrow 10.1 inch IPS 1280×800 Touchscreen Display Monitor

Elecrow CrowPanel ESP Terminal ESP32 3.5 inch 480×320 Parallel RGB Touch Display

Discover Elecrow products such as Arduino starter kits, ESP32 HMI displays, CrowPanel touch screens, and IoT development modules, ideal for electronics prototyping, automation, embedded systems, and smart device development.

Package Includes:

1 x CrowPanel Advanced 9inch ESP32-P4 HMI AI Display
1 x USB-A to Type-C Cable
1 x Crowtail/Grove 4-Pin DuPont Cable
