CrowPanel Advanced 5inch ESP32-P4 HMI AI Display 800x480 IPS Touch Screen with WiFi 6-Without Camera

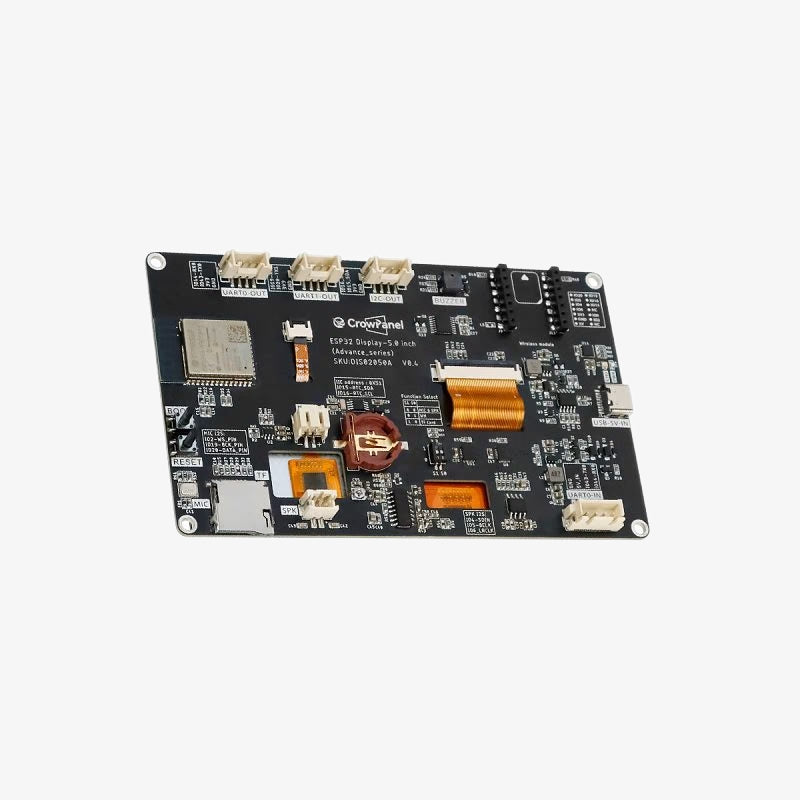

CrowPanel Advanced 5-Inch ESP32-P4 HMI AI Display 800×480 IPS Touchscreen with Wi-Fi 6 – Without Camera is a high-performance human-machine interface (HMI) development platform powered by the ESP32-P4 dual-core RISC-V processor. It features a 5-inch IPS capacitive touchscreen, 16MB Flash, 32MB PSRAM, Wi-Fi 6, Bluetooth 5.3, audio interfaces, and multiple expansion connectors. The display is suitable for embedded-system development, smart home control panels, industrial monitoring, IoT devices, and interactive AI applications.

CrowPanel Advanced 5-Inch ESP32-P4 HMI AI Display Datasheet

Features:

1. ESP32-P4 dual-core 32-bit RISC-V processor operating at up to 400MHz
2. Dedicated ESP32-C6 wireless module for Wi-Fi 6 and Bluetooth 5.3

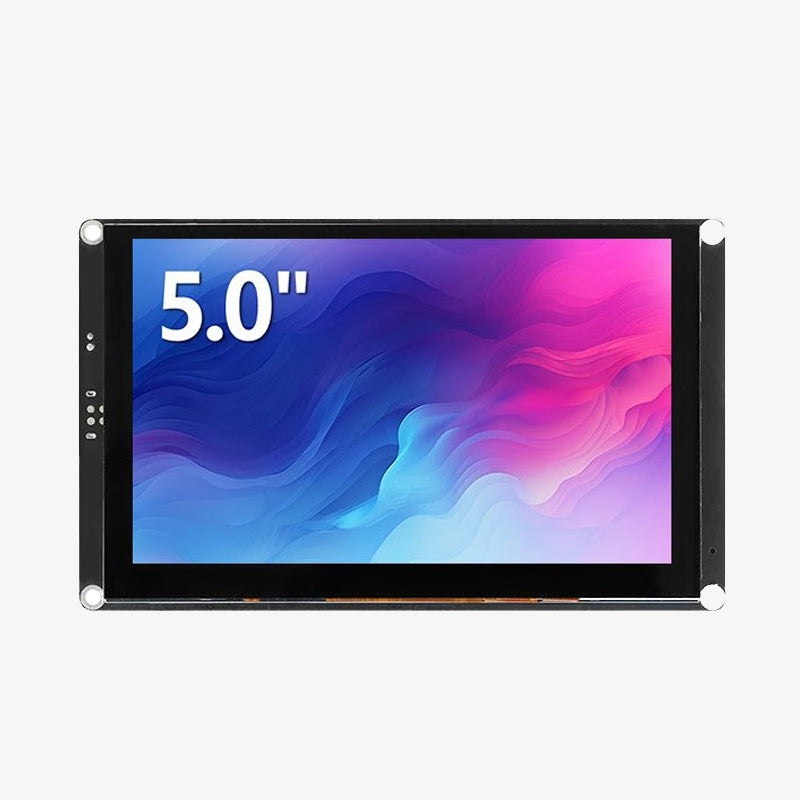

3. 5-inch IPS touchscreen with 800×480 resolution
4. Capacitive multi-touch support for up to 5 touch points
5. 16MB Flash and 32MB PSRAM for application storage and processing
6. 16.7 million display colors with 8-bit color depth
7. 178° viewing angle
8. Integrated microphone and audio amplifier circuitry
9. Speaker output connector for audio playback
10. Dual USB Type-C connectivity for programming and USB communication
11. UART, I2C and GPIO expansion interfaces
12. MicroSD card interface for external storage
13. Dedicated lithium battery connector with charging circuit

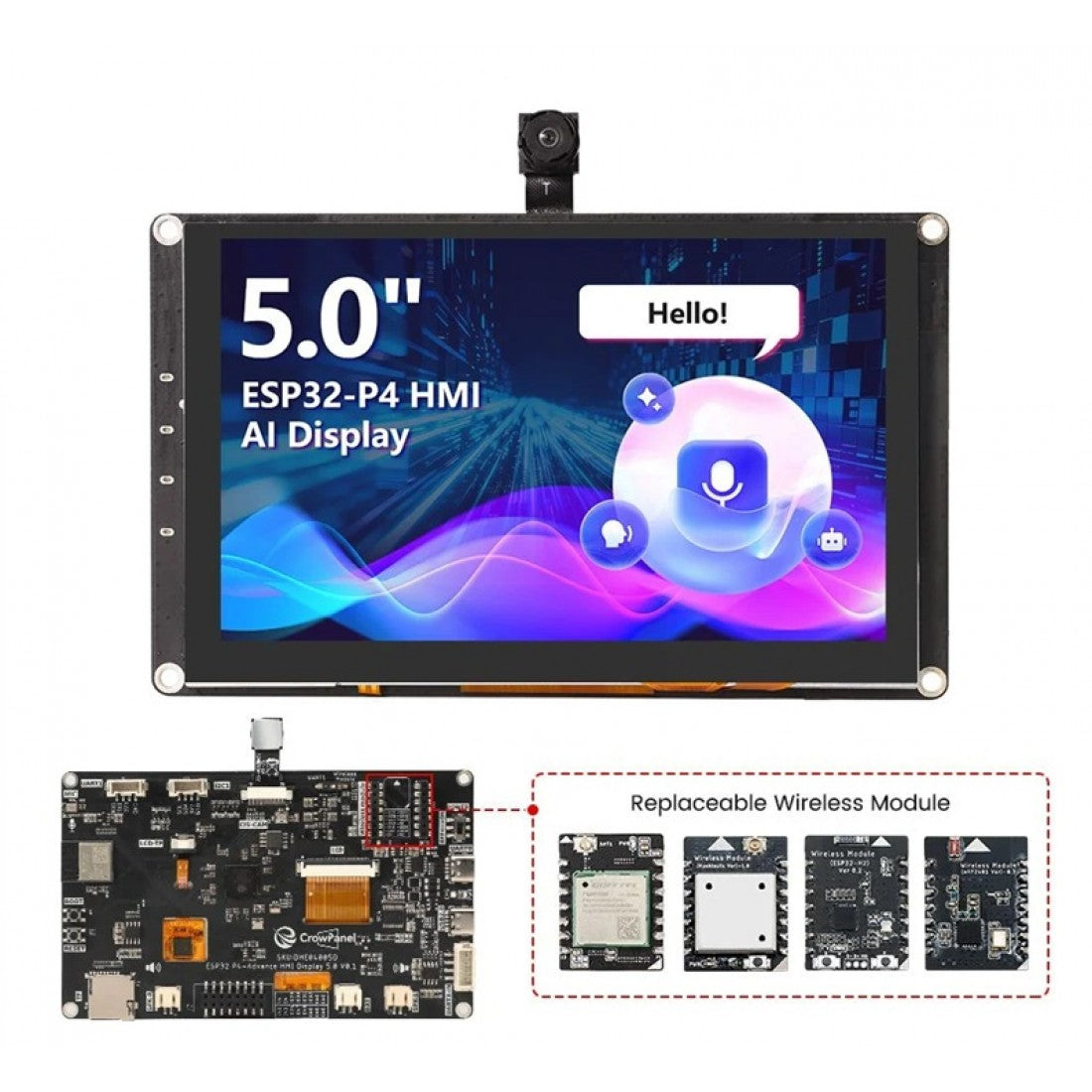

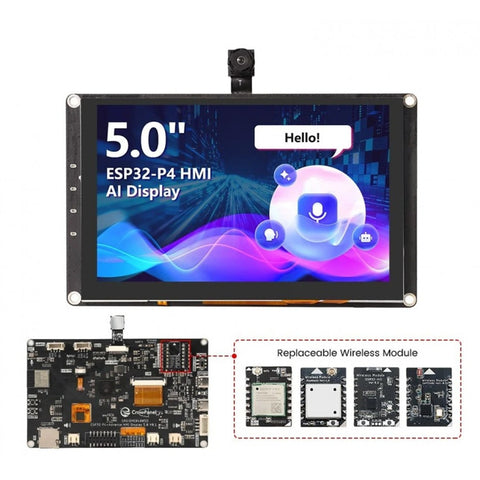

14. Replaceable wireless module interface supporting optional communication modules
15. Supports LVGL-based graphical user interfaces
16. Compatible with Arduino IDE and ESP-IDF development environments
17. Reset and boot controls for system operation and firmware programming
18. Mounting holes for enclosure and panel integration

Specifications:

Also check these new Elecrow Products for the best dispaly and products:

Package Includes:

1 × CrowPanel Advanced 5-Inch ESP32-P4 HMI AI Display (Without Camera)
1 × USB-A to USB Type-C Cable
1 × 4-Pin Crowtail/Grove Connection Cable
