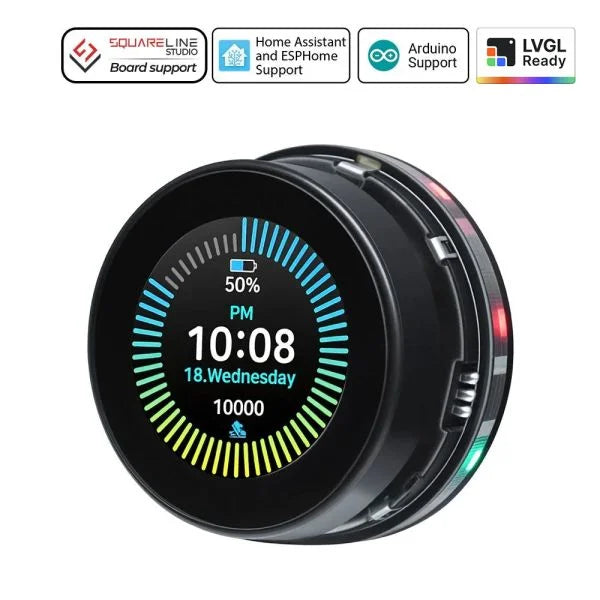

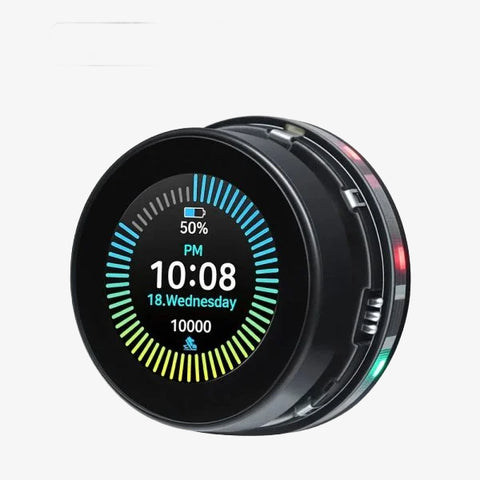

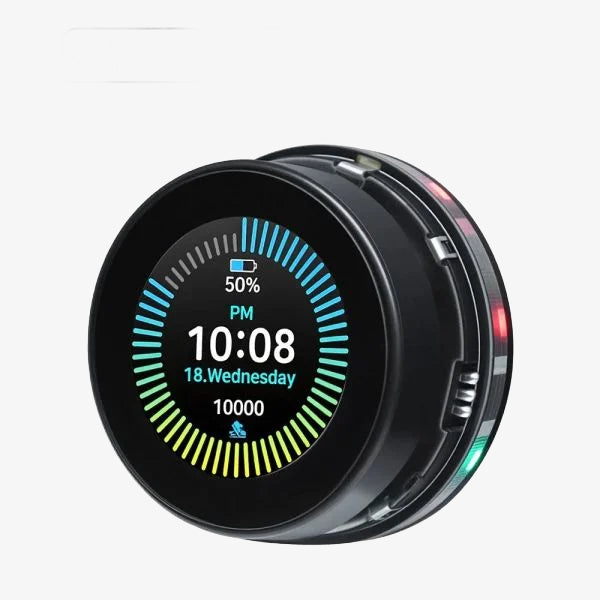

CrowPanel 1.46 inch-HMI ESP32 Rotary Display 360x360 IPS Round Touch Knob Screen Wifi/BLE
SKU:
MOD-QC6235
Availability:
3
In Stock
-
- Rs. 3,285.00
- Unit price
- per
Subtotal:
Rs. 3,285.00
Description
xCrowPanel 1.46 inch-HMI ESP32 Rotary Display 360x360 IPS Round Touch Knob Screen Wifi/BLE is a compact circular HMI development display based on the ESP32-S3R8 dual-core microcontroller. It features a 1.46-inch 360×360 IPS capacitive touchscreen combined with a rotary encoder that supports clockwise rotation, counter-clockwise rotation, and push-to-confirm operation. With 8MB PSRAM, 16MB Flash, 2.4GHz Wi-Fi, Bluetooth 5.0/BLE, UART, I2C, and FPC expansion interfaces, it is suitable for smart-home controls, portable devices, IoT projects, industrial interfaces, audio controls, and other embedded applications.
CrowPanel 1.46 inch-HMI ESP32 Rotary Display 360x360 IPS Round Touch Knob Screen Wifi/BLE Datasheet
Features:
- Compact 1.46-inch circular IPS display.
- 360 × 360 pixel high-resolution display.
- Capacitive touchscreen for intuitive touch control.
- Integrated rotary knob with clockwise and counter-clockwise rotation.
- Push-button function through the rotary knob.
- Powered by ESP32-S3R8 dual-core processor.
- Up to 240MHz processor frequency.
- 8MB PSRAM and 16MB Flash memory.
- 2.4GHz Wi-Fi connectivity.
- Bluetooth 5.0 and BLE support.
- Supports Arduino IDE and LVGL graphics library.

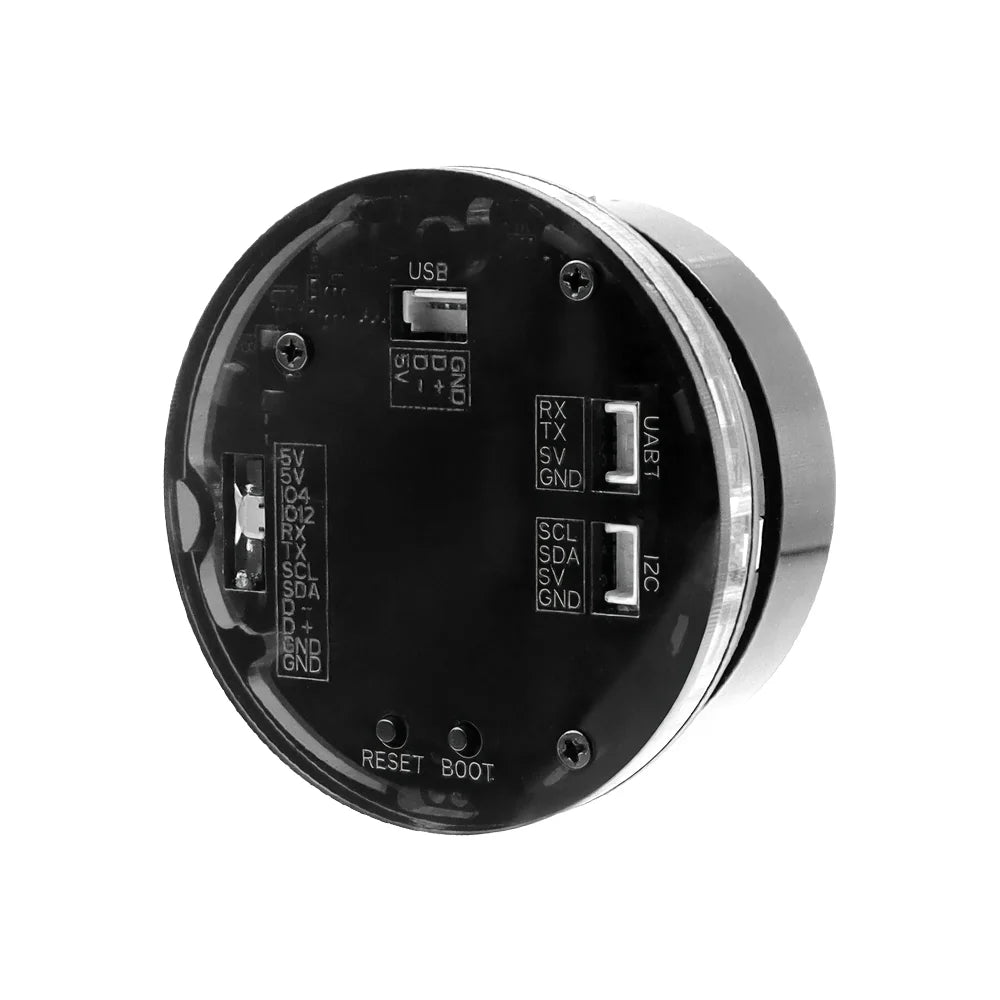

- UART and I2C expansion interfaces.
- 12-pin FPC expansion connector.
- 5V power and programming interface.
- Built-in ambient lighting.
- Low-power design for portable and battery-powered applications.
- RESET and BOOT buttons.
- Suitable for smart-home control panels, IoT, industrial control, portable devices, and DIY electronics.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | HMI Rotary Display |
| Brand | Elecrow |
| Product Series | CrowPanel |
| Model | DHR55146D |
| Main Chip | ESP32-S3R8 |
| CPU Architecture | Xtensa 32-bit LX7 Dual-Core |
| Maximum Frequency | 240MHz |
| SRAM | 512KB |
| PSRAM | 8MB |
| Flash Memory | 16MB |
| Display Size | 1.46 Inch |
| Display Shape | Round |
| Display Type | IPS |
| Resolution | 360 × 360 Pixels |
| Touch Type | Capacitive Touch |
| Display Driver | JD9855 |
| Brightness | Up to 400 nits |
| Rotary Encoder | Yes |
| Rotary Functions | Clockwise / Counter-Clockwise / Push |
| Wi-Fi | 2.4GHz 802.11 a/b/g/n |
| Bluetooth | Bluetooth 5.0 |
| Bluetooth LE | Yes |
| UART Interface | 1 × UART |
| I2C Interface | 1 × I2C |
| FPC Connector | 12-Pin, 0.5mm Pitch |
| Charging / Power Port | 5V |
| Input Power | 5V / 1A |
| RESET Button | Yes |
| BOOT Button | Yes |
| Confirmation Button | Rotary Knob Push Switch |
| Power Indicator | LED |
| Ambient Light | Built-In |
| Development Support | Arduino IDE, LVGL |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +80°C |
| Housing Material | Plastic + Acrylic |
| Dimensions | 60 × 60 × 27.5mm |
| Net Weight | Approx. 60g |
| Application | HMI, IoT, Smart Home, Industrial Control, Portable Devices |
Also Check These Products:-
Elecrow CrowPanel 7.0" HMI ESP32 Display 800×480 RGB TFT LCD
Elecrow 2.4inch ESP32 Solo Miner LCD Display Cryptocurrency
Elecrow 10.1 inch IPS 1280×800 Touchscreen Display Monitor
Elecrow CrowPanel ESP Terminal ESP32 3.5 inch 480×320 Parallel RGB Touch Display
Discover Elecrow products such as Arduino starter kits, ESP32 HMI displays, CrowPanel touch screens, and IoT development modules, ideal for electronics prototyping, automation, embedded systems, and smart device development

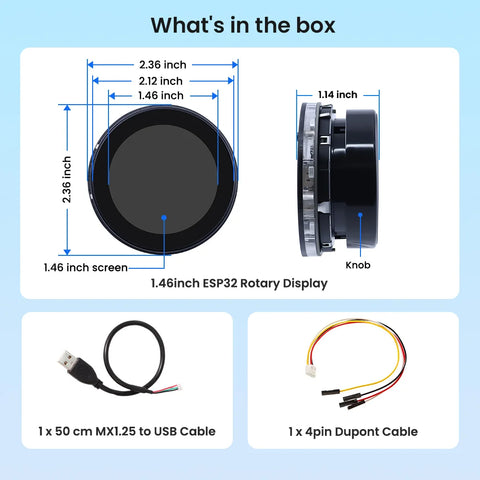

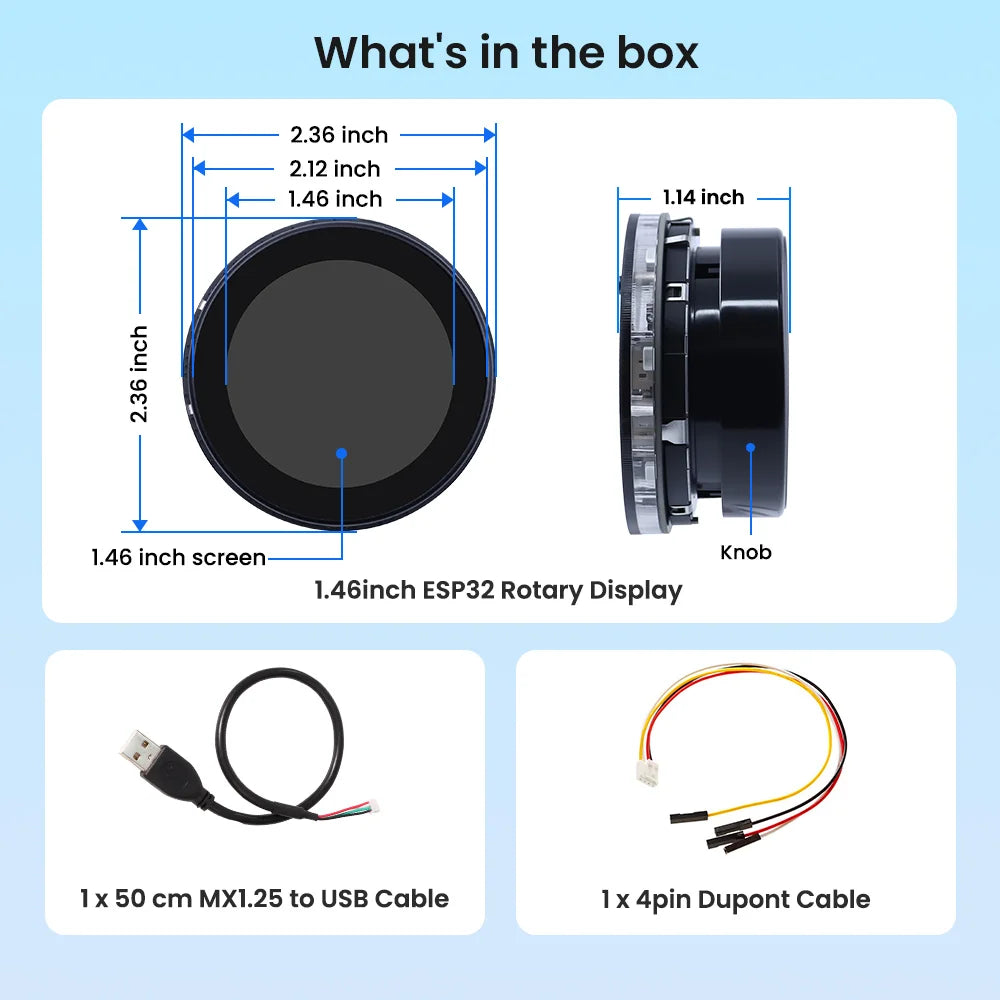

Package Includes:
1 x CrowPanel 1.46 inch-HMI ESP32 Rotary Display
1 x 50cm MS1.25 to USB Cable
1 x 4-Pin Dupont Cable
