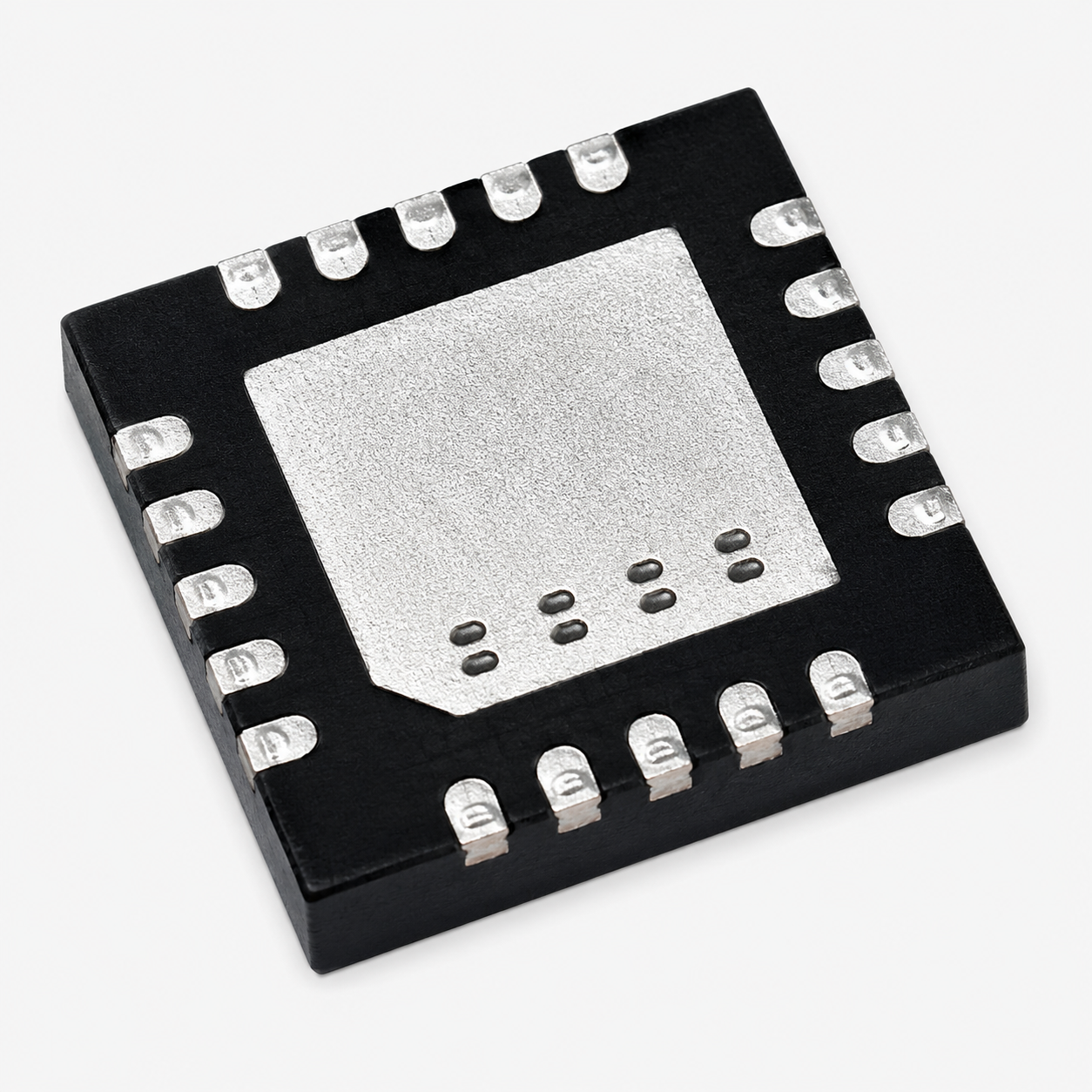

CP2102N Silicon Labs USB to UART Converter IC - QFN-20 Package
SKU:
SMD-QC5914
Availability:
50
In Stock
-
- Rs. 184.00
- Unit price
- per
Subtotal:
Rs. 184.00
Description
xCP2102N-A02-GQFN20R USB to UART USB 2.0 Converter IC - QFN-20 Package (RoHS) is a highly integrated USB-to-UART bridge controller that provides a simple and reliable interface between USB and UART devices. Designed for USB 2.0 Full-Speed communication, it eliminates the need for external USB components, crystals, and complex firmware development. Featuring data transfer rates up to 3 Mbaud, integrated USB transceiver, and royalty-free Virtual COM Port drivers, it is ideal for embedded systems, industrial automation, POS terminals, USB dongles, medical equipment, and data logging applications.
CP2102N USB to UART Converter IC - Datasheet
Features:
- USB 2.0 Full-Speed USB to UART Bridge
- No External Crystal Required
- Integrated USB Transceiver
- Supports Data Rates up to 3 Mbaud
- Integrated 48MHz Oscillator
- Built-in Voltage Regulator
- USB Battery Charger Detection Support
- Remote Wakeup Function
- 512-Byte TX & RX Buffers
- Supports Hardware & Software Flow Control
- Virtual COM Port Drivers for Windows, Linux & macOS
- RoHS Compliant
Specifications:
| Parameter | Value |
|---|---|
| Product Type | USB to UART Bridge IC |
| Part Number | CP2102N-A02-GQFN20R |
| USB Standard | USB 2.0 Full-Speed |
| Package | QFN-20 |
| Supply Voltage | 3.0V–5.25V |
| UART Baud Rate | 300bps–3Mbps |
| Oscillator | Internal 48MHz |
| TX Buffer | 512 Bytes |
| RX Buffer | 512 Bytes |
| Configuration Memory | 960 Bytes |
| GPIO | 4 |
| Operating Temperature | -40°C to +85°C |
| RoHS Compliance | Yes |
Pin Configuration:
| Pin | Function |
|---|---|
| 1 | VBUS |
| 2 | D+ |
| 3 | D- |
| 4 | GND |
| 5 | VREGIN |
| 6 | VDD |
| 7 | RSTb |
| 8 | TXD |
| 9 | RXD |
| 10–20 | UART Control, GPIO, VIO & Power Pins* |
Also Check These Out:
AN7112 Audio Power Amplifier IC
Package Includes:
1 x CP2102N A02 GQFN20R USB to UART USB 2.0 Converter IC - QFN-20 Package (RoHS)
