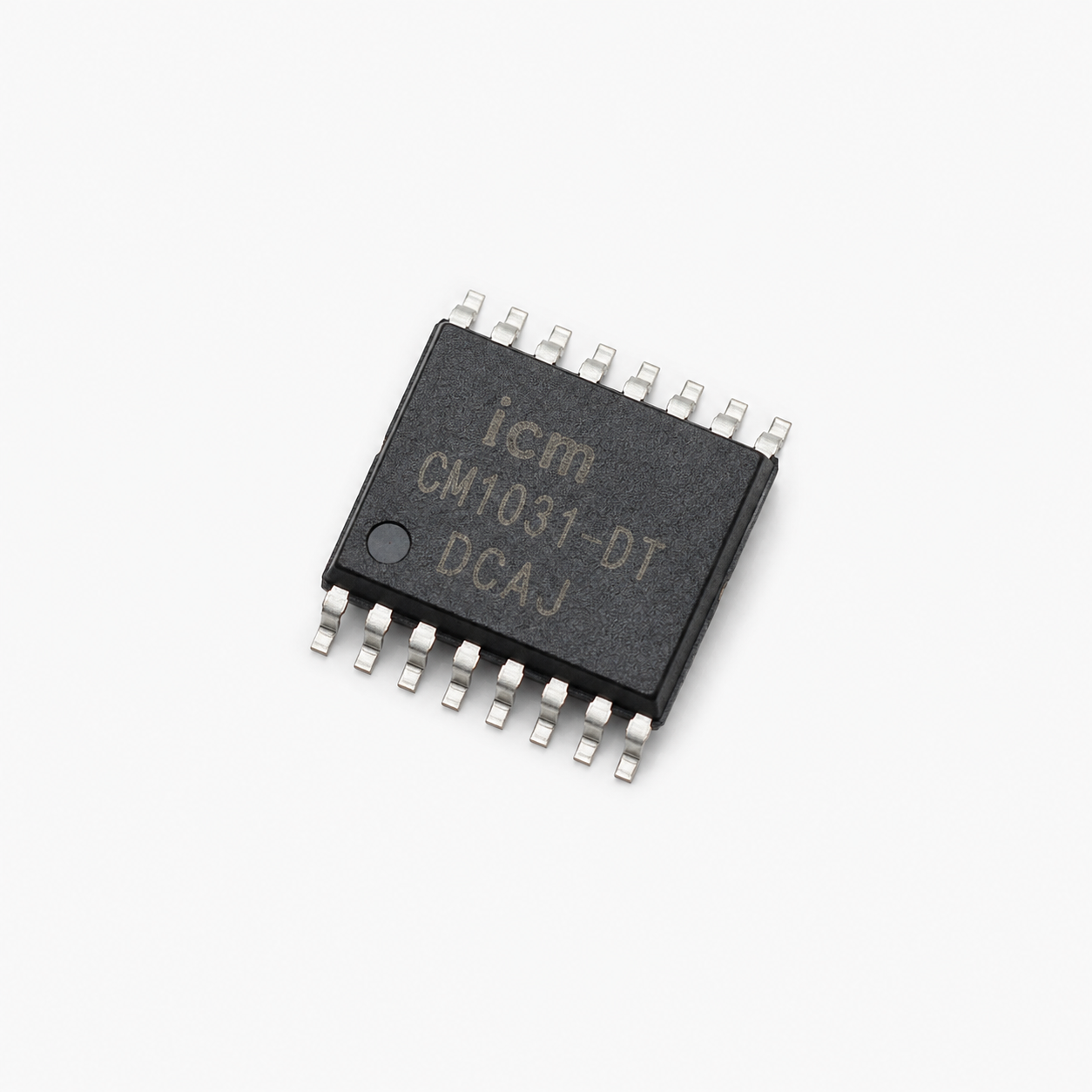

CM1031-DT 3-Series Lithium-Ion/Polymer Battery Protection IC - TSSOP-16 Package
SKU:
SMD-QC6048
Availability:
50
In Stock
-
- Rs. 72.00
- Unit price
- per
Subtotal:
Rs. 72.00
Description
xCM1031-DT 3-Series Lithium-Ion/Polymer Battery Protection IC - TSSOP-16 Package is a highly integrated battery protection IC designed for 3-cell (3S) lithium-ion and lithium-polymer battery packs. It provides accurate monitoring of each cell voltage and offers comprehensive protection against overcharge, over-discharge, overcurrent, short-circuit, and charging overcurrent conditions. Housed in a compact TSSOP-16 package, the IC is ideal for battery management systems (BMS), portable electronics, energy storage devices, power tools, and other rechargeable battery applications.
CM1031-DT 3-Series Lithium Battery Protection IC - TSSOP-16 Package Datasheet
Features:
- Designed for 3-series (3S) Li-ion/Li-polymer battery packs
- High-accuracy individual cell voltage monitoring
- Overcharge protection
- Over-discharge protection
- Charge overcurrent protection
- Discharge overcurrent protection
- Short-circuit protection
- Low standby current for extended battery life
- Automatic recovery after fault removal
- Built-in delay timing to prevent false triggering
- Compact TSSOP-16 package
- Suitable for Battery Management System (BMS) applications
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Battery Protection IC |
| Model | CM1031-DT |
| Battery Configuration | 3-Series (3S) Lithium-Ion / Lithium-Polymer |
| Package Type | TSSOP-16 |
| Cell Monitoring | Individual Cell Voltage Detection |
| Protection Functions | Overcharge, Over-discharge, Overcurrent, Charge Overcurrent, Short Circuit |
| Overcharge Detection | Supported |
| Over-discharge Detection | Supported |
| Overcurrent Detection | Supported |
| Short Circuit Protection | Supported |
| Operating Voltage | Suitable for 3S Li-ion/Li-Po Battery Packs |
| Standby Current | Low Power Consumption |
| Operating Temperature | -40°C to +85°C |
| Applications | Battery Management Systems, Power Banks, Portable Electronics, Energy Storage, Power Tools, Rechargeable Battery Packs |
| Mounting Type | Surface Mount (SMD) |
| Package | TSSOP-16 |
| Compliance | RoHS |
Pinout
| Pin | Name | Function |
|---|---|---|
| 1 | VCC | Battery pack positive (Cell 1 positive) |
| 2 | VC1 | Cell 1 positive sensing |
| 3 | VC2 | Cell 1− / Cell 2+ sensing |
| 4 | VC3 | Cell 2− / Cell 3+ sensing |
| 5 | NC | No Connection |
| 6 | NC | No Connection |
| 7 | VSS | Battery pack negative (Ground) |
| 8 | TOC | Overcharge delay capacitor |
| 9 | TOD | Over-discharge delay capacitor |
| 10 | TEC | Overcurrent delay capacitor |
| 11 | RTS | NTC temperature sensor input |
| 12 | RTV | Temperature threshold resistor |
| 13 | VINI | Current sense input |
| 14 | DO | Discharge MOSFET gate output |
| 15 | CO | Charge MOSFET gate output |
| 16 | VM | Charger/load detection & overcurrent monitor |
Also Check These Out:
CM1041-DT 4-Series Lithium-Ion/Polymer Battery Protection IC - TSSOP-16 Package
AN7112 Audio Power Amplifier IC
Package Includes:
1 x CM1031-DT 3-Series Lithium-Ion/Polymer Battery Protection IC - TSSOP-16 Package
Shipping & Return
xReturns Policy
Due to the type of products we sell, we accept limited returns. Below are the conditions where we can accept a return request.
1. Damaged During Shipment
If you receive a product damaged during shipment, please notify us within 3 days of receiving the product, supported by proper pictures and a description. Once our support team accepts the return, we will provide a replacement or a complete refund, including the return shipping cost.
2. Wrong Item Shipped
If your item looks different from what is shown in the image on our website, we will take the item back and provide a refund or replacement as per your choice.
Limitation of Returns
We don’t accept returns for products damaged due to improper use. Moreover, we don’t accept returns if the ordered product is not suitable for a specific application. Please read the product specifications and datasheet carefully before placing an order. Returns are accepted only within 3 days from the date of delivery.
Shipping
We ship all over India with free shipping on all prepaid orders above ₹500. For Cash on Delivery (COD) orders, ₹80 will be charged for orders below ₹599 and ₹30 for orders above ₹599.
For any questions related to shipping, please contact our support team at support@quartzcomponents.com.
Note: The minimum order value for COD orders is ₹500.
