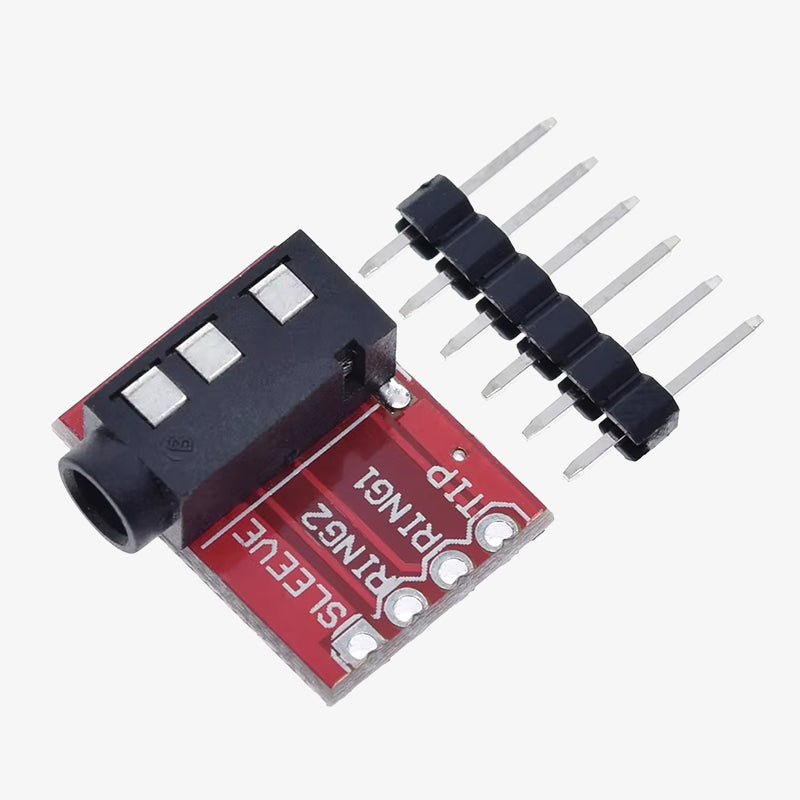

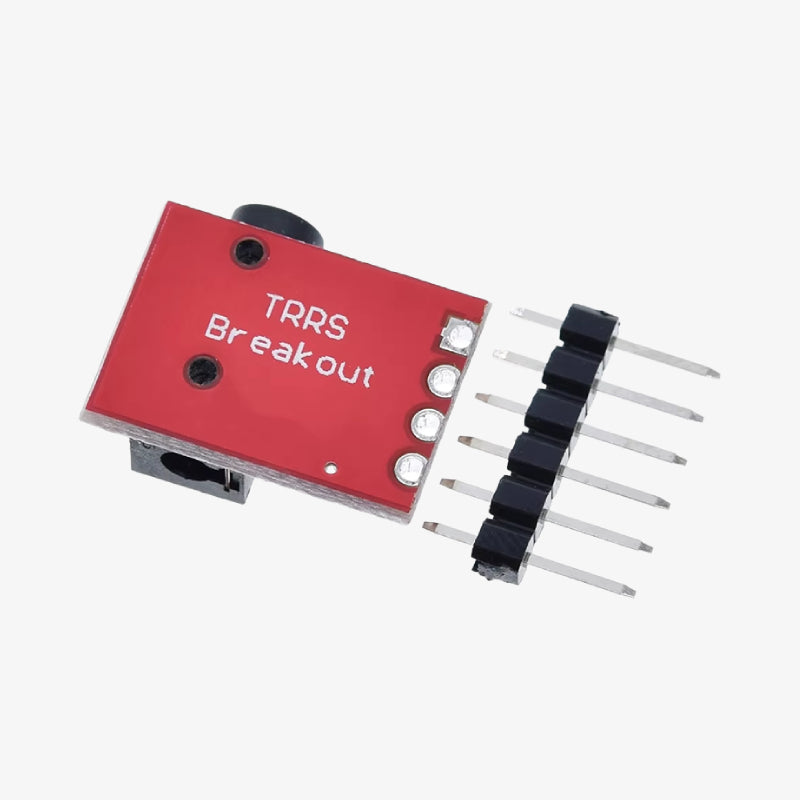

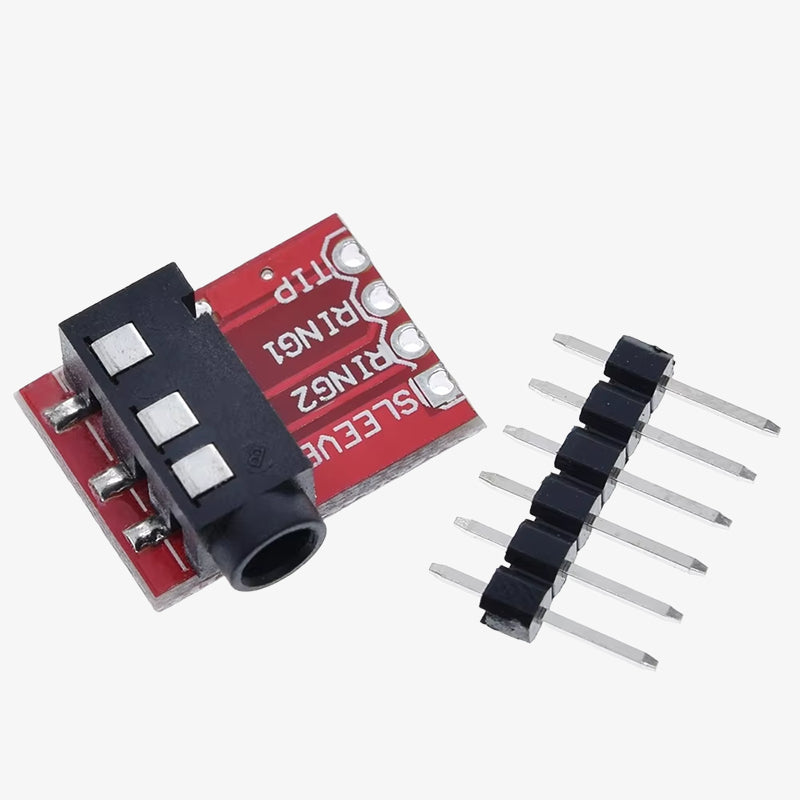

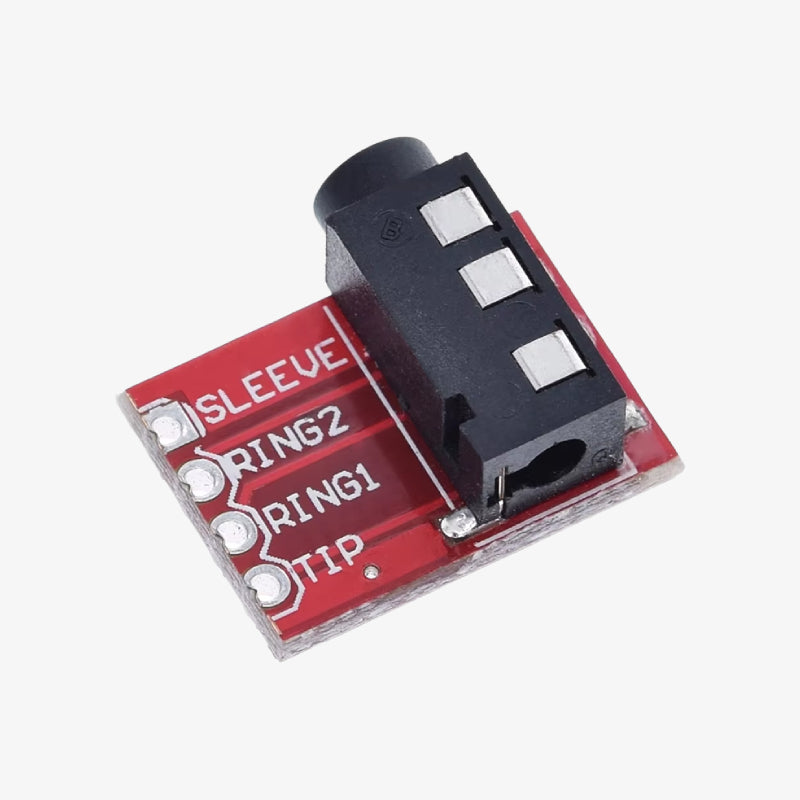

CJMCU-TRRS 3.5mm Jack AV Stereo Module
SKU:
MOD-QC3282
Availability:
108
In Stock
- Rs. 18.00
- Rs. 18.00
- Unit price
- per
Subtotal:
Rs. 18.00
Description
xThe CJMCU-TRRS 3.5mm Jack AV Stereo Module is a compact breakout board designed for audio interfacing via a 4-pole TRRS (Tip-Ring-Ring-Sleeve) connector. This module separates the signals into Left Audio, Right Audio, Microphone, and Ground, making it ideal for applications involving AV communication, audio playback, mobile headset jacks, and Raspberry Pi-based AV projects. Its compact form and easy-to-use pinout make it perfect for prototyping and DIY audio/video electronics.
Features of CJMCU-TRRS 3.5mm Jack AV Stereo Module:
- Breakout module for 4-pole 3.5mm TRRS jacks
- Access to Left Audio, Right Audio, Video/Mic, and Ground
- Compatible with audio and video applications, including Raspberry Pi and smartphones
- Simple, compact design for breadboard or PCB integration
- Great for stereo output and microphone or composite video input/output projects
Specifications of CJMCU-TRRS 3.5mm Jack AV Stereo Module:
- Connector Type: 3.5mm TRRS (Tip-Ring-Ring-Sleeve)
- Signal Outputs: Left Audio, Right Audio, Video/Mic, Ground
- Voltage Compatibility: 3.3V to 5V logic systems
- Mounting Type: Through-hole/Solderable pads
- Board Dimensions: Approx. 15mm x 15mm
- Ideal for: Audio-visual signal breakout, Raspberry Pi, Arduino, DIY audio projects
Package Includes:
1 × CJMCU-TRRS 3.5mm Jack AV Stereo Module
