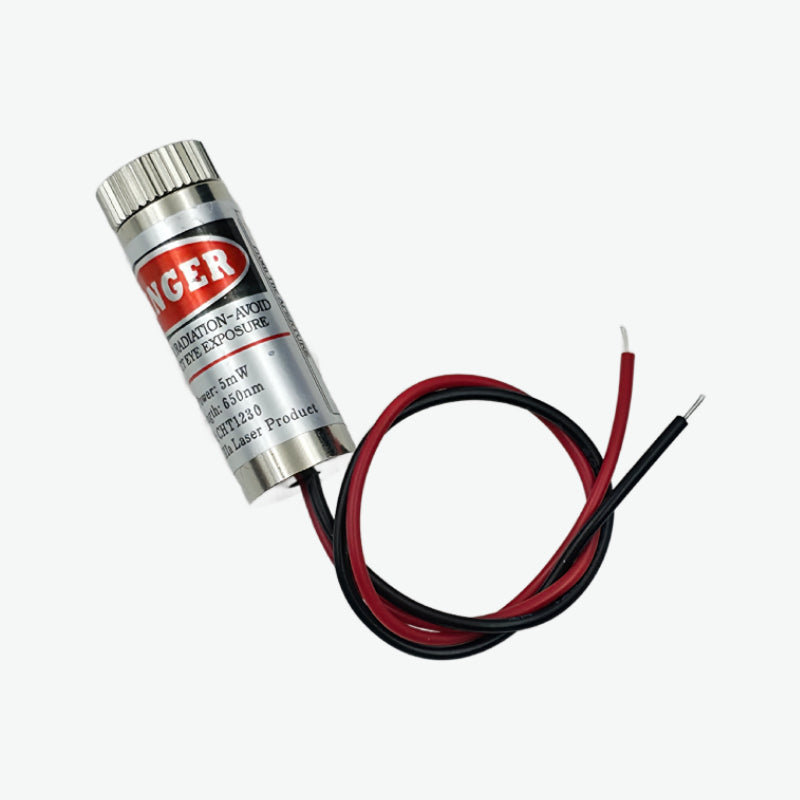

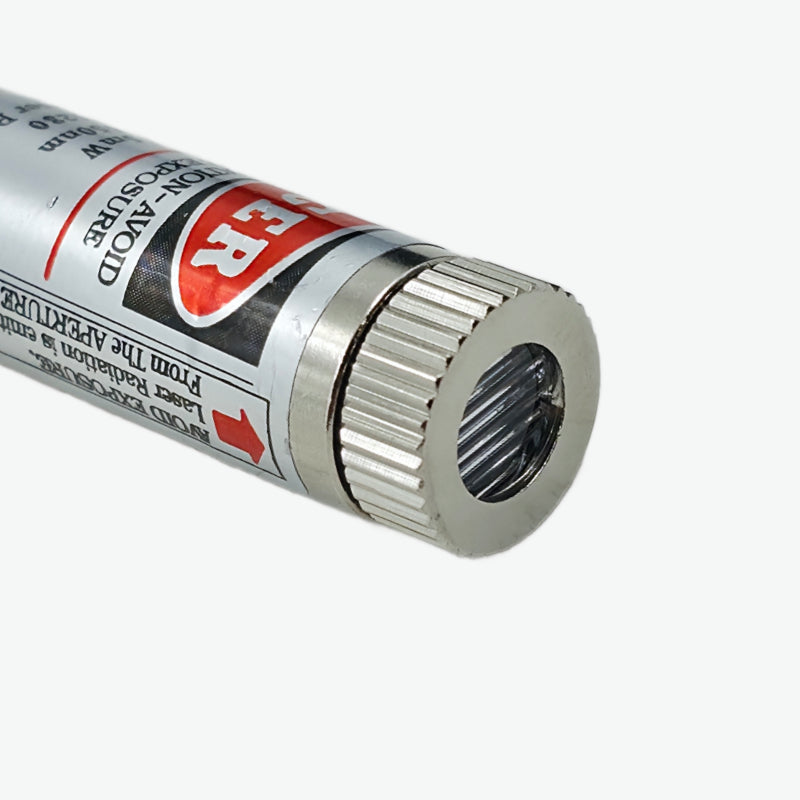

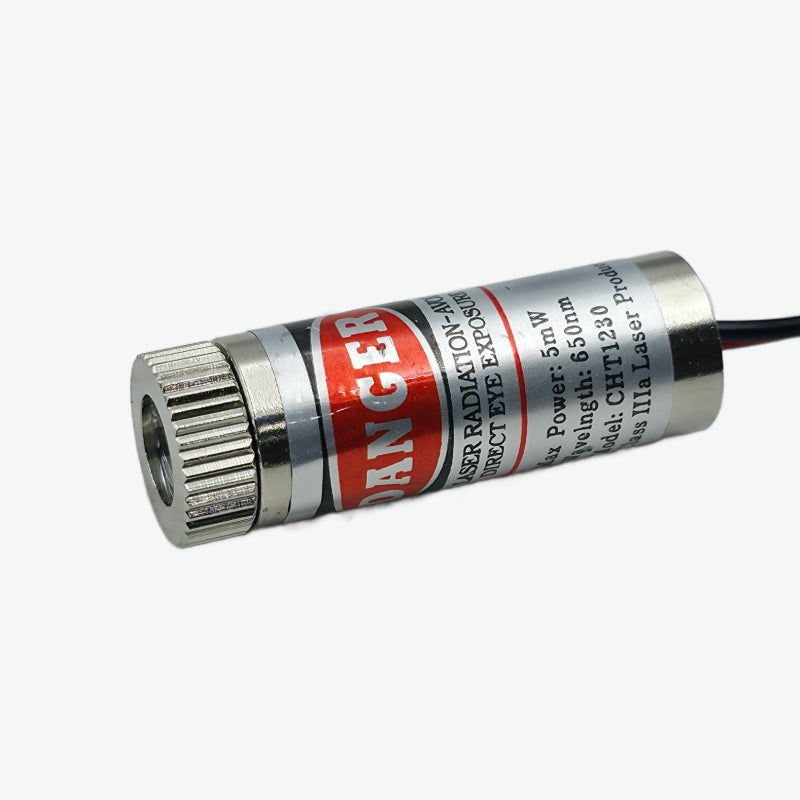

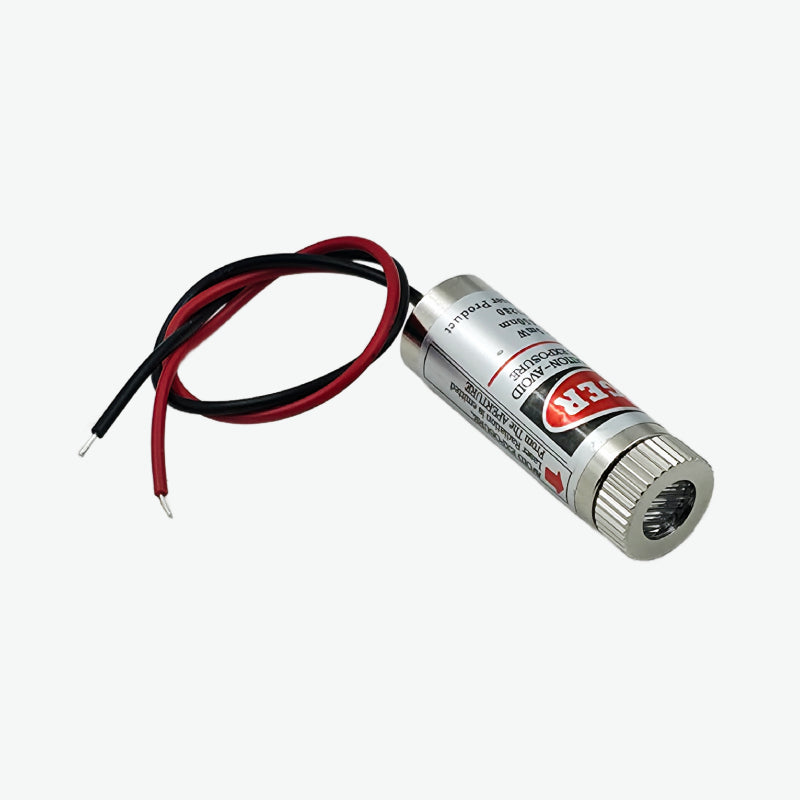

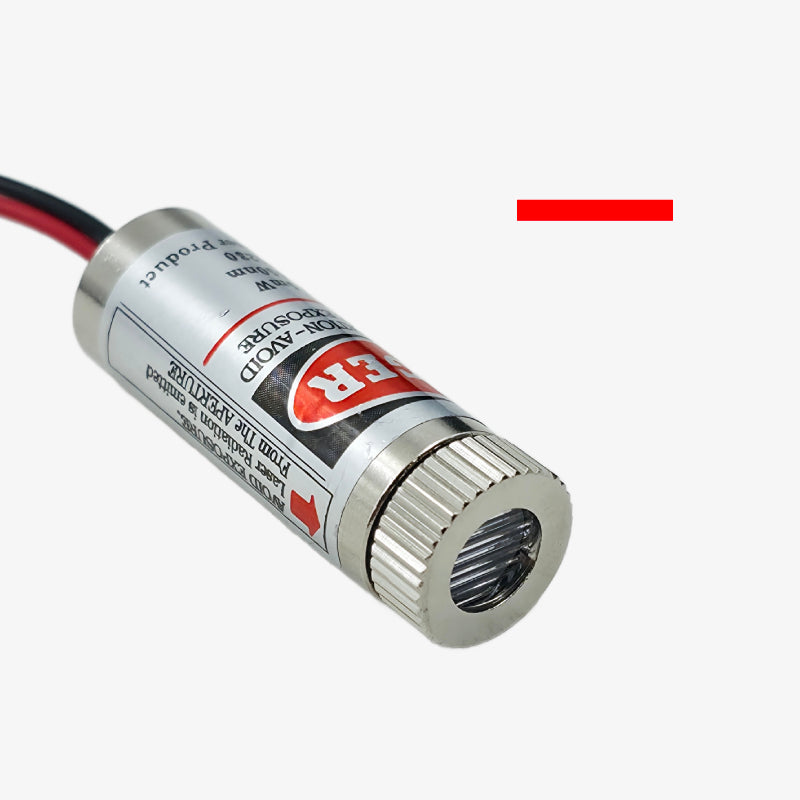

The CHT1230 is a 12mm 5mW red laser module designed for precise alignment, leveling, measurement, and industrial positioning applications. It emits a sharp 650nm red laser line, making it ideal for cross-cutting guides, CNC alignment, woodworking tools, and optical calibration systems. Operating on 3V–5V DC, it integrates easily with Arduino, Raspberry Pi, and other controllers for DIY and industrial projects. The adjustable line focus allows fine-tuning of the line thickness and clarity for different applications.
Features:
- Projects a bright, well-defined red line for alignment and positioning
- 12mm durable metal housing for stability and easy mounting
- Adjustable line focus for precise width and clarity control
- Operates on 3V–5V DC for easy integration with electronics
- Pre-wired leads for simple and fast connections
- Ideal for leveling tools, CNC alignment, guides, and DIY projects
- Stable performance with low power consumption
Specifications:
- Laser Wavelength: 650nm (Red)
- Output Power: 5mW
- Operating Voltage: 3V – 5V DC
- Operating Current: ≤40mA
- Lens Type: Optical glass lens
- Beam Shape: Line
- Housing Diameter: 12mm
- Adjustable Line Focus: Yes
- Operating Temperature: –10°C to 50°C
Package Includes:
1 × CHT1230 12mm 5mW Straight Line Laser Module with Adjustable Line Focus - Red
