DC Power Adapter (5V/3.1 Amps)
Sold Out

DC Power Adapter (5V/3.1 Amps) DC Power Adapter (5V/3.1 Amps)

QC0871

Out of stock

Rs. 110.00
(Excluding 18% GST)

Description:

This DC power adapter offers the Raspberry Pi a power supply of 5.0V @3.1A.  This is well within tolerance for Micro-USB, and it gives the best stability for most applications.

The recommended and easiest way to power the Raspberry Pi is s via the Micro USB port on the side of the unit. The recommended input voltage is 5V, and the recommended input current is 2A.

However, this DC power adapter offers 5.0V @3.1A. The reason for increasing the power slightly is to negate any voltage drop caused by excessive current draw.



Package Includes:

1 X DC Power Adapter (5V/3.1A)


Product Description for DC Power Adapter with micro USB Cable:

Product Description for DC Power Adapter with micro USB Cable



Technical Specifications:

  • Micro USB Connector
  • Short circuit, over-current, and over-voltage protection
  • 50,000 Hour MTBF
  • Output Voltage: 5.0V
  • Minimum Load Current: 0A; Nominal Load Current: 3.1A
  • Nominal Power: 15.5 W
  • Efficiency: 80.86%
  • Input Frequency: 47-63Hz
  • Input Voltage Range: 0-264VAC
  • Operating Temp: 0 °C to 40 °C
  • Storage Temp: 0 °C to 60 °C

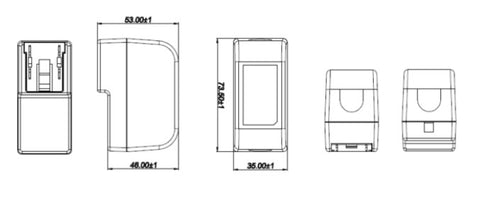

DC Power Adapter with micro USB Cable Dimensions and Footprint:

DC Power Adapter with micro USB Cable Dimensions and Footprint
DC Power Adapter with micro USB Cable Dimensions and Footprint



Additional Resources:

  • DC Power Adapter with micro USB Cable Dimensions datasheet

(https://www.farnell.com/datasheets/2372404.pdf )

(https://www.farnell.com/datasheets/2243408.pdf )

  • How do I power my Raspberry Pi

(https://thepihut.com/blogs/raspberry-pi-tutorials/how-do-i-power-my-raspberry-pi )

Description:

This DC power adapter offers the Raspberry Pi a power supply of 5.0V @3.1A.  This is well within tolerance for Micro-USB, and it gives the best stability for most applications.

The recommended and easiest way to power the Raspberry Pi is s via the Micro USB port on the side of the unit. The recommended input voltage is 5V, and the recommended input current is 2A.

However, this DC power adapter offers 5.0V @3.1A. The reason for increasing the power slightly is to negate any voltage drop caused by excessive current draw.



Package Includes:

1 X DC Power Adapter (5V/3.1A)


Product Description for DC Power Adapter with micro USB Cable:

Product Description for DC Power Adapter with micro USB Cable



Technical Specifications:

  • Micro USB Connector
  • Short circuit, over-current, and over-voltage protection
  • 50,000 Hour MTBF
  • Output Voltage: 5.0V
  • Minimum Load Current: 0A; Nominal Load Current: 3.1A
  • Nominal Power: 15.5 W
  • Efficiency: 80.86%
  • Input Frequency: 47-63Hz
  • Input Voltage Range: 0-264VAC
  • Operating Temp: 0 °C to 40 °C
  • Storage Temp: 0 °C to 60 °C


DC Power Adapter with micro USB Cable Dimensions and Footprint:

DC Power Adapter with micro USB Cable Dimensions and Footprint
DC Power Adapter with micro USB Cable Dimensions and Footprint



Additional Resources:

  • DC Power Adapter with micro USB Cable Dimensions datasheet

(https://www.farnell.com/datasheets/2372404.pdf )

(https://www.farnell.com/datasheets/2243408.pdf )

  • How do I power my Raspberry Pi

(https://thepihut.com/blogs/raspberry-pi-tutorials/how-do-i-power-my-raspberry-pi )
