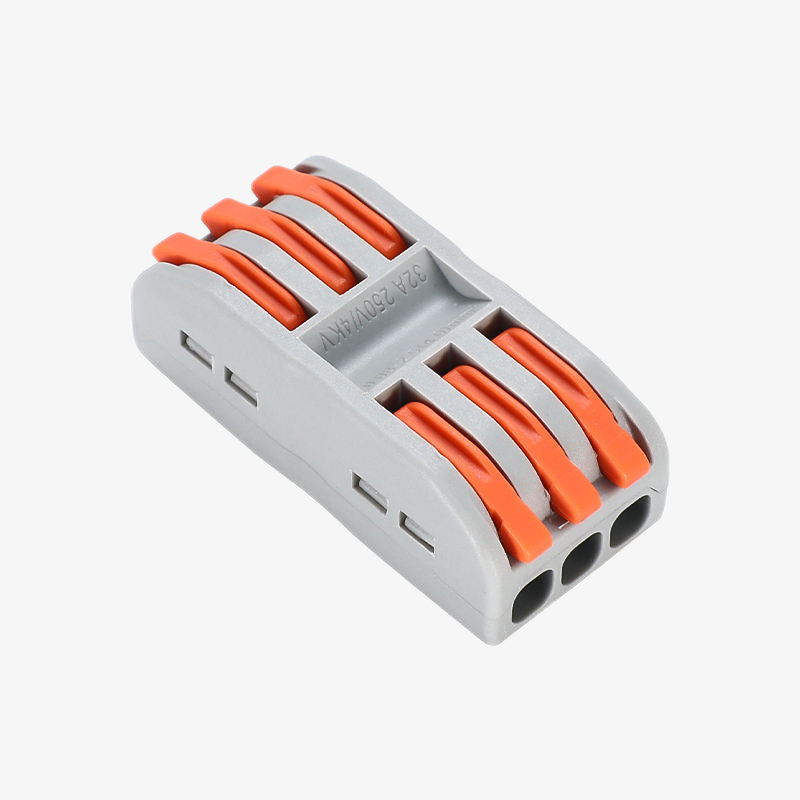

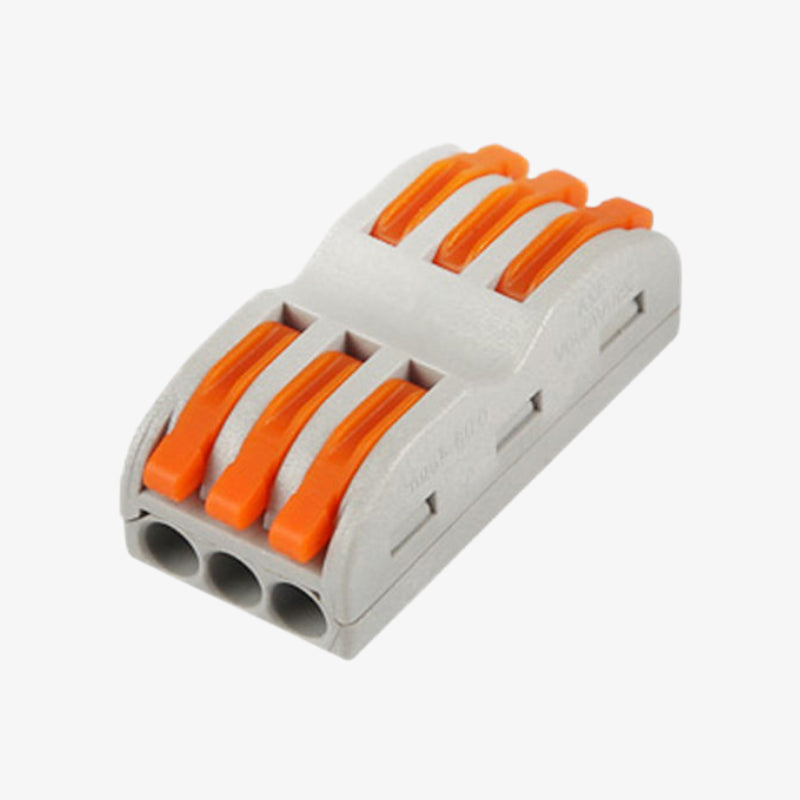

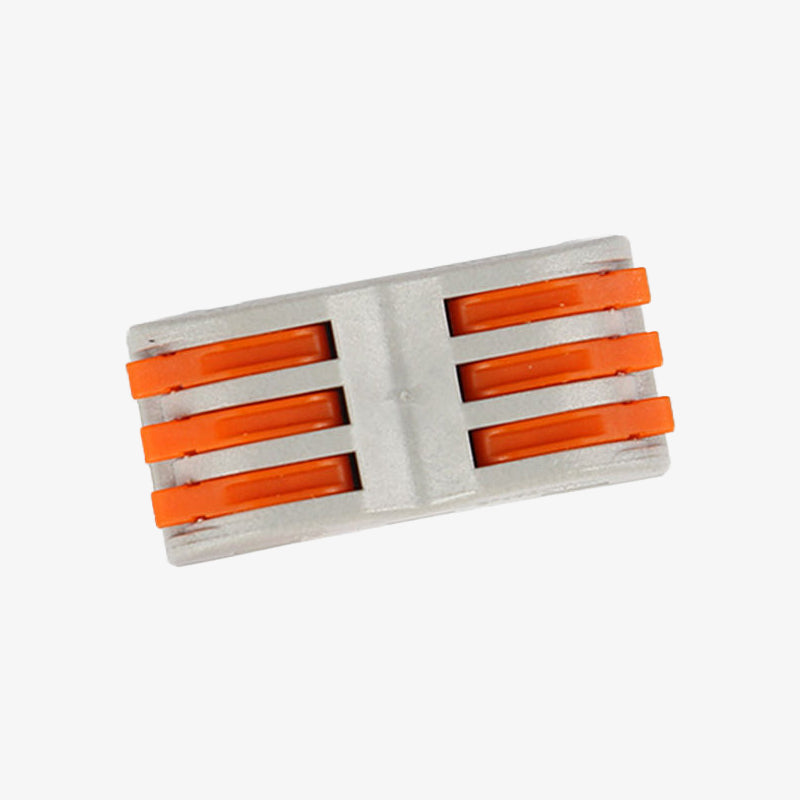

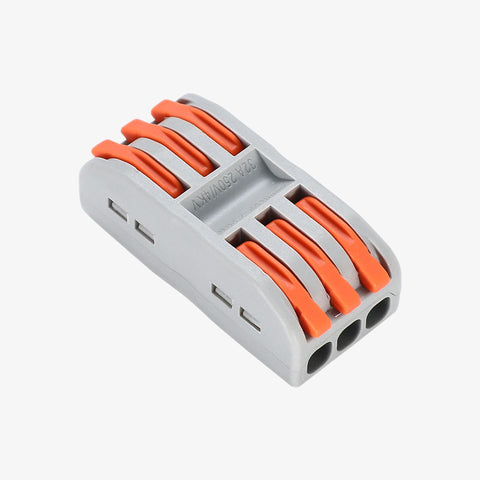

CH-813 0.08–2.5mm² SPL-3 Pole Wire Connector with Spring Lock Lever for 3-Wire Line Connection - 220V, 32A

The CH-813 SPL-3 Pole Wire Connector is a reliable and reusable spring-lever terminal block designed for fast, tool-free wiring of three conductors. It supports solid and stranded wires from 0.08mm² to 2.5mm², making it ideal for residential, industrial, and control panel applications.

The spring lock lever design ensures a secure grip and stable connection without the need for twisting or soldering. With a rated current of 32A and a voltage rating of 220V, this 3-pole connector is perfect for branching out wiring circuits, lighting fixtures, or powering multiple devices from a common source.

Features of CH-813 SPL-3 Pole Wire Connector:

1. Tool-free spring lever mechanism for fast and safe wiring
2. Accommodates solid, stranded, and flexible wires (0.08–2.5mm²)
3. Compact and durable flame-retardant housing
4. Supports up to 3 wires for branching or parallel wiring
5. Transparent casing allows easy inspection of wire placement
6. Vibration-proof and corrosion-resistant terminals
7. Ideal for junction boxes, lighting systems, and automation panels

Specifications of CH-813 SPL-3 Wire Connector:

• Model: CH-813 SPL-3
• Type: 3-Pole Wire Connector
• Connection Method: Spring Lock Lever
• Rated Voltage: 220V AC
• Rated Current: 32A
• Supported Wire Size: 0.08mm² – 2.5mm² (28–14 AWG)
• Material: Flame-retardant Polycarbonate (PC)
• Operating Temperature: -40°C to +85°C
• Color: Transparent with orange levers
• Application: Electrical branching, lighting, household wiring, etc.

Package Includes:

1 × CH-813 SPL-3 Pole Wire Connector with Spring Lock Lever – 220V, 32A
