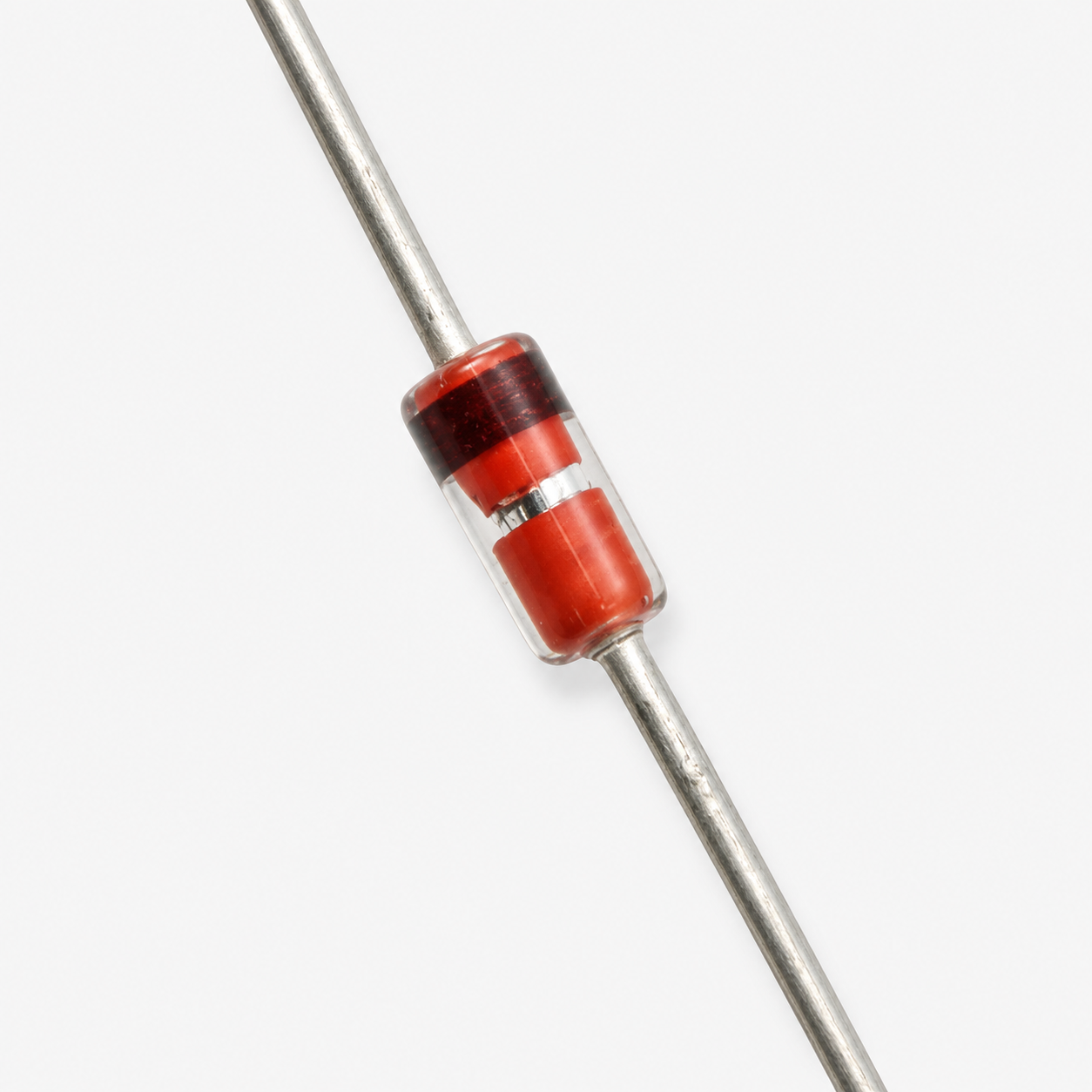

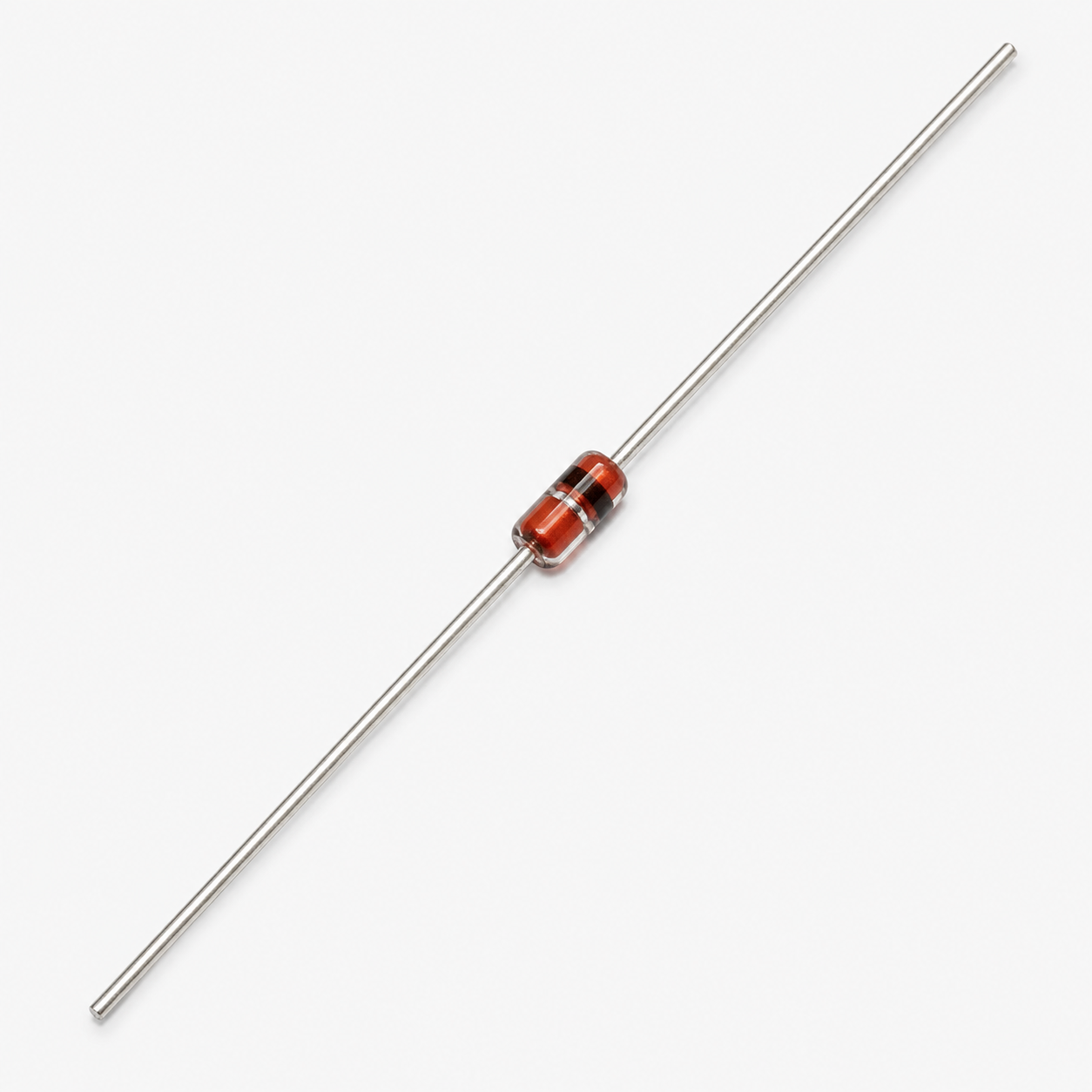

CDIL BZX55C3V6 3.6 Zener Diodes
SKU:
CMP-QC6018
Availability:
5000
In Stock
-
- Rs. 2.00
- Unit price
- per
Subtotal:
Rs. 2.00
Description
xCDIL BZX55C3V6 3.6V Zener Diode is a silicon planar Zener diode designed for voltage regulation, reference voltage generation, and overvoltage protection in electronic circuits. With a nominal Zener voltage of 3.6V and 500mW power dissipation, it is ideal for power supplies, signal conditioning, embedded systems, industrial electronics, and general-purpose voltage stabilization.
Features:
- 3.6V Nominal Zener Voltage
- 500mW Power Dissipation
- ±5% Voltage Tolerance
- Low Reverse Leakage Current
- Fast Switching Response
- Excellent Voltage Regulation
- High Reliability
- Silicon Planar Construction
- DO-35 Glass Axial Package
- RoHS Compliant
- Suitable for Voltage Regulation, Clamping, and Protection Circuits
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Zener Diode |
| Brand | CDIL |
| Model | BZX55C3V6 |
| Nominal Zener Voltage (Vz) | 3.6V |
| Power Dissipation | 500mW (0.5W) |
| Voltage Tolerance | ±5% |
| Test Current (IZT) | 5mA |
| Maximum Zener Impedance (ZZT) | 85Ω |
| Reverse Leakage Current (IR) | 2µA Max @ 1V |
| Forward Voltage (VF) | 1.5V Max @ 200mA |
| Package Type | DO-35 |
| Mounting Type | Through Hole (THT) |
| Operating Junction Temperature | -65°C to +175°C |
| Compliance | RoHS |
Also Check These Out:
Package Includes:
1 x CDIL BZX55C3V6 3.6V Zener Diode
