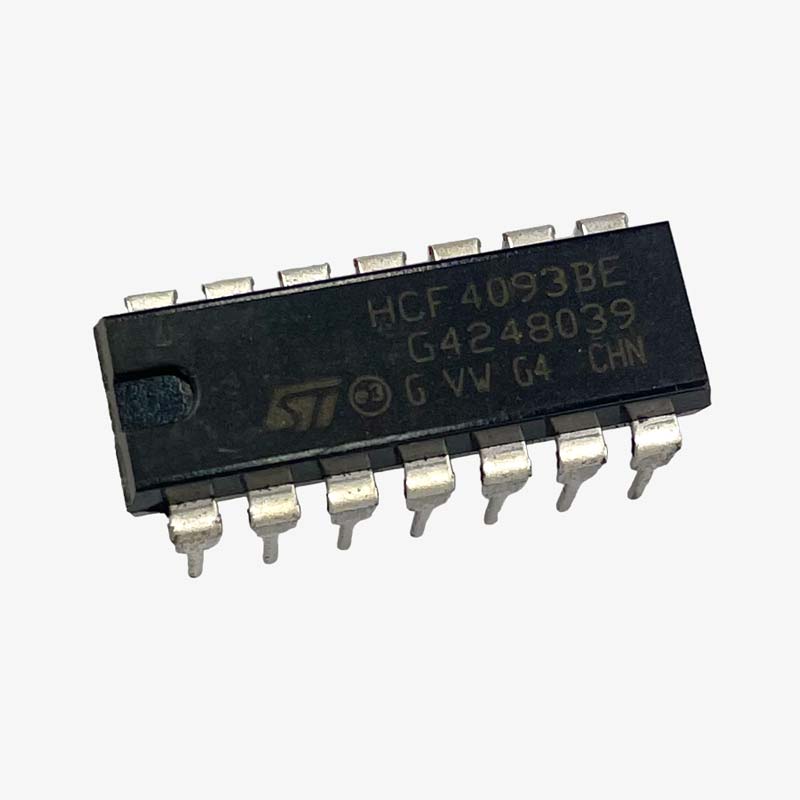

CD4093 - Quad 2-Input NAND Schmitt Trigger IC CD4093 - Quad 2-Input NAND Schmitt Trigger IC

QC0110

14 In stock

Rs. 18.00
(Excluding 18% GST)
-
+
Rs. 21.24
(inc. GST)
[Delivery: 2 to 5 days]

The CD4070 IC contains four independent 2-input NAND gate with Schmitt trigger action on both inputs inside a single package. It is often times referred to as a quad package 2-Input NAND gate Schmitt Trigger ICThe CD4093 IC is normally operated on 5V, 10V, and 15V with a maximum input current of 1uA when operating at 18V. The IC provides high immunity against noisy inputs due to the Schmitt trigger. It is commonly used to provide NAND logic, monostable and astable multivibrators, and Wave and pulse shapers.



Product Description of the CD4093 - Quad 2-Input NAND Schmitt Trigger IC

CD4093



PIN DESCRIPTION

Schmitt-Trigger-IC



Features of CD4093 - Quad 2-Input NAND Schmitt Trigger IC

  • Schmitt-trigger action on each input with no external components
  • High Input Voltage up to 20V
  • Noise immunity greater than 50%
  • No limit on input rise and fall time
  • Symmetrical Sink & Source Currents
  • Drives x2 Low-Power TTL loads or x1 LSTTL load
  • Maximum Current of 1uA at 18V
  • Operating Temperature Range: -55 to 125 °C


Additional Resources

CD4093 - Quad 2-Input NAND Schmitt Trigger IC datasheet

Package Contents

1× CD4093 - Quad 2-Input NAND Schmitt Trigger IC

The CD4070 IC contains four independent 2-input NAND gate with Schmitt trigger action on both inputs inside a single package. It is often times referred to as a quad package 2-Input NAND gate Schmitt Trigger ICThe CD4093 IC is normally operated on 5V, 10V, and 15V with a maximum input current of 1uA when operating at 18V. The IC provides high immunity against noisy inputs due to the Schmitt trigger. It is commonly used to provide NAND logic, monostable and astable multivibrators, and Wave and pulse shapers.



Product Description of the CD4093 - Quad 2-Input NAND Schmitt Trigger IC

CD4093



PIN DESCRIPTION

Schmitt-Trigger-IC



Features of CD4093 - Quad 2-Input NAND Schmitt Trigger IC

  • Schmitt-trigger action on each input with no external components
  • High Input Voltage up to 20V
  • Noise immunity greater than 50%
  • No limit on input rise and fall time
  • Symmetrical Sink & Source Currents
  • Drives x2 Low-Power TTL loads or x1 LSTTL load
  • Maximum Current of 1uA at 18V
  • Operating Temperature Range: -55 to 125 °C


Additional Resources

CD4093 - Quad 2-Input NAND Schmitt Trigger IC datasheet

Package Contents

1× CD4093 - Quad 2-Input NAND Schmitt Trigger IC
