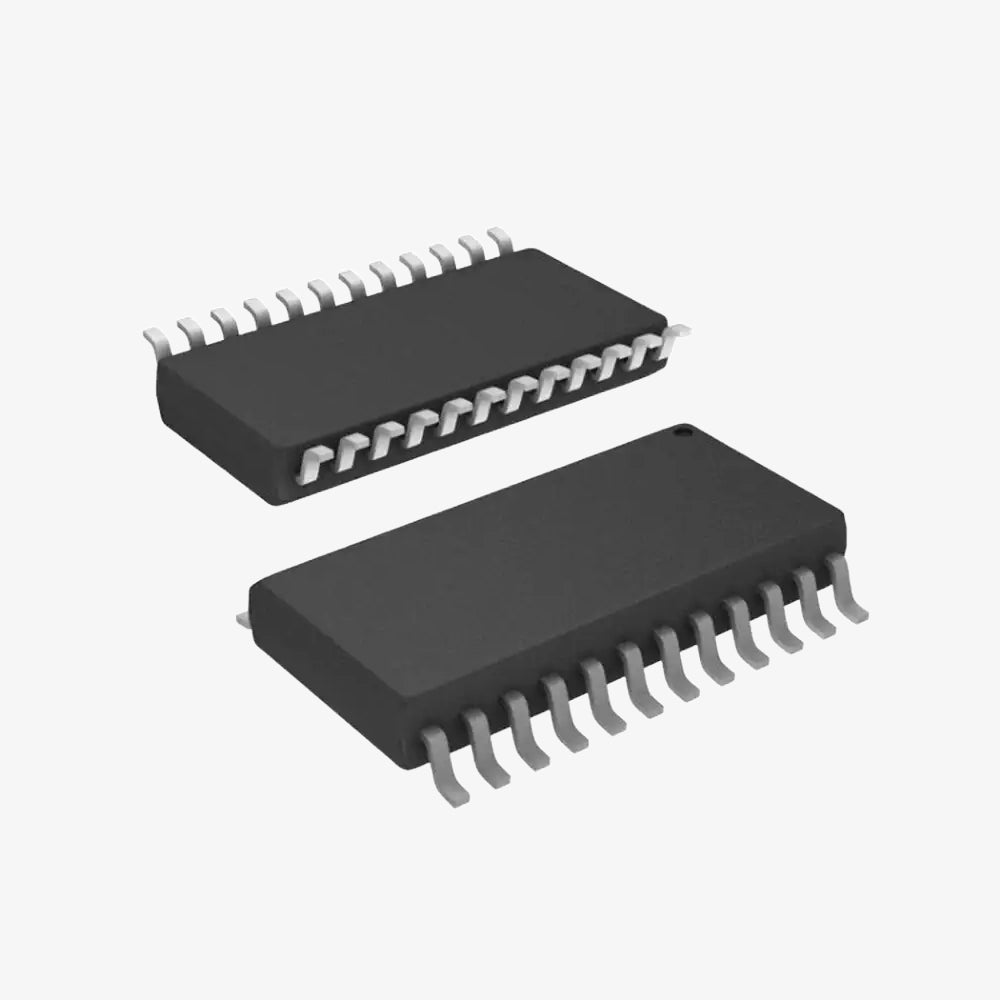

CD4067 IC - 16-Channel Analog Multiplexer/Demultiplexer IC - SOIC-24 SMD Package

The CD4067 IC is a versatile and high-performance 16-channel analog multiplexer/demultiplexer integrated circuit, offered in a 24-pin Small Outline Integrated Circuit (SOIC-24) Surface-Mount Device (SMD) package. It is designed to route analog signals to a single output or from a single input to multiple outputs, making it ideal for a wide range of analog switching applications.

Key Features:

• 16-Channel Multiplexer/Demultiplexer: Provides 16 separate channels for flexible analog signal routing.
• Low ON Resistance: Ensures minimal signal distortion and high signal integrity.
• Wide Supply Voltage Range: Operates efficiently over a voltage range from 3V to 18V, making it suitable for various applications.
• Low Crosstalk: Minimizes interference between channels, ensuring clear signal transmission.
• High-Speed Operation: Capable of switching at high speeds, suitable for both static and dynamic signal applications.
• Analog and Digital Signal Compatibility: Can handle both analog and digital signals, providing versatile functionality.
• SOIC-24 Package: Compact and efficient for high-density circuit designs, suitable for surface-mount technology (SMT) assembly processes.
• Latch-up Free: Designed to prevent latch-up, enhancing reliability and robustness in various operating conditions.

Technical Specifications:

• Channels: 16
• Operating Voltage: 3V to 18V
• On Resistance: Low (typically 100Ω)
• Crosstalk: -40dB (typical)
• Switching Speed: Fast (Propagation delay: typically 25ns)
• Package Type: SOIC-24 (Small Outline Integrated Circuit)
• Package Size: Compact for high-density PCB designs

Package Information:

• Package Type: SOIC-24 SMD
• Pin Count: 24
• Dimensions: Standard SOIC-24 dimensions suitable for automated assembly processes
