CD4060 - 14-stage Ripple Carry Binary Counter IC CD4060 - 14-stage Ripple Carry Binary Counter IC

QC0105

25 In stock

Rs. 21.00
-
+
Rs. 21.00
(inc. GST)
[Delivery: 2 to 5 days]

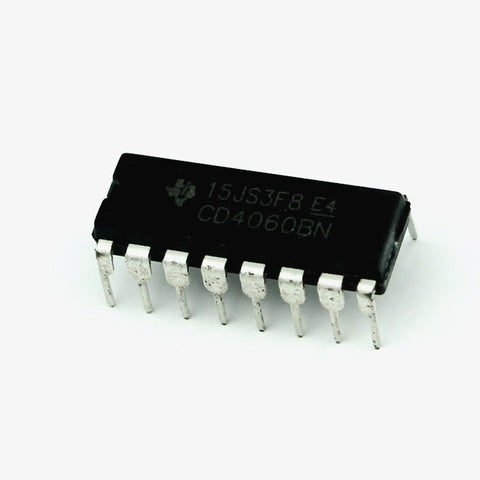

CD4060 IC is a 14-stage Binary Counter with carry option, that is it counts numbers by incrementing it by one for every clock pulse supplied to its clock pin. It has 12 output pins ranging from Q1 to Q14 excluding Q2 and Q3. When an input clock signal is applied on these pins the binary value gets increased the maximum it can go is 11111111111111 which corresponds to 16383 in decimal. You just need to power the device through Vss and GND pins with a suitable power supply in range 3 to 18V, the most important step is to set the clock frequency with external resistor R1 and external Capacitor C1. The formula to set the clock frequency is given is F= 1 / (2.5*R1*C1). Where the unit of F is Hz, R and C is ohms and farads respectively.



Specifications

  • 14-bit Binary Counter/Divider
  • Counting range: 0 to 16383 (In decimal)
  • Operating Voltage: 3V to 18V
  • Nominal Voltage: 5V, 10V, 15V
  • Maximum Clock Frequency: 30MHz at 15V
  • Available in 16 pin PDIP package



Product Description

CD4060-14-stage-Ripple-Carry-Binary-Counter-IC



Additional Resources

CD 4060 Datasheet

Package Contents

1× CD4060 - 14-stage Ripple Carry Binary Counter IC

CD4060 IC is a 14-stage Binary Counter with carry option, that is it counts numbers by incrementing it by one for every clock pulse supplied to its clock pin. It has 12 output pins ranging from Q1 to Q14 excluding Q2 and Q3. When an input clock signal is applied on these pins the binary value gets increased the maximum it can go is 11111111111111 which corresponds to 16383 in decimal. You just need to power the device through Vss and GND pins with a suitable power supply in range 3 to 18V, the most important step is to set the clock frequency with external resistor R1 and external Capacitor C1. The formula to set the clock frequency is given is F= 1 / (2.5*R1*C1). Where the unit of F is Hz, R and C is ohms and farads respectively.



Specifications

  • 14-bit Binary Counter/Divider
  • Counting range: 0 to 16383 (In decimal)
  • Operating Voltage: 3V to 18V
  • Nominal Voltage: 5V, 10V, 15V
  • Maximum Clock Frequency: 30MHz at 15V
  • Available in 16 pin PDIP package



Product Description

CD4060-14-stage-Ripple-Carry-Binary-Counter-IC



Additional Resources

CD 4060 Datasheet

Package Contents

1× CD4060 - 14-stage Ripple Carry Binary Counter IC
