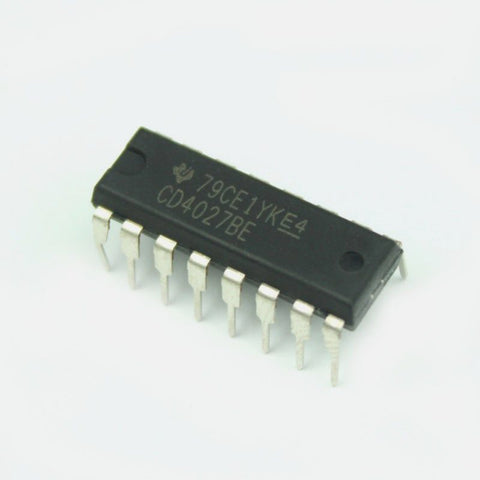

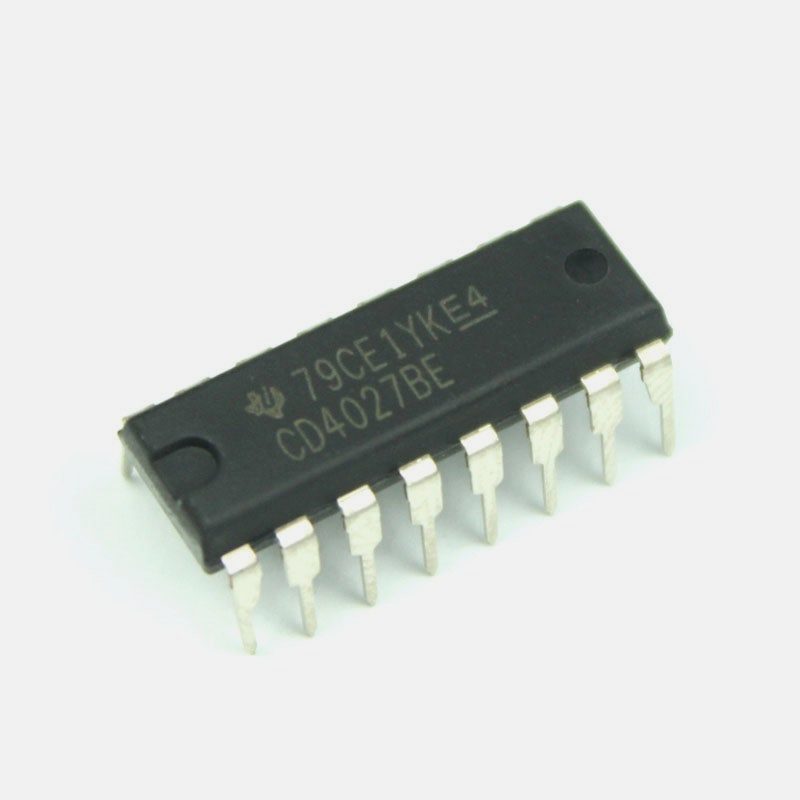

CD4027 Dual JK Flip Flop IC CD4027 Dual JK Flip Flop IC

QC0068

23 In stock

Rs. 25.00
-
+
Rs. 25.00
(inc. GST)
[Delivery: 2 to 5 days]

The CD4027 is a Dual JK Flip Flop CMOS IC. It consist of two identical complementary-symmetry J-K master/slave flip-flops. Each flip-flop has its individual J, K, Set Reset, Clock input signals and buffered Q and Q signals are provided as outputs. The IC has an operating Voltage range from 3.0V to 15V and consumes about 50nW typically. Application areas include EEPROM circuits as a memory element, or to building a shift register or latching circuits.



Product Description of CD4027 -Dual JK Flip Flop IC

CD4027-Dual-JK-Flip-Flop



                                     PIN DESCRIPTION

 CD4027



Features of CD4027 -Dual JK Flip Flop IC

  • Wide supply voltage range: 3.0V to 15V
  • Low power: 50nW (typ.)
  • Medium speed operation: 12 MHz (typ.) with 10V supply
  • Set-Reset Capability
  • Static Flip-Flop Operation - Retains State Indefinitely with Clock Level Either “High” or “Low”
  • Maximum Input Current of 1µA at 18V
  • Operating Temperature : -55 to 125 °C
  • Lead Temperature (Soldering): 265° C


Additional Resources

CD4027 -Dual JK Flip Flop IC datasheet

Package Contents

1× CD4027 Dual JK Flip Flop IC

The CD4027 is a Dual JK Flip Flop CMOS IC. It consist of two identical complementary-symmetry J-K master/slave flip-flops. Each flip-flop has its individual J, K, Set Reset, Clock input signals and buffered Q and Q signals are provided as outputs. The IC has an operating Voltage range from 3.0V to 15V and consumes about 50nW typically. Application areas include EEPROM circuits as a memory element, or to building a shift register or latching circuits.



Product Description of CD4027 -Dual JK Flip Flop IC

CD4027-Dual-JK-Flip-Flop



                                     PIN DESCRIPTION

 CD4027



Features of CD4027 -Dual JK Flip Flop IC

  • Wide supply voltage range: 3.0V to 15V
  • Low power: 50nW (typ.)
  • Medium speed operation: 12 MHz (typ.) with 10V supply
  • Set-Reset Capability
  • Static Flip-Flop Operation - Retains State Indefinitely with Clock Level Either “High” or “Low”
  • Maximum Input Current of 1µA at 18V
  • Operating Temperature : -55 to 125 °C
  • Lead Temperature (Soldering): 265° C


Additional Resources

CD4027 -Dual JK Flip Flop IC datasheet

Package Contents

1× CD4027 Dual JK Flip Flop IC
