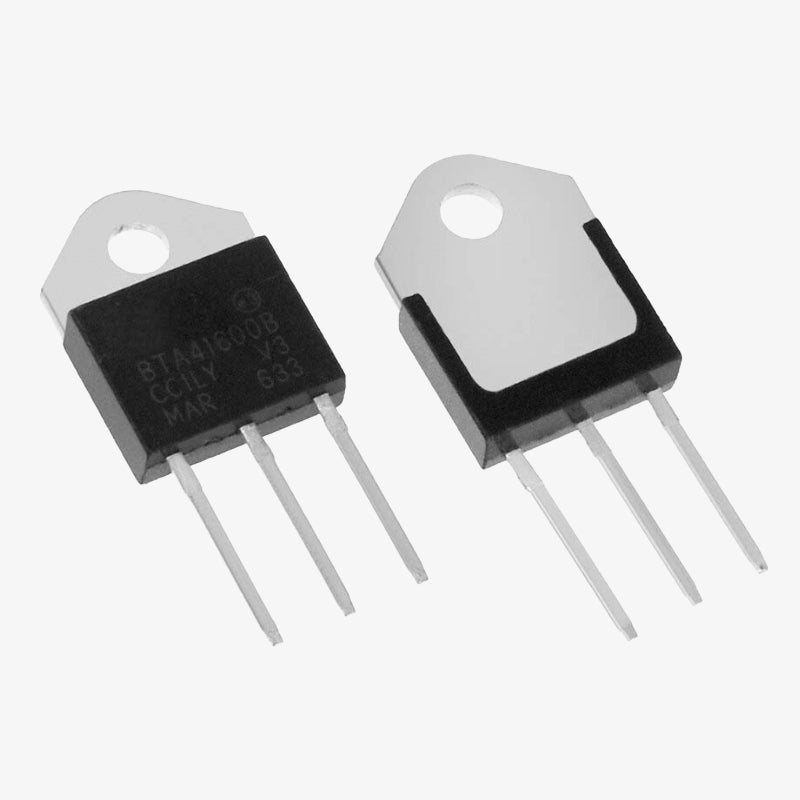

BTA41-600B 600V 41A Triac - TO-220AB Package
SKU:
CMP-QC3338
Availability:
234
In Stock
- Rs. 37.00
- Rs. 37.00
- Unit price
- per
Subtotal:
Rs. 37.00
Description
xThe BTA41-600B is a high‑current, high‑voltage bidirectional Triac designed for AC switching and phase control applications. Rated for 600V peak repetitive off‑state voltage and 41A RMS on‑state current, it is ideal for motor speed controls, light dimmers, heater controls, and solid‑state relays. The device features a built‑in, electrically isolated mounting tab in the TO‑220AB package, ensuring safe and compact installation without additional insulation.
Features of BTA41‑600B Triac:
- Bidirectional AC switch for full‑wave control
- High voltage rating: 600V VDRM/VRRM
- High current capability: 41A IT(RMS)
- Isolated mounting tab for easy heatsinking
- High commutation tolerance
- Suitable for inductive and resistive loads
- TO‑220AB through‑hole package
Specifications of BTA41‑600B Triac:
- Model: BTA41‑600B
- Type: Bidirectional Triac
- Peak Repetitive Off‑State Voltage: 600V
- RMS On‑State Current: 41A
- Gate Trigger Current: 50–100 mA
- Holding Current: 50 mA (typical)
- Surge Current (ITSM): 320A (8.3 ms sine)
- dv/dt Critical: 100 V/µs
- Package: TO‑220AB – Through Hole
- Operating Temperature Range: –40 °C to +125 °C
Package Includes:
1 × BTA41‑600B Triac – 600V 41A – TO‑220AB Package
