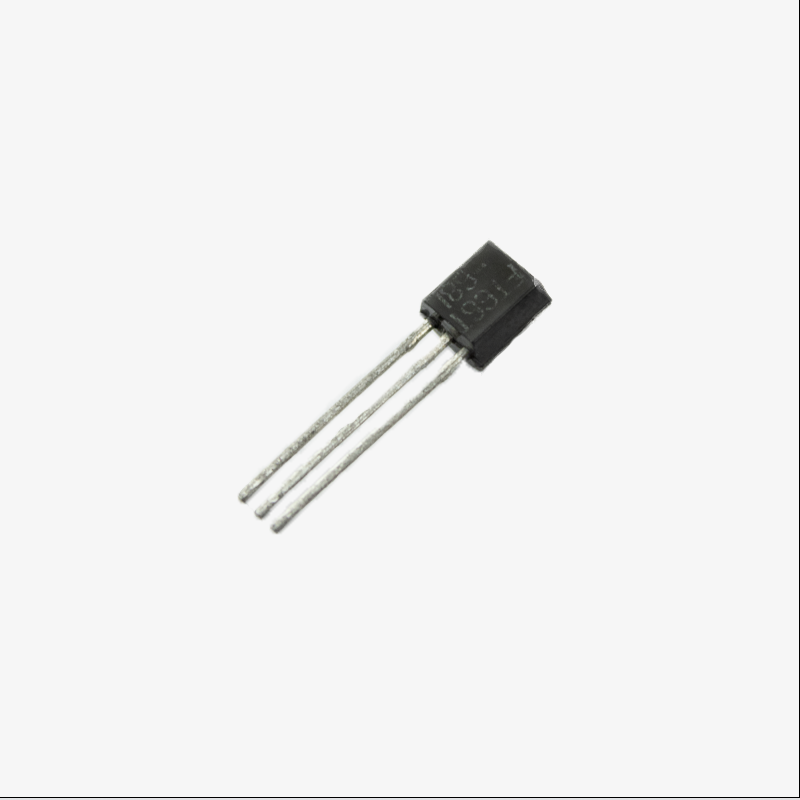

BT66 / UM66 Musical IC
Sold Out

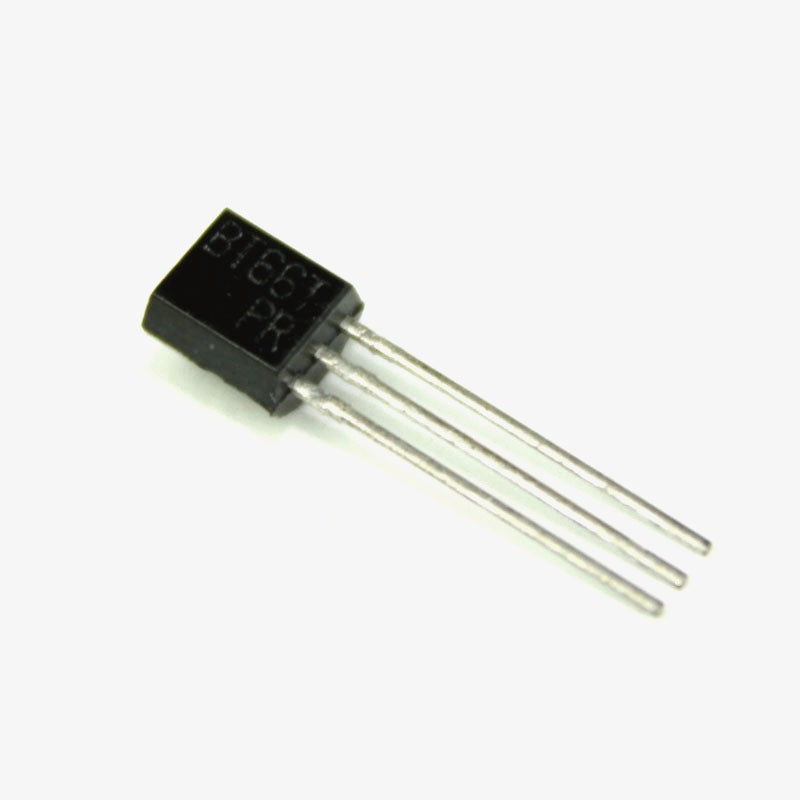

UM66 / BT66 Musical IC UM66 / BT66 Musical IC

QC0375

Out of stock

Rs. 14.00

UM66 is a 64 note melody generator IC that is available in TO-92 package. The IC can play five different tones based on the version. It can be easily used along with an NPN transistor to drive a speaker which is rated for 6/8 ohms. It is commonly used in toys, bells, alarm clocks etc. The features of the UM66 IC is given below

UM66 IC Features:

  • Operating Voltage: 3.3N
  • Current consumption: 1uA
  • Supply voltage range: 0.3V to 3.5V
  • Five different tones
  • Each melody consists of 64 notes.
  • Can easily drive a speaker through NPN Transistor

UM66 IC Applications:

  • Frequently used in Toys, Calling Bells, Alarms etc.
  • Use in hobby projects to make them more attractive using sound
  • To notify users through a melody tone

UM66 is a 64 note melody generator IC that is available in TO-92 package. The IC can play five different tones based on the version. It can be easily used along with an NPN transistor to drive a speaker which is rated for 6/8 ohms. It is commonly used in toys, bells, alarm clocks etc. The features of the UM66 IC is given below

UM66 IC Features:

  • Operating Voltage: 3.3N
  • Current consumption: 1uA
  • Supply voltage range: 0.3V to 3.5V
  • Five different tones
  • Each melody consists of 64 notes.
  • Can easily drive a speaker through NPN Transistor

UM66 IC Applications:

  • Frequently used in Toys, Calling Bells, Alarms etc.
  • Use in hobby projects to make them more attractive using sound
  • To notify users through a melody tone
