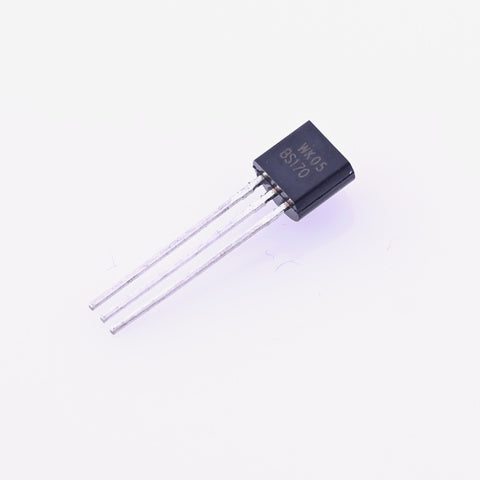

BS170-MOSFET
BS170 N-Channel Switching MOSFET
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

BS170 N-Channel Switching MOSFET

QC0137
100 In stock
Rs. 22.00 (Inc. GST)
Rs. 22.00

The BS170N is a small signal N-channel Enhancement Mode MOSFET. It is produced using the high cell DMOS technology. It provides reliable, fast switching performance and can be used in small servo motor control, power MOSFET gate drivers, and other switching applications. The BS170N transistor has a continuous drain current of 500mA and a Drain to Source voltage of 60V. It has an on-state resistance of 2.5 ohms and can withstand peak current up to 1200mA.


Product Description of BS170 N-Channel Switching MOSFET

BS170 N-Channel Switching MOSFET



Features of BS170 N-Channel Switching MOSFET

  • Fast Switching Speed
  • High Input Impedance
  • CMOS Logic Compatible Input
  • No Thermal Runaway or Secondary Breakdown
  • Voltage controlled small signal switch
  • Drain-source voltage: max. 60V
  • Gate-source voltage: max. 15V
  • Drain current (DC): max. 500 mA
  • High saturation current capability
  • Operating temperature: 55 to +150 °C



Additional Resources

Package Contents

1 x BS170 N-Channel Switching MOSFET
