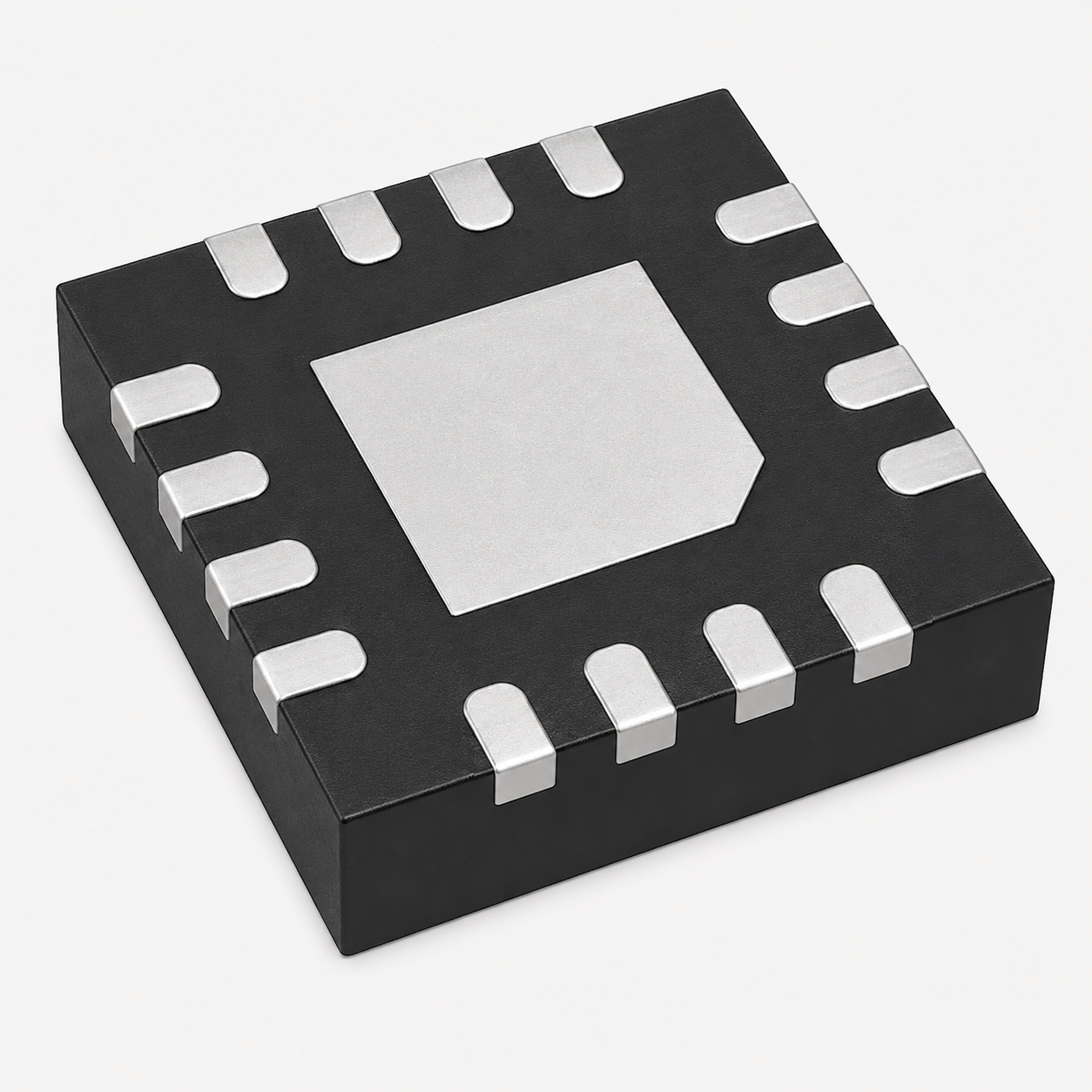

BQ24075RGTR TI Battery Charger IC - QFN-16 Package
SKU:
SMD-QC5928
Availability:
50
In Stock
-
- Rs. 105.00
- Unit price
- per
Subtotal:
Rs. 105.00
Description
xBQ24075RGTR Battery Charger IC is a highly integrated 1.5A single-cell Li-Ion/Li-Polymer battery charger and power-path management IC from Texas Instruments. It is designed for USB-powered and adapter-powered portable devices, providing simultaneous battery charging and system power management. The IC features dynamic power path management (DPPM), programmable charging current, USB-compliant input current limiting, battery temperature monitoring, safety timers, and comprehensive protection features. The BQ24075 variant includes a SYSOFF function for battery disconnect and a regulated 5.5V system output.
BQ24075RGTR Battery Charger IC Datasheet
Features:
- USB-Compliant Single-Cell Li-Ion/Li-Polymer Battery Charger
- Integrated Power Path Management (DPPM)
- Supports USB and AC Adapter Inputs
- Programmable Charging Current up to 1.5A
- Programmable Input Current Limit
- 5.5V Regulated System Output
- Battery Disconnect Function (SYSOFF)
- Dynamic Power Path Management (DPPM)
- Input Dynamic Power Management (VIN-DPM)
- Three-Phase Charging (Pre-charge, Constant Current, Constant Voltage)
- Programmable Safety Timers
- Integrated Thermal Regulation
- Battery Temperature Monitoring (NTC Input)
- Automatic Recharge Function
- Charge Status and Power Good Outputs
- Reverse Current Protection
- Input Overvoltage Protection
- Short-Circuit Protection
- Thermal Shutdown Protection
- Small QFN-16 Package
- RoHS Compliant
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Single-Cell Li-Ion Battery Charger IC |
| Part Number | BQ24075RGTR |
| Package | QFN-16 (RGT) |
| Battery Chemistry | Li-Ion / Li-Polymer |
| Input Voltage Range | 4.35V – 6.4V (Operating) |
| Maximum Input Voltage | 28V |
| Regulated System Output | 5.5V |
| Battery Regulation Voltage | 4.20V ±1% |
| Maximum Charge Current | 1.5A |
| Input Current Limit | 100mA, 500mA or Programmable up to 1.5A |
| Charging Algorithm | Pre-charge / CC / CV |
| Fast Charge Current | Programmable (300mA – 1.5A) |
| Pre-charge Threshold | 3.0V (Typ.) |
| Recharge Threshold | 100mV Below Regulation Voltage |
| Standby Current | 50µA (Typ.) |
| Sleep Current | 6.5µA (Typ.) |
| Operating Temperature | -40°C to +125°C |
| Mounting Type | Surface Mount |
| Package Size | 3mm × 3mm |
| RoHS Compliance | Yes |
Pin Configuration:
| Pin | Name | Description |
|---|---|---|
| 1 | TS | Battery Temperature Sense Input |
| 2 | BAT | Battery Connection |
| 3 | BAT | Battery Connection |
| 4 | CE | Charge Enable (Active Low) |
| 5 | EN2 | Input Current Selection |
| 6 | EN1 | Input Current Selection |
| 7 | PGOOD | Power Good Output |
| 8 | VSS | Ground |
| 9 | CHG | Charge Status Output |
| 10 | OUT | System Output |
| 11 | OUT | System Output |
| 12 | ILIM | Input Current Limit Programming |
| 13 | IN | Power Input |
| 14 | TMR | Safety Timer Programming |
| 15 | SYSOFF | Battery Disconnect / System Off |
| 16 | ISET | Charge Current Programming |
Also Check These Out:
AN7112 Audio Power Amplifier IC
Package Includes:
1 × BQ24075RGTR Battery Charger IC - QFN-16 Package
