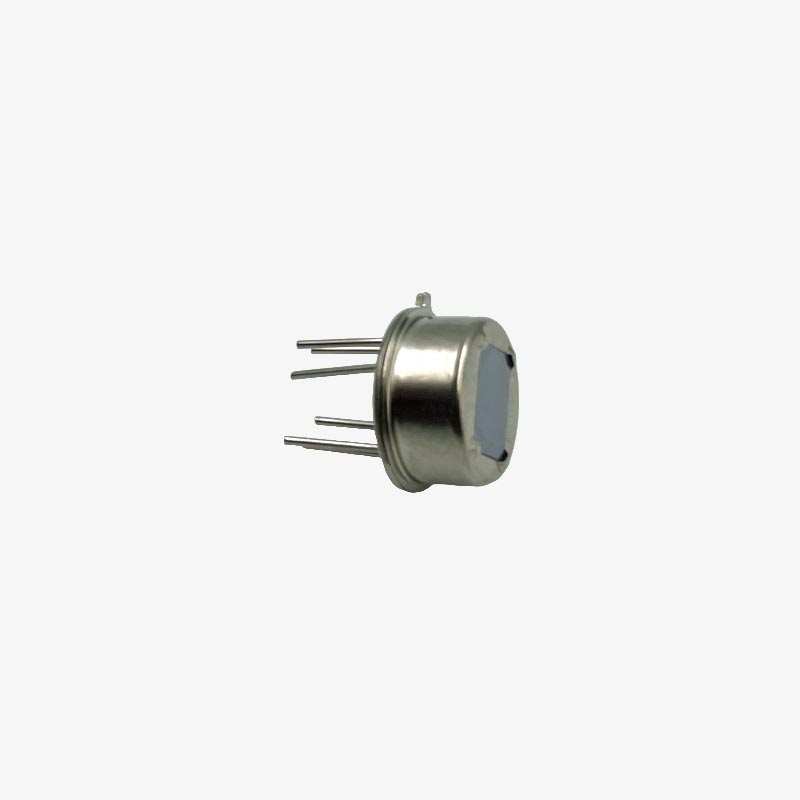

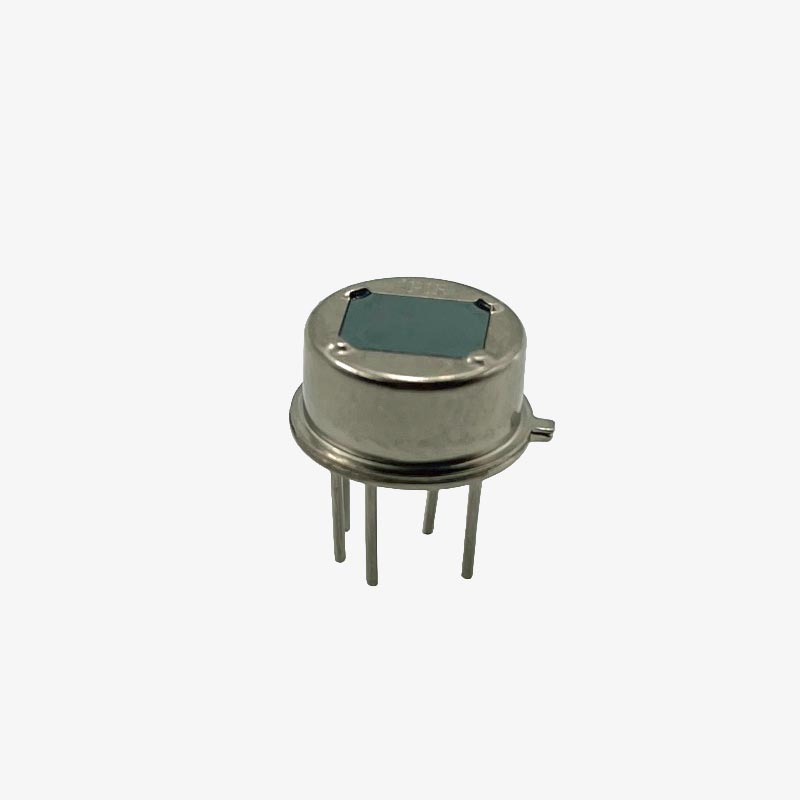

BM612 Digital PIR Sensor

Brand: GENERIC
SKU: MOD-QC1962
Availability: 26 In Stock
Rs. 109.00
Rs. 142.00
Rs. 109.00
Subtotal: Rs. 109.00
Description
Description
x

The BM612 is a latest smart digital motion detector with a small window size. It offers a complete motion detector solution, with all electronic circuitry built into the detector housing. Only a power supply and power-switching components need to be added to make the entire motion switch. The PIR sensor BM612 includes the time setting, sensitivity adjustment and ambient light level.

Features:

  • Digital Signal Processing (DSP): Ensures accurate humidity measurements.
  • Power Adjustable: Allows energy-saving customization.
  • High-Impedance Sensor Input: Enhances sensitivity.
  • Built-in Interference Filter: Rejects unwanted frequency interference.
  • Excellent Power Supply Rejection: Resists RF interference.
  • Schmidt REL Output: Provides reliable switching.
  • Low Voltage, Low Power: Energy-efficient and quick startup.
  • Large Window Size: Enables wider angle detection.

Specifications:

Parameter Specification
Operating Voltage (VDC) 3.3
Max. Operating Current (mA) 0.0095
Sensitivity Threshold Value 2000 V
Output Low Current Lock Time 2 Sec
Output High Current Lock Time 3600 Sec
Low Pass Filter Cut-Off Frequency 7 Hz
High Pass Filter Cut-Off Frequency 0.44 Hz
Oscillator Frequency on Chip 64 KHz

Applications:

The PIR sensor BM612 is widely used in many area, eg. Intelligent appliance, Alarms, Motion detector, Sensor lighting, Security system, Automatic control, etc.

Package Includes:

1 x BM612 Motion sensor
