BIGTREETECH BTT Octopus Max EZ for 3D Printer

Brand: GENERIC
SKU: MOD-QC6099
Availability: 2 In Stock
Rs. 7,680.00
Subtotal: Rs. 7,680.00
Description
Description
x

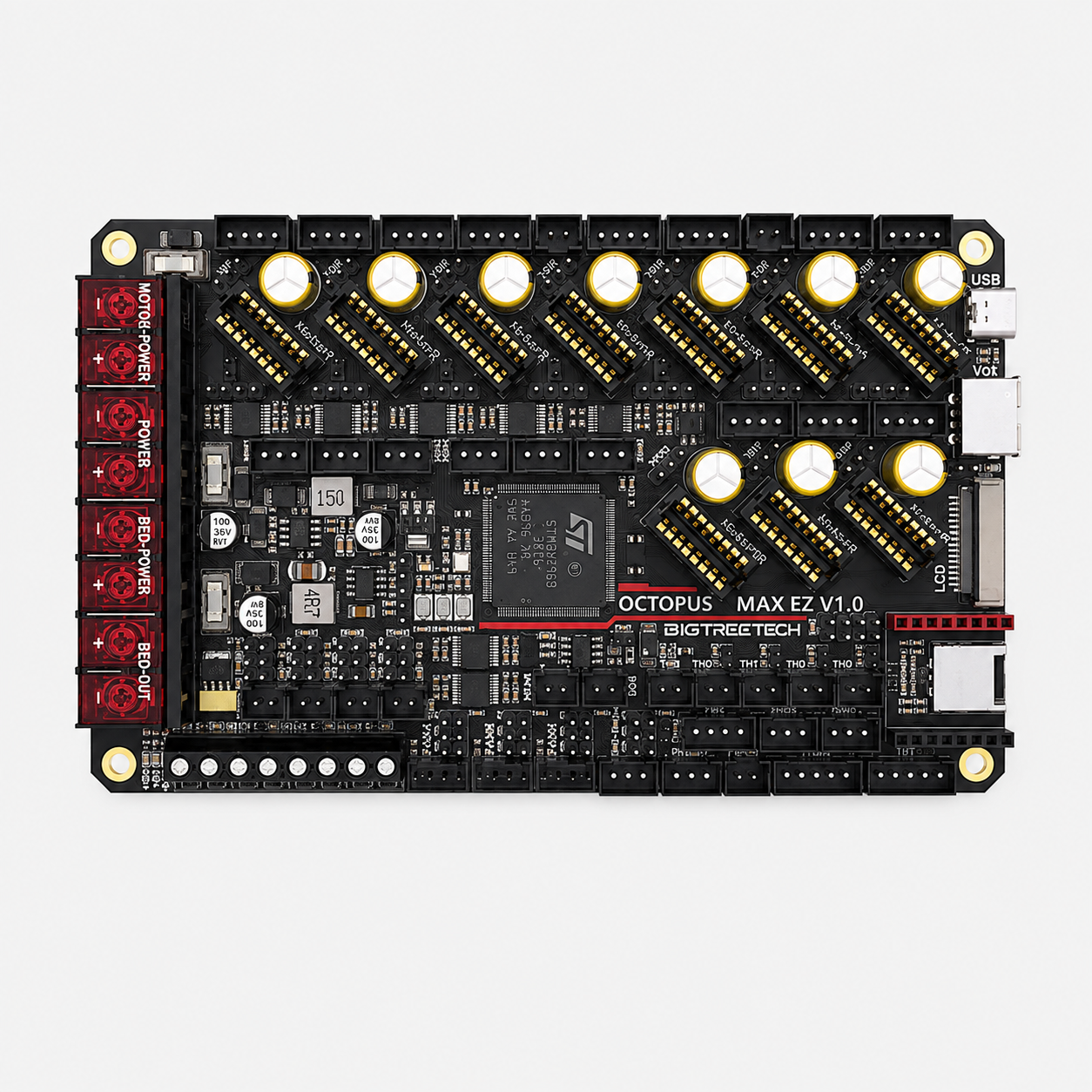

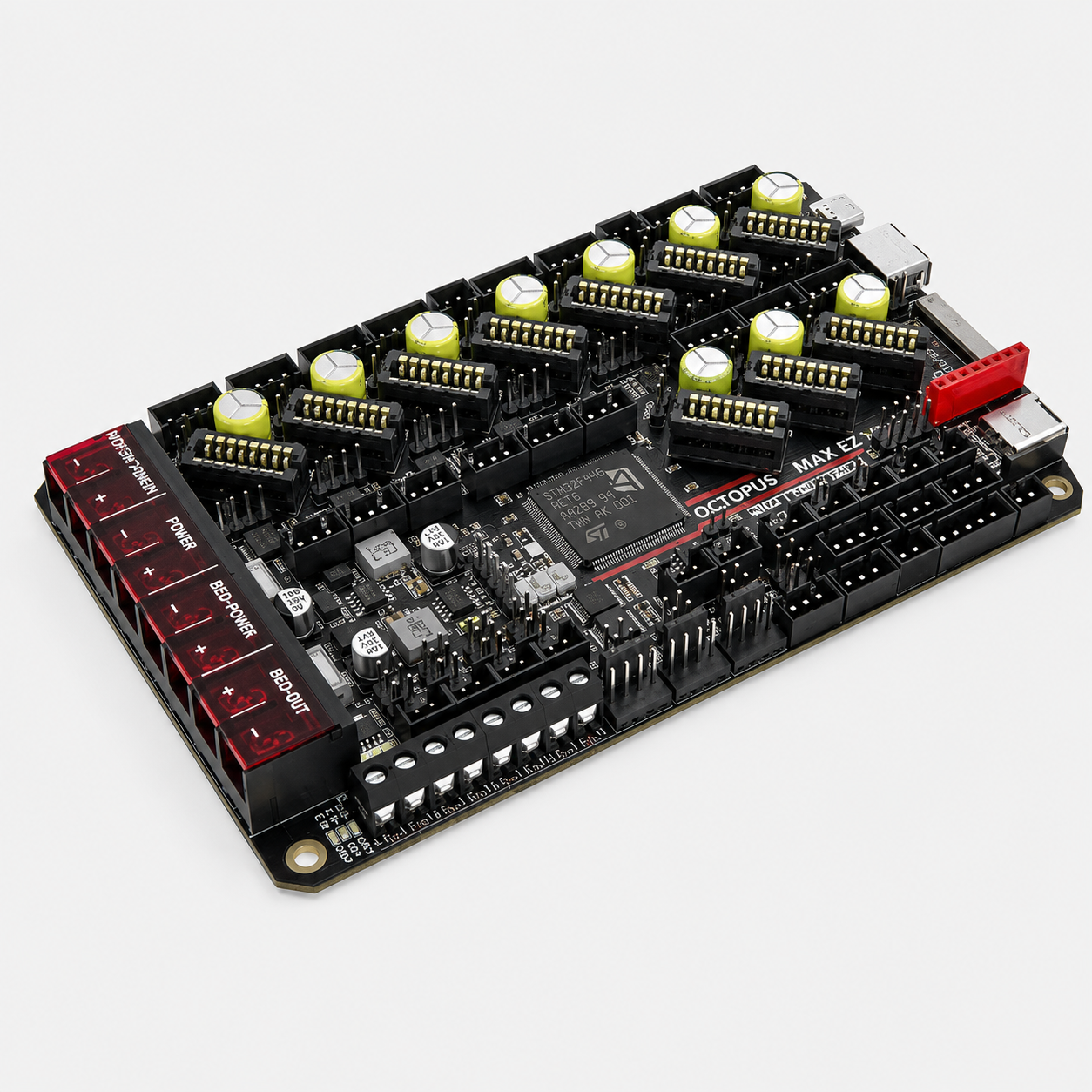

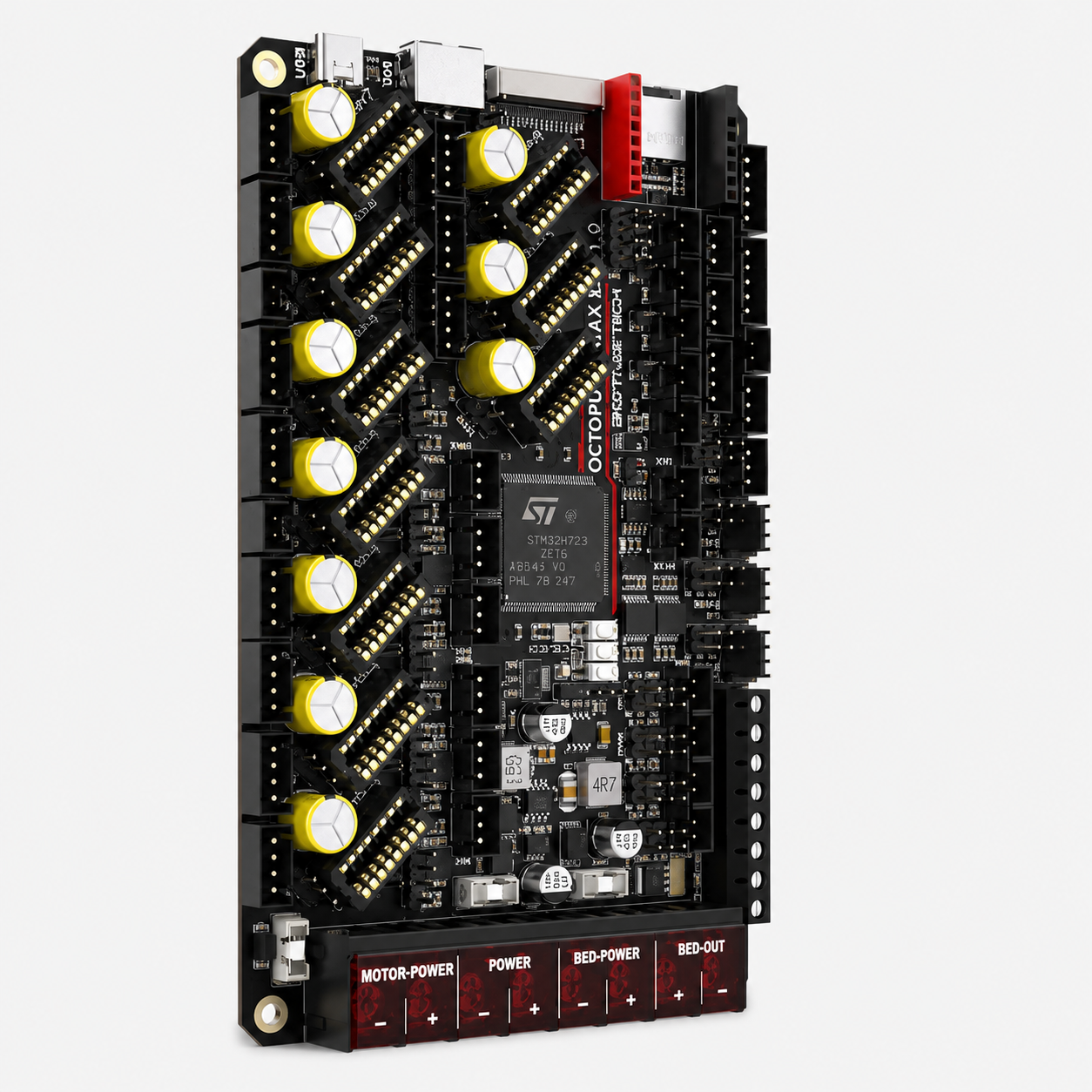

BIGTREETECH BTT Octopus Max EZ for 3D Printer is a powerful 32-bit control board designed for advanced and professional 3D printers. Powered by the STM32H723ZET6 ARM Cortex-M7 processor running at 550MHz, it supports up to 10 stepper motors using BIGTREETECH EZ series drivers. With extensive expansion options including CAN Bus, Wi-Fi, RGB, SPI, USB Type-C, and support for both Marlin and Klipper firmware, it is an ideal motherboard for CoreXY, Voron, IDEX, tool changer, and other high-performance 3D printer builds.

BIGTREETECH BTT Octopus Max EZ for 3D Printer Datasheet

Features:

  1. High-performance 32-bit STM32H723ZET6 Cortex-M7 processor.
  2. Supports up to 10 stepper motor channels.
  3. Compatible with BIGTREETECH EZ series stepper drivers.
  4. Supports both Marlin and Klipper firmware.
  5. USB Type-C interface for fast programming and communication.
  6. Dedicated CAN Bus interface for toolhead expansion.
  7. Built-in SPI interface for accelerometer and input shaping.
  8. Supports Wi-Fi module for wireless connectivity.
  9. Multiple fan, heater, thermistor, and RGB interfaces.
  10. Ideal for CoreXY, Voron, IDEX, Delta, and custom 3D printers.

Specifications:

Parameter Value
Product Type 32-Bit 3D Printer Control Board
Model BIGTREETECH BTT Octopus Max EZ
Microcontroller STM32H723ZET6
CPU ARM Cortex-M7
Clock Speed 550MHz
Logic Voltage 3.3V
Motherboard Input Voltage 12V / 24V DC
Driver Input Voltage 24V / HV (Up to 56V Selectable)
Heated Bed Input Voltage 12V / 24V DC
Stepper Driver Support BIGTREETECH EZ2209, EZ2208, EZ2130, EZ2225, EZ2226, EZ5160 and Compatible EZ Drivers
Number of Stepper Motor Channels 10
Driver Communication UART / SPI
Heater Outputs 4 (HB, HE0, HE1, HE2, HE3)
Heated Bed Output Current 10A Continuous, 12A Peak
Heater Output Current 5.5A Continuous, 6A Peak (Per Heater)
Fan Outputs 9 (7 Controllable + 2 Always-On)
Maximum Fan Output Current 1A Continuous, 1.5A Peak (Per Port)
Thermistor Inputs 5 (NTC/PT1000 Selectable on 4 Channels)
Display Support MINI12864 (FPC), TFT Serial Display
Communication Interfaces USB Type-C, CAN Bus, SPI, UART, I²C
Expansion Interfaces BLTouch, RGB, Wi-Fi, PS-ON, Filament Sensor, Power Detection, CAN, SPI
Supported Kinematics Cartesian, CoreXY, CoreXZ, Delta, Kossel, Ultimaker, IDEX
Supported Firmware Marlin, Klipper
Board Dimensions 160 × 100mm
Applications High-End 3D Printers, Voron Builds, CoreXY Systems, IDEX Printers, Tool Changer Systems, DIY Professional 3D Printers


Also Check These Out:

Bambu Lab P1S Combo 3D Printer

Bambu Lab P1S 3D Printer

Bambu Lab A1 3D Printer

Bambu Lab A1 Combo 3D Printer

Package Includes:

1 × BIGTREETECH BTT Octopus Max EZ for 3D Printer
