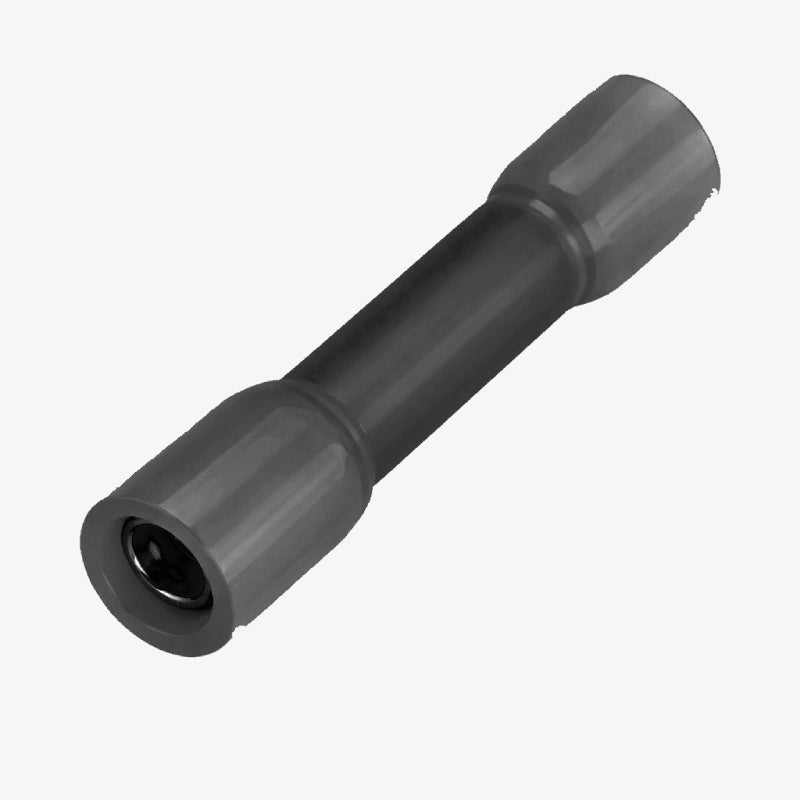

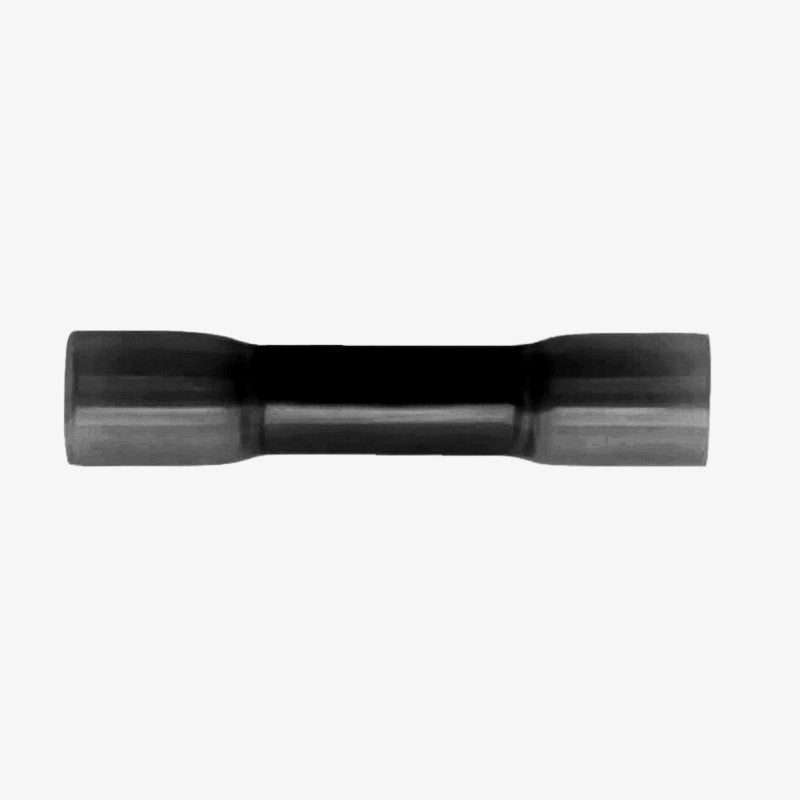

BHT-3.5 Heat Shrink Butt Splice Connector 2.5-4.0 sqmm (14-12 AWG) - Black

The BHT-3.5 Heat Shrink Butt Splice Connector is a heavy-duty crimp terminal designed for secure and reliable wire-to-wire connections in higher current applications. Featuring an integrated heat shrink insulation sleeve, it provides excellent electrical insulation, strong strain relief, and effective protection against moisture and corrosion. This connector is ideal for joining 14–12 AWG wires in automotive, industrial, marine, and power wiring applications.

Features:

1. Heat shrink butt splice connector for high-strength wire connections.
2. Designed for 14–12 AWG wire sizes.
3. Integrated heat shrink tubing provides insulation and strain relief.
4. Forms a waterproof and corrosion-resistant connection after heating.
5. Ensures reliable electrical conductivity and mechanical durability.
6. Simple crimp-and-heat installation process.
7. Suitable for automotive, industrial, marine, and heavy-duty wiring projects.

Specifications:

• Product Type: Heat Shrink Butt Splice Connector
• Model: BHT-3.5
• Wire Gauge Compatibility: 14–12 AWG
• Voltage Rating: 220 V
• Connector Type: Butt Splice / Crimp Terminal
• Current Rating: 32 A
• Size: 38x8.0 mm
• Wiring Range:
  • BV 2.5-4 mm2
  • BVR 2.5-4 mm2
• Color - Black
• Insulation Type: Heat Shrink Tubing
• Connector Material: High-quality metal conductor
• Color Code: As per standard specification
• Applications: Automotive wiring, industrial wiring, marine wiring, electrical repairs, DIY power projects


Package Includes:

1 × BHT-3.5 Heat Shrink Butt Splice Connector  2.5-4.0mm² (14-12 AWG) - Black
