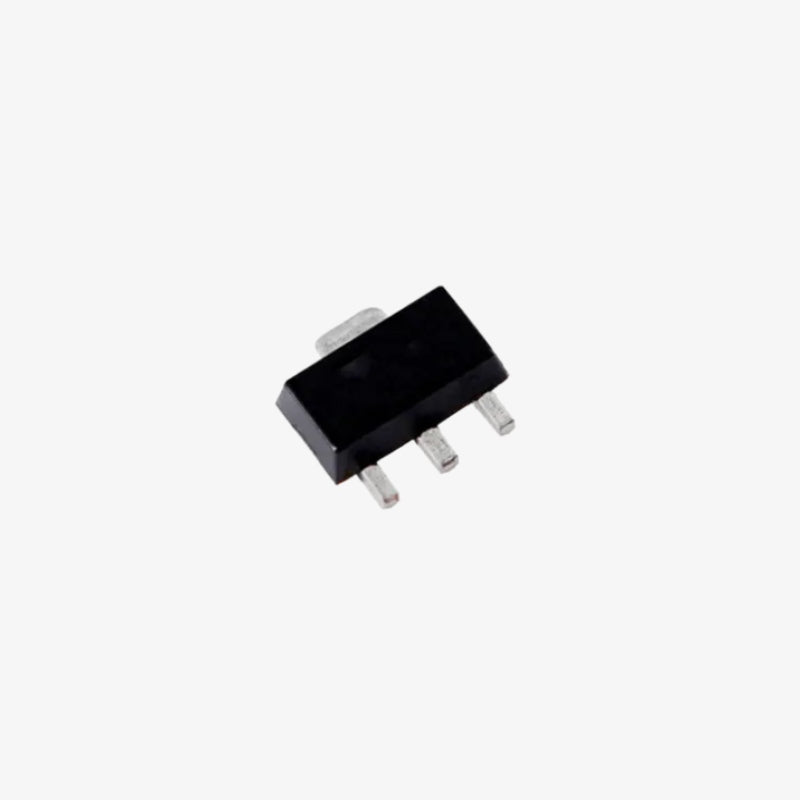

BCX56 NPN Bipolar Transistor BJT 80V 1A SOT-89 SMD Package

Brand: GENERIC
SKU: SMD-QC2429
Availability: 215 In Stock
Rs. 7.00
Rs. 7.00
Subtotal: Rs. 7.00
Description
Description
x

The BCX56 is a high-voltage NPN bipolar junction transistor (BJT) designed for various applications, including switching and amplification. It comes in a SOT-89 surface-mount device (SMD) package, providing a robust and efficient solution for modern electronic designs.

Specifications:

  • Type: NPN Transistor
  • Collector-Emitter Voltage (Vce): 80V
  • Collector-Base Voltage (Vcbo): 100V
  • Emitter-Base Voltage (Vebo): 5V
  • Collector Current (Ic): 1A
  • Power Dissipation (Ptot): 1.2W

Pin Configuration:

  1. Emitter
  2. Base
  3. Collector

Key Characteristics:

  • DC Current Gain (hFE): Typically ranges from 63 to 160.
  • Transition Frequency (fT): 100MHz
  • Collector-Emitter Saturation Voltage (Vce(sat)): 500mV at 500mA
  • Noise Figure: Low

Features:

  • High Collector-Emitter Voltage (80V)
  • High Collector Current Capability (1A)
  • High Power Dissipation (1.2W)
  • High Transition Frequency
  • Suitable for Surface-Mount Applications

Applications:

  • General-Purpose Switching
  • High-Voltage Amplification
  • Power Management
  • Signal Processing
  • Automotive Electronics

Note: Product images are for illustrative purposes only and may differ from the actual product.
