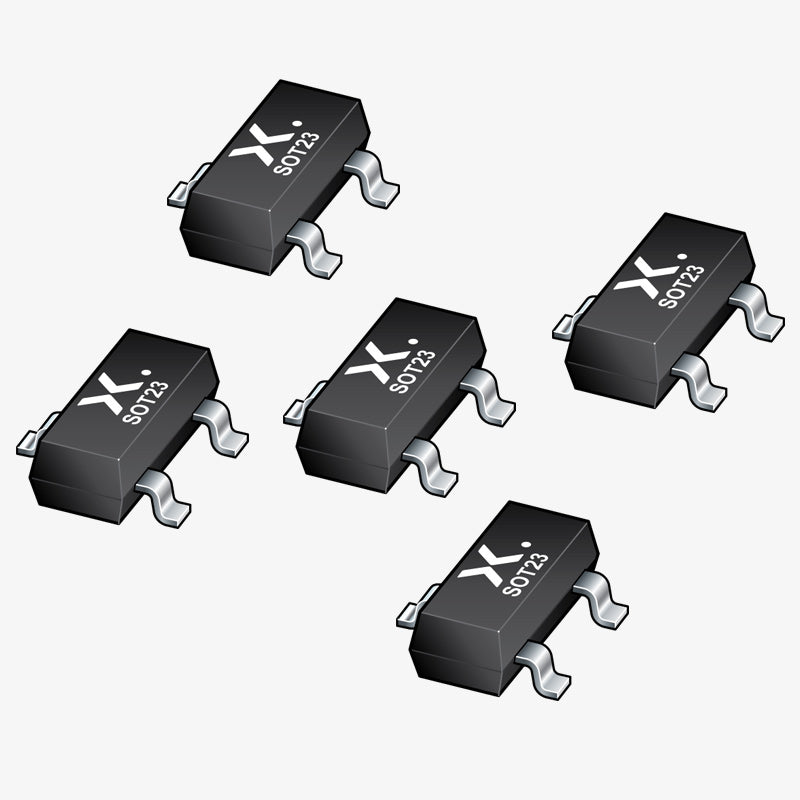

PNP general-purpose transistors in a small SOT23 (TO-236AB), Surface-Mounted Device (SMD) plastic package.
Features and benefits :
- Low current (max. 100 mA)
- Low voltage (max. 65 V)
- General-purpose switching and amplification
|Type number||Package version||Size (mm)||Polarity||Ptot (mW)||VCEO [max] (V)||IC [max] (mA)||hFE [min]||hFE [max]||fT [min] (MHz)|
|BC857B||SOT23||2.9 x 1.3 x 1||PNP||250||-45||-100||220||475||100|
BC857B 65 V, 100 mA (SMD SOT-23 Package) Datasheet
Package Includes :
1 x 5 Piece of BC857-(SMD SOT-23 Package) - PNP General Purpose Transistor
