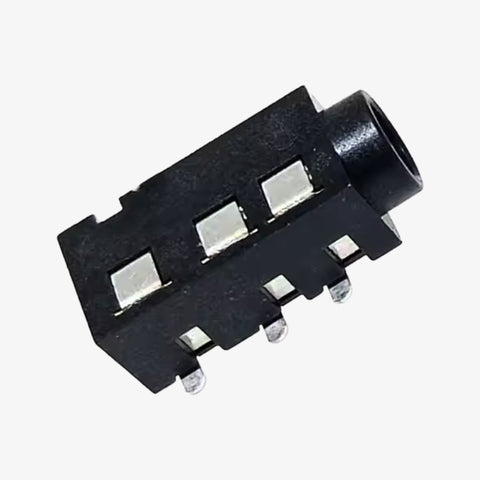

Audio Jack – 3.5mm TRRS (SMD)

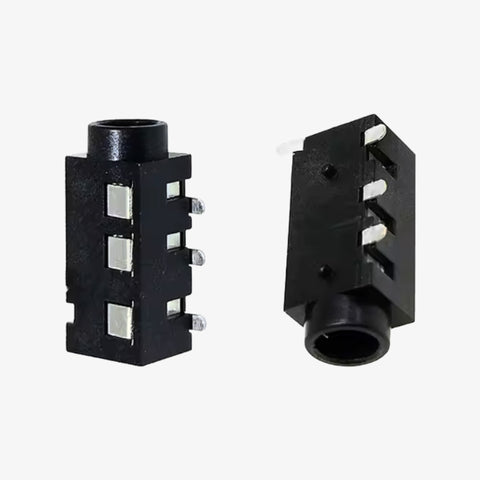

TRRS Audio Jack – 3.5mm
Audio Jack TRRS
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

Audio Jack – 3.5mm TRRS (SMD)

QC2924
999 In stock
Rs. 10.00 (Exc. GST)
Rs. 10.00

The 3.5mm TRRS (Tip-Ring-Ring-Sleeve) Audio Jack is a surface-mount device (SMD) designed for audio and data transmission. This jack is commonly used in headsets, smartphones, audio players, and embedded systems for stereo audio and microphone input. Its compact SMD design makes it ideal for PCB integration in various electronic projects.

Features of 3.5mm TRRS Audio Jack:

  1. TRRS (Tip-Ring-Ring-Sleeve) configuration for stereo audio and microphone support.
  2. Compact SMD design for easy integration into PCBs.
  3. Gold-plated contacts for improved conductivity and durability.
  4. Commonly used in audio devices, headsets, and communication systems.
  5. Compatible with microcontrollers and embedded systems for audio applications.

Specifications of 3.5mm TRRS Audio Jack:

  • Type: TRRS (4-pole) Audio Jack
  • Mounting: Surface Mount Device (SMD)
  • Contact Material: Gold-plated for enhanced signal transmission
  • Application: Audio input/output, microphone, stereo systems
  • Durability: High wear resistance for repeated use

Package Includes:

1 × 3.5mm TRRS (SMD) Audio Jack
