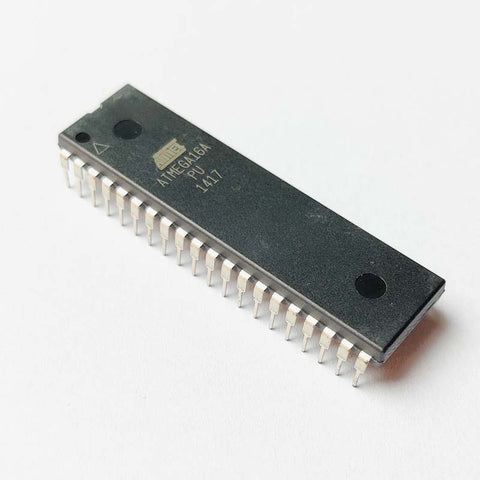

If you are looking for a 16K bytes flash microcontroller unit, then the ATMEGA16A is a 16Kbit low power high-performance CMOS Microcontroller based on the Atmel AVR enhanced RISC architecture.
With the 16kB self-programming flash program memory it is powered by the 1024B SRAM and 512-byte EEPROM it has peripheral support of 8 channel 10-bit Analog to Digital converter. For debugging and Programming, it has a JTAG interface for on-chip-debug. It can operate from 2.7V to 5.5V operating voltages. Peripheral support includes SPI, Timer, USART.
Atmega16a pinout:
Atmega16 features, specification
Features: -
- It has advanced RISC architecture
- 32 Programmable I/O Pins for with multiple operations
- Internal Calibrated RC oscillator
- Real-time counter that uses separate oscillator
- Power-on reset (POR) and programmable brown-out detection
- External and internal interrupt sources
- Mode of operations - Idle, ADC noise reduction, power-save, power-down, standby and extended standby
Specification: -
- Package/Case : PDIP-40
- Minimum Supply Voltage (V) : 7V
- Maximum Supply Voltage (V) : 5V
- of Timers/Counters : 3 Timers
- of I/Os : 32
- Architecture : 8-bit Microcontrollers – MCU
- Product Series : ATmega16A
- Maximum Clock Frequency (MHz) : 16
- Data Bus Width : 8 bit
- Interface Supports : 2-Wire, SPI, USART
- Mounting Type : Through Hole, DIP Package
- Program Memory Size (kB) : 16
- Data RAM size and Type : 1KB SRAM
- Data ROM Size and Type : 512-B EEPROM
- Operating Temperature Range (°C) :-24 to 85
Atmega16a Applications:
- Data logging
- Controlled Operations
- Data processing and small applications where Input output single bit data transfer is required.
- Sensor Integration
- Computer and Microcontroller communications
Atmega16a Dimension and footprint:
Example Projects on Atmega16A:
Additional Resources:
Package Contains
1x Atmega16a (DIP Package)
