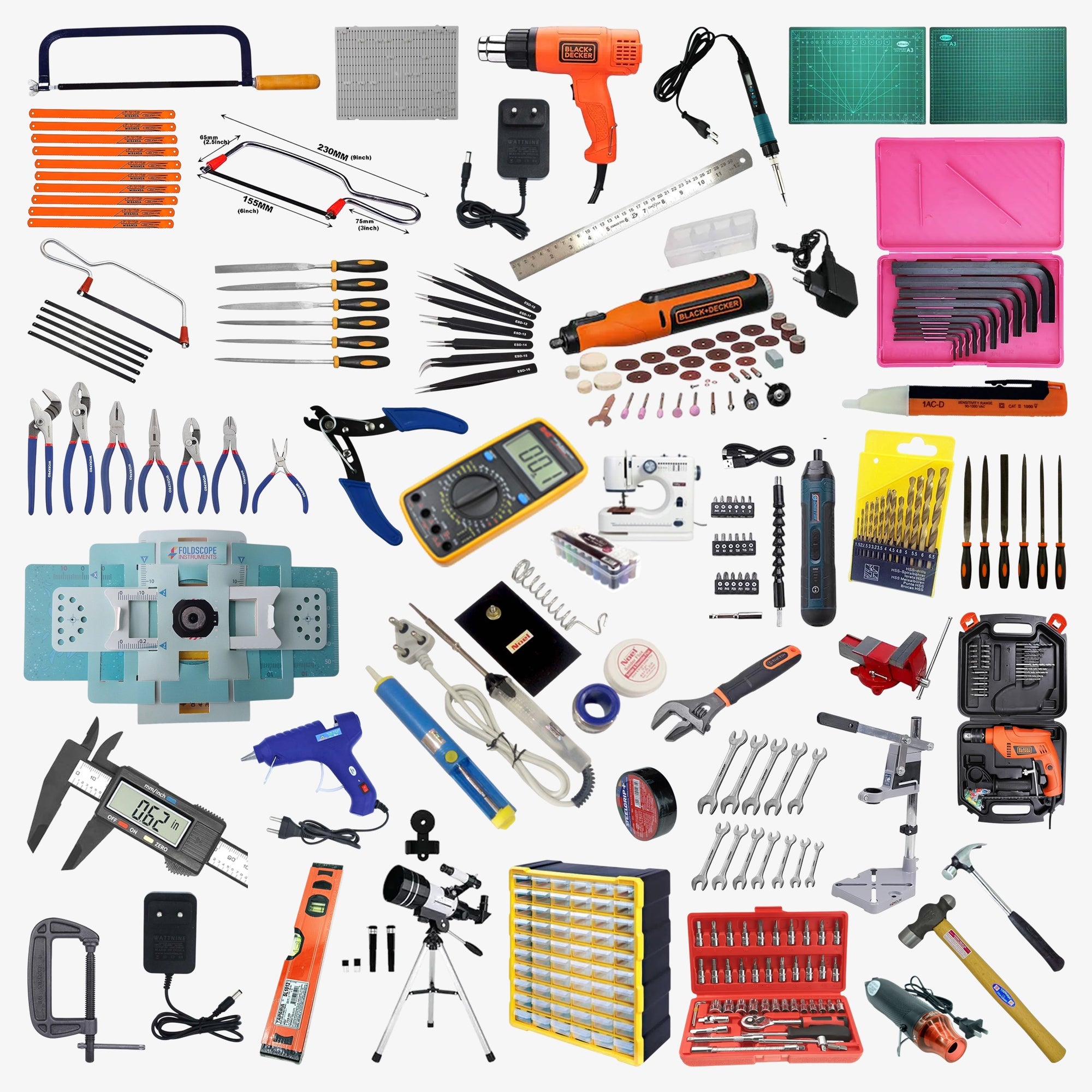

Atal Tinkering Lab – Package 3: Mechanical, Electrical and Measurement tools

Item Name

Specification

Qty

Hacksaw Frame

Size: 12 inches

1

Hacksaw blades

Size: 12 inches

10

Mini Hacksaw Frame

Size: 6 inches

1

Mini Hacksaw blades

Size: 6 inches

10

Pliers: 4.5-inch size

External Straight

1

Nose Circlip Plier

1

Long Nose Plier

1

Combination Mini Plier

1

Wire stripping pliers

1

Bent nose plier

1

Needle nose pliers

1

Tweezer Set

6 Pc Non-Magnetic Tweezer Set Size - 6 inches

2

Ball Pein Hammer

Ball Pein Hammer Weight - 0.75kg

1

Steel Shaft Claw Hammer

Claw Hammer Steel Shaft Weight - 0.75kg

1

C-Clamp

Metal Clamp: 3-inch size

4

Allen Key Set

10 Piece Ring Imperial Allen Hex key

1

Drill Machine Set

Drill Machine with accessories Hammer/Screw and clockwise/anticlockwise modes.

1

Power: 500W

Chuck capacity - 1 to 10 mm

Drill Bits - Masonry, Metal, Wood

Drilling Workstation

Drill Press, Drill Holder and Rotary Tool, Compatible with Drilling machine provided

1

Spanner Set

12-piece combination Spanner Set Range - 4 mm to 30 mm

1

Vice Normal

Table top vice

1

Precision Screw Driver Set

6 Piece Precision Screw Driver Set Types: PH0, PH1, Flat head - 1.4mm, 2mm, 2.4mm, 3mm

2

Wrench

Adjustable Universal Wrench

2

Wire Strippers

Wire Stripper Cutter Plier

5

Screwdriver

40 pc Multi-purpose screwdriver set

2

Cordless Rotary Multitool Set

Cordless Rotary multitool with all cutting, grinding, polishing, engraving and drill bits.

1

Speed: Adjustable up to 30000 RPM

Battery Type: Li-ion Voltage/current range : 8-

10V, 0-2 A

Air Blower

1

Drill Bit Set

High Quality 13 Pcs HSS Drill Bits Set for Wood, Iron, Aluminium, Plastic etc.

1

File set

6 pc file set Working Length - 6 Inch

1

Mini File set

6 pc mini file set Working length - 3 inch

1

Flexible Cutting Mat

A3 Size with Marked Pattern and Grids (18" X 12")

1

Plastic Storage Drawer/Organiser

Number of Drawers: 60 or equivalent  Drawer size (l*w*d) (inch) : 2*2*5

2

Pegboard

Peg board System to mount tools on wall with attachments. Size: 3ft*2ft

2

Hot glue gun

Works with standard 0.5- inch glue sticks. Temperature - 230 to 280 degree Celsius.

4

Soldering Kit

Soldering Iron Temperature Range: 280°C to 450°C

4

De-Soldering Pump, Soldering Flux (Paste) 100 grams,

DE-soldering Copper Braid (Solder Wick) -

1.5m*2mm

Compatible Soldering Tip

- Bevel, Chisel, Conical - 5 each per kit.

Soldering Wire: 20/22 AWG soldering Wire with rosin core flux (100 Grams)

Adapters

DC power Adapter with 5V, 2A

10

Adapters

DC power Adapter with 12V, 2A

10

Electric Screw Driver Set

Multipurpose Electric screwdriver set.

1

Accessories - Compatible bits

Mode - Wireless Battery - Li-ion 3.6V or

equivalent with charging dock

Dual Temperature Heat Gun

1800 W Dual Temperature Heat Gun

1

Soldering Helping hand

Specifications: Adjustable crocodile holding clamps/clip. Soldering iron holder. LED light. Magnifying lens.

4

Return measuring

Return measuring tape

2

tape

5Mx19mm

5

Stainless Steel Rule

Stainless Steel 12” / 150 mm Rule

2

Digital Vernier

150 mm / 6” Digital

2

Spirit Level

12” Spirit Level

1

Digital Pen electric Tester

Voltage tester

1

Digital Multi Meter

Digital Multi Meter Voltage Current Resistance-7 functions + 19 ranges to cover DC

3

voltage 200mV to 1kV,

AC voltage 200 V - 750 V,

DC current 200 µA - 10 A

Resistance 200 -2 M Ohm and Transistor & diode test.

DIY Paper Microscope

DIY Paper microscope. Magnification range - 100x to 2000x

5
