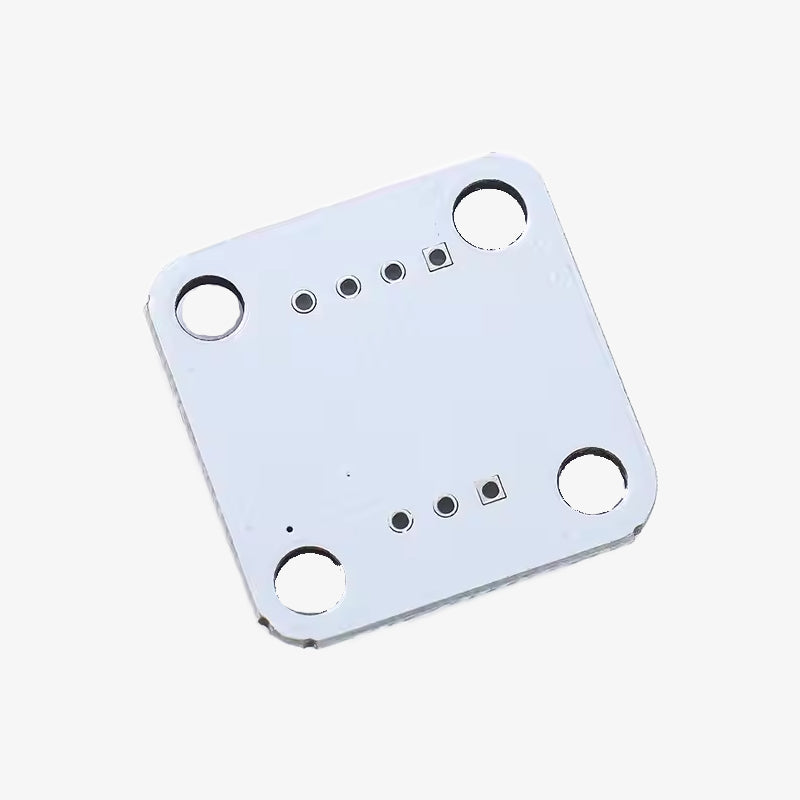

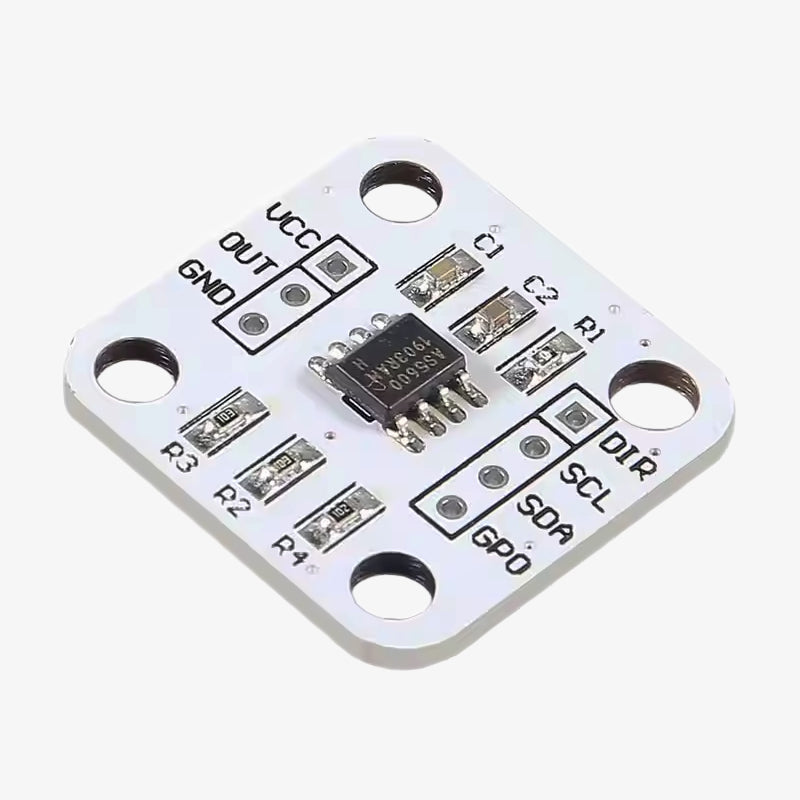

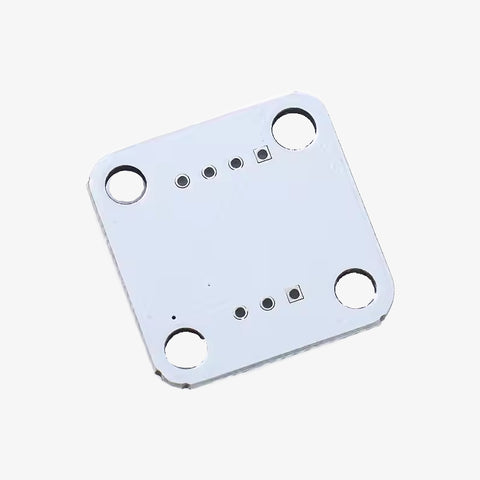

AS5600 Magnetic Encoder Angle Sensor Module
SKU:
MOD-QC2785
Availability:
37
In Stock
- Rs. 118.00
- Rs. 118.00
- Unit price
- per
Subtotal:
Rs. 118.00
Description
xThis AS5600 Magnetic Angle Encoder Sensor Module is designed to provide precise and reliable angular position sensing. It uses a magnetic rotary encoder, making it ideal for applications requiring accurate rotational feedback. The module offers high precision with a resolution of 12-bits and can detect rotational angles in a full 360-degree range.
Features:
- High Precision: 12-bit resolution for accurate angle measurement.
- Magnetic Sensing: Uses a contactless magnetic field to detect the angle.
- Wide Operating Voltage: Operates within a voltage range of 3.3V to 5.5V.
- I2C Communication: Allows easy interface with microcontrollers via I2C protocol.
- Low Power Consumption: Energy-efficient design, suitable for battery-powered applications.
- Non-Contact Sensing: No mechanical wear, ensuring long-term reliability.
- 360-Degree Detection: Provides full rotation sensing for various rotational applications.
Specifications:
- Operating Voltage: 3.3V to 5.5V
- Resolution: 12 bits
- Output Signal: I2C interface
- Operating Temperature Range: -40°C to +125°C
- Angle Detection Range: 360 degrees
- Current Consumption: 3mA
- Module Dimensions (L x W x H): 20mm x 15mm x 5mm
Package Includes:

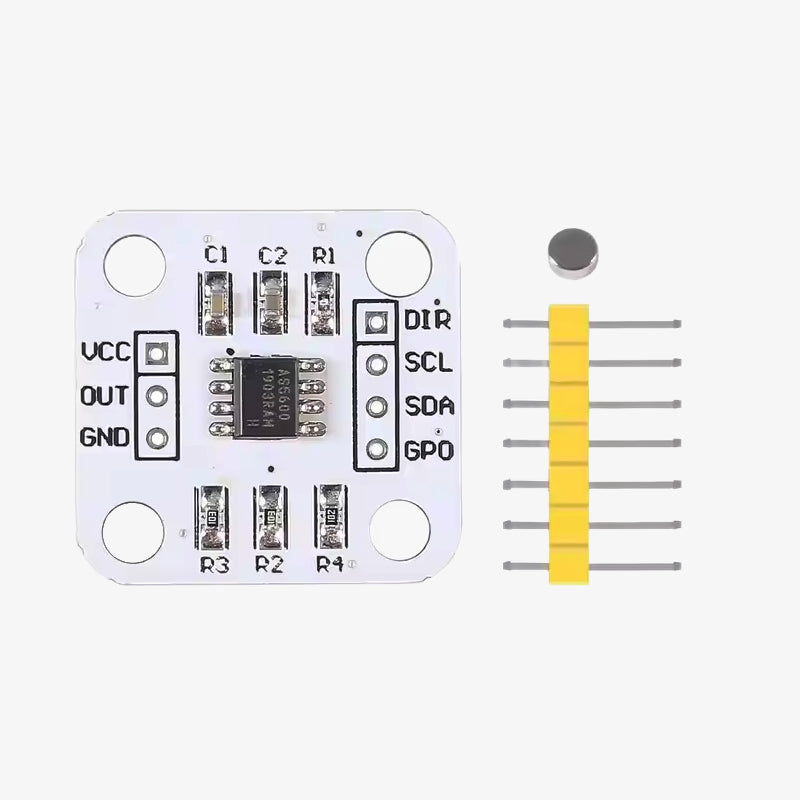

1 x AS5600 Magnetic Angle Encoder Sensor Module
