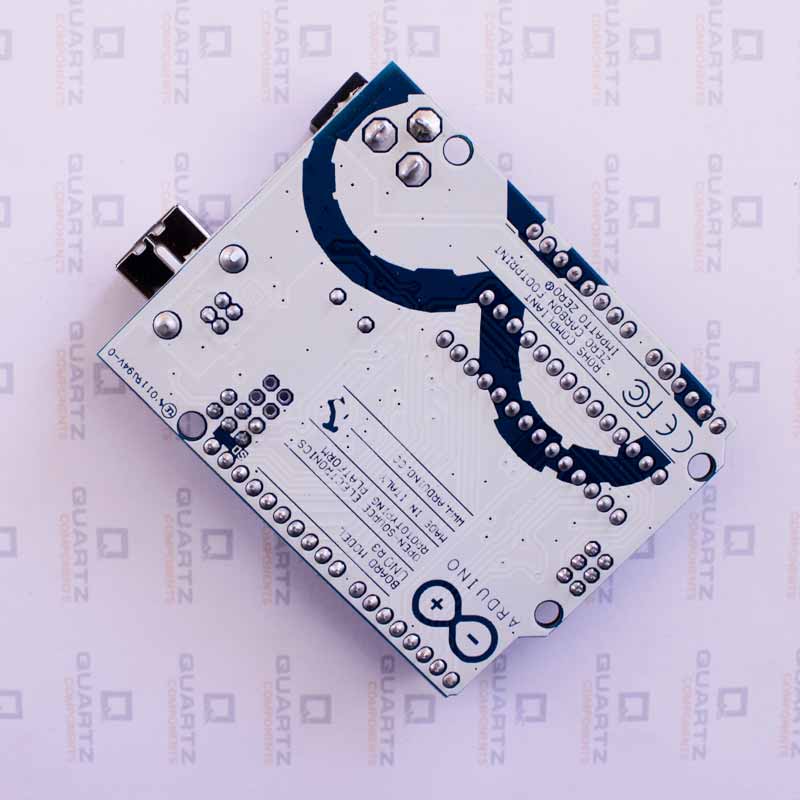

The Arduino Uno R3 is an ATmega328P microcontroller-based development board. This is widely popular in Embedded electronics because of the available resources and easy to use by everybody features. With 14 digital input/output pins where 6 can be configured and used as PWM outputs, 6 as analog inputs is a great addition for I/O related operations. Powered with a 16 MHz ceramic resonator, an USB connection, a power jack, an ICSP header, and a reset button.
It includes a LED that can be useful in multiple applications or to test the board functionality. A voltage regulator, better to say an LDO, is available inside this development board to make this Arduino compatible for a wide range of input voltages. The application is very easy, just upload the code, and run.
Arduino UNO R3 Pinout
Package Contains
1x Arduino UNO R3 without the USB Cable.
Features:
- Model Type: UNO Rev R3
- Microcontroller Chip: ATmega328P
- Operating Voltage (VDC): 5
- Input Voltage (Recommended): 7-12V
- Input Voltage (limit): 6-20V
- Analog I/O Pins: 6
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- PWM Digital I/O Pins: 6
- DC Current per I/O Pin (mA): 40
- DC Current for 3.3V Pin (mA): 50
- Clock Speed: 16 MHz
- SRAM (KB): 2
- EEPROM: 1 KB (ATmega328)
- Flash Memory: 32 KB
- On Board LEDs: On/Off, L (PIN 13), TX, RX
- Dimensions in mm (LxWxH): 75 x 54 x 12
Arduino UNO R3 Applications:
- Embedded input output
- Data capture
- Motor control
- Robotics
- Small embedded application and developments
Arduino UNO R3 Dimension and footprint:
Example Projects on Arduino UNO R3:
Additional Resources:
