Arduino Pro Mini 5V Arduino Pro Mini 5V

QC0029

9 In stock

Rs. 200.00
-
+
Rs. 200.00
(inc. GST)

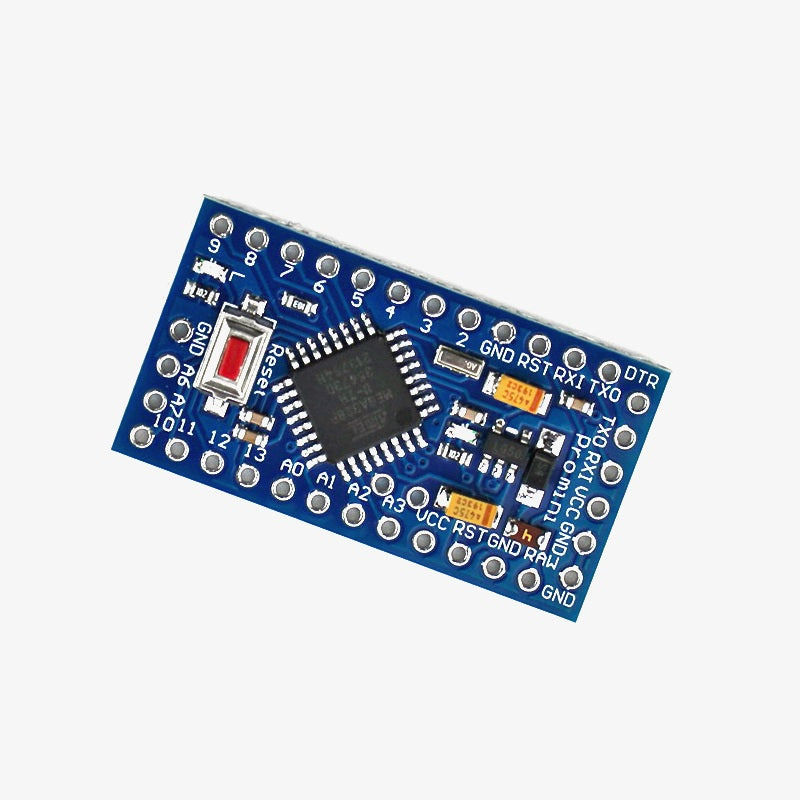

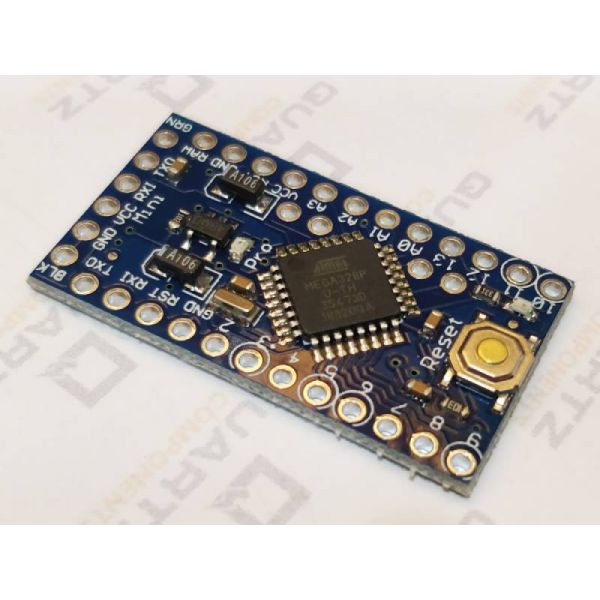

Arduino Pro Mini is a compact yet powerful Arduino development Board. It works on the same ATmega328 microcontroller like UNO but is the only 1/3rd of the size of UNO. The size is reduced by removing an in-built programmer and the USB port, so pro mini requires an external programmer like an FTDI board to program it. The small size enables the board to be used on a PCB and other final applications.



Apart from the size, the specification of pro mini (5V) and UNO are almost similar and hence they both can exchange the same program.



Note: This version of Pro mini is 5V



Specifications Features

  • Microcontroller: Atmega328p – 8 BIT AVR controller
  • Operating Voltage: 5V
  • Raw Voltage input: 5V to 12V
  • Maximum current through each I/O pin: 40mA
  • Maximum total current drawn from the chip: 200mA
  • Flash Memory: 32Kbytes
  • EEPROM: 1Kbyte
  • Internal RAM: 2Kbytes
  • Clock Frequency: 16 MHz
  • Operating Temperature: -40ºC to +105ºC
  • Supports auto-reset
  • On-board Power and Status LEDs
  • Analog Pins: 8
  • Digital I/Os: 14



Package Includes

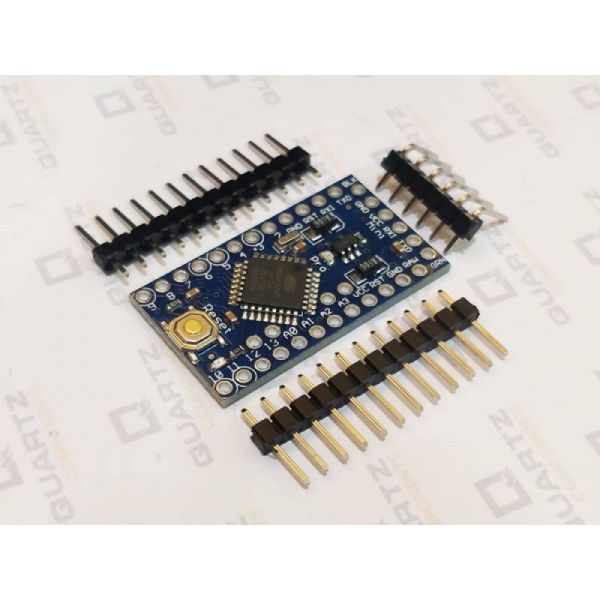

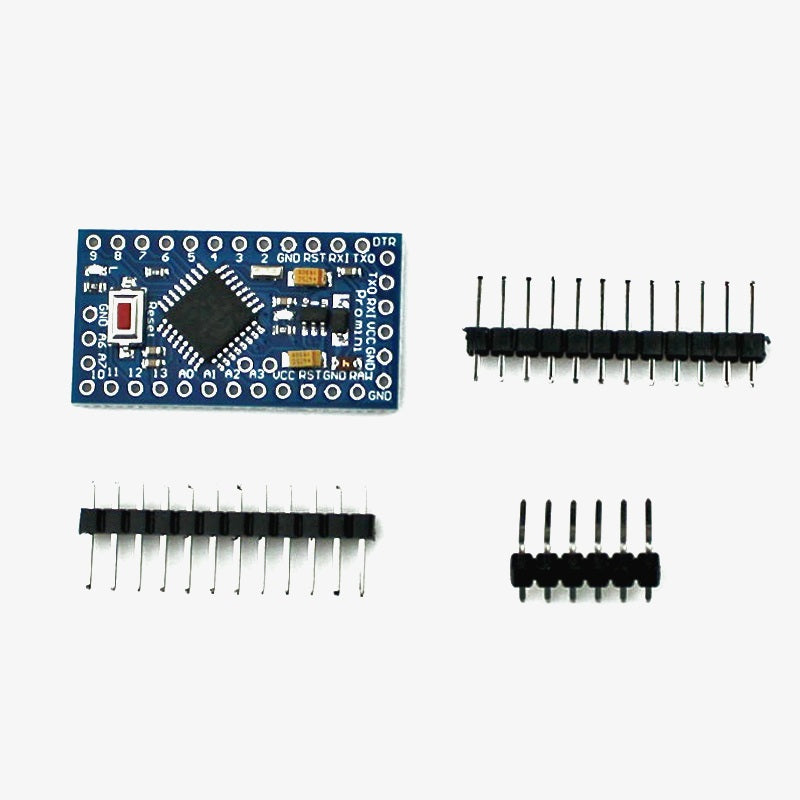

1 x Pro Mini ATMEGA328P 5V/16MHz



Additional Resources

Getting Started with the Arduino Pro Mini

Arduino Pro Mini Tutorial

Arduino Pro Mini is a compact yet powerful Arduino development Board. It works on the same ATmega328 microcontroller like UNO but is the only 1/3rd of the size of UNO. The size is reduced by removing an in-built programmer and the USB port, so pro mini requires an external programmer like an FTDI board to program it. The small size enables the board to be used on a PCB and other final applications.



Apart from the size, the specification of pro mini (5V) and UNO are almost similar and hence they both can exchange the same program.



Note: This version of Pro mini is 5V



Specifications Features

  • Microcontroller: Atmega328p – 8 BIT AVR controller
  • Operating Voltage: 5V
  • Raw Voltage input: 5V to 12V
  • Maximum current through each I/O pin: 40mA
  • Maximum total current drawn from the chip: 200mA
  • Flash Memory: 32Kbytes
  • EEPROM: 1Kbyte
  • Internal RAM: 2Kbytes
  • Clock Frequency: 16 MHz
  • Operating Temperature: -40ºC to +105ºC
  • Supports auto-reset
  • On-board Power and Status LEDs
  • Analog Pins: 8
  • Digital I/Os: 14



Package Includes

1 x Pro Mini ATMEGA328P 5V/16MHz



Additional Resources

Getting Started with the Arduino Pro Mini

Arduino Pro Mini Tutorial
