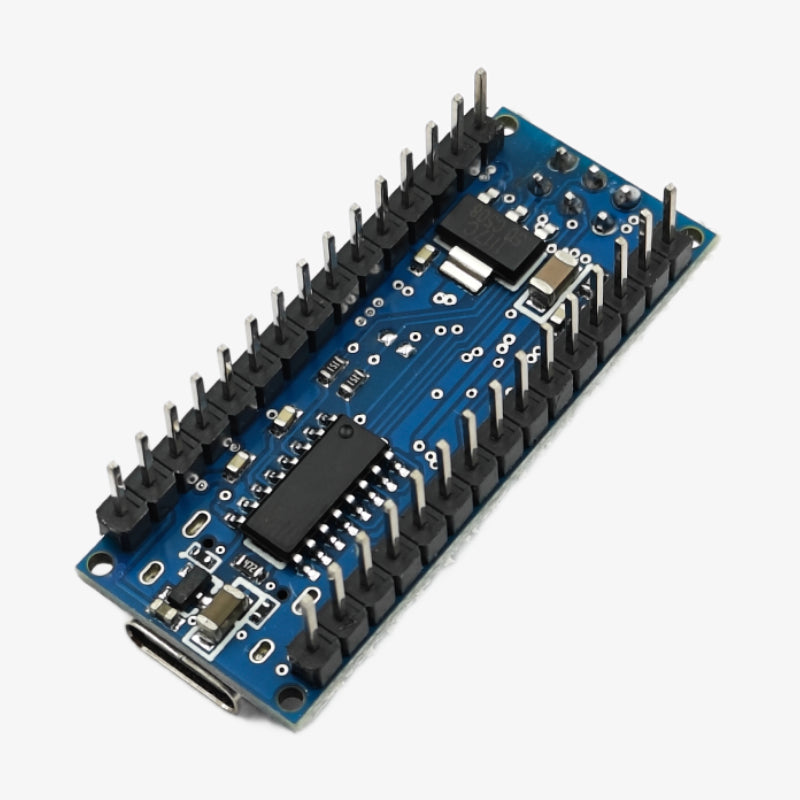

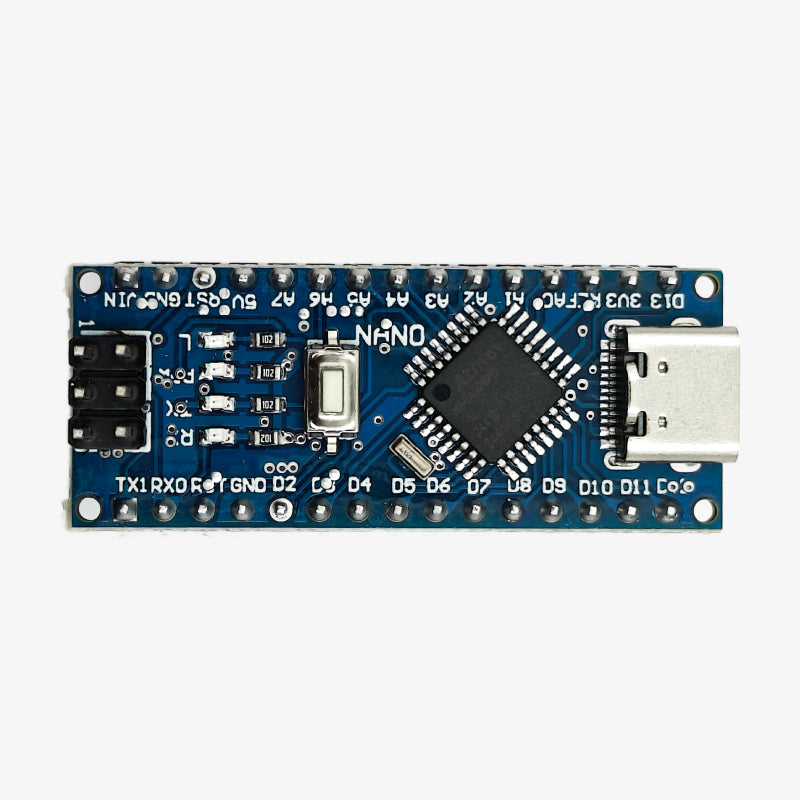

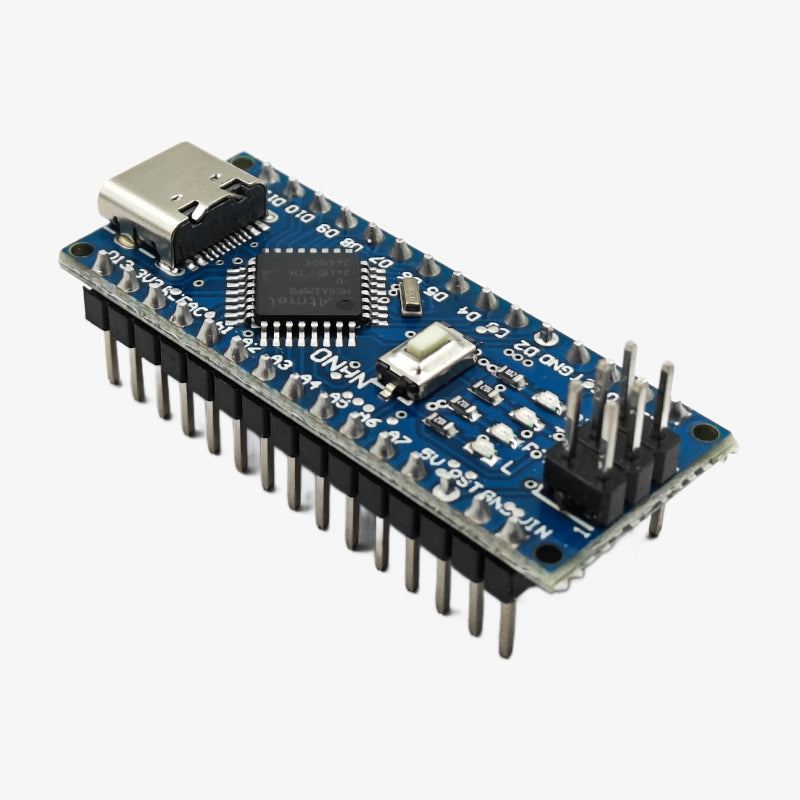

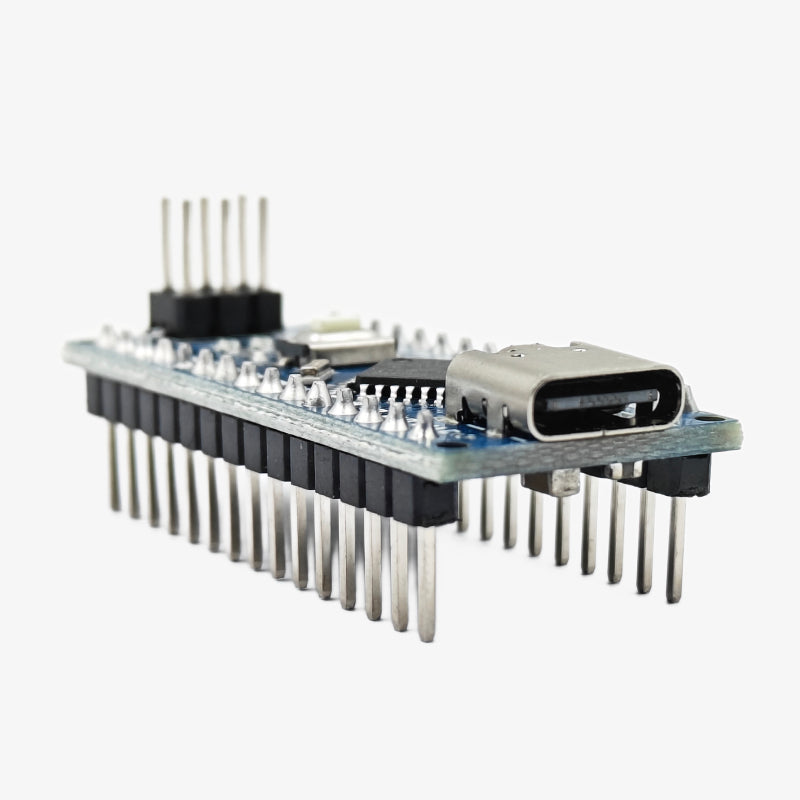

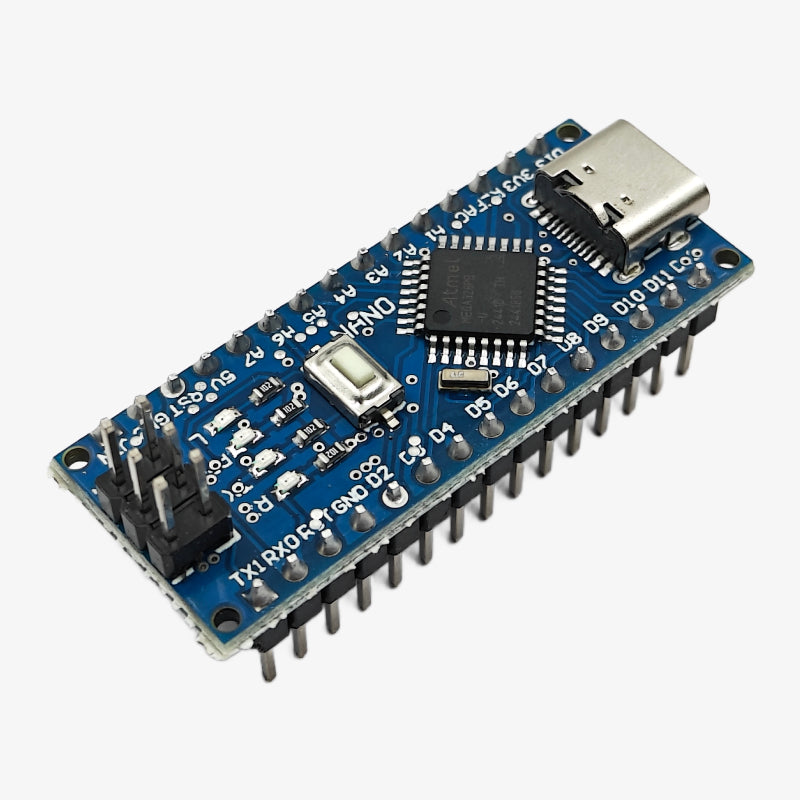

Nano R3 CH340 Chip Development Board-Compatible with Arduino-Type C
SKU:
DVB-QC3364
Availability:
5
In Stock
- Rs. 172.00
- Rs. 172.00
- Unit price
- per
Subtotal:
Rs. 172.00
Description
xThe Arduino Nano with USB Type-C is a compact and breadboard-friendly microcontroller board based on the ATmega328P chipset. This version features a modern USB Type-C connector, providing more durability and easier connection. It includes the CH340 USB-to-Serial converter for reliable PC communication and programming. Ideal for embedded electronics projects, this Nano variant maintains the same I/O layout and performance as the classic Nano but with improved connectivity.
Features of Nano:
- Based on ATmega328P microcontroller
- USB Type-C interface for modern connectivity
- Uses CH340 USB to Serial converter (driver required)
- Compact and breadboard-friendly DIP form factor
- Supports UART, SPI, and I2C communication
- Onboard voltage regulator for stable 5V and 3.3V supply
- Compatible with Arduino IDE
Specifications of Nano:
- Microcontroller: ATmega328P
- USB Interface IC: CH340
- Operating Voltage: 5V
- Input Voltage (recommended): 7–12V
- Digital I/O Pins: 14 (6 PWM outputs)
- Analog Input Pins: 8
- DC Current per I/O Pin: 40 mA
- Flash Memory: 32 KB (ATmega328P), 2 KB used by bootloader
- SRAM: 2 KB
- EEPROM: 1 KB
- Clock Speed: 16 MHz
- USB Connector: Type-C
- Package Type: DIP (dual inline package)
Package Includes:
1 × Arduino Nano with Type-C Port Development Board
