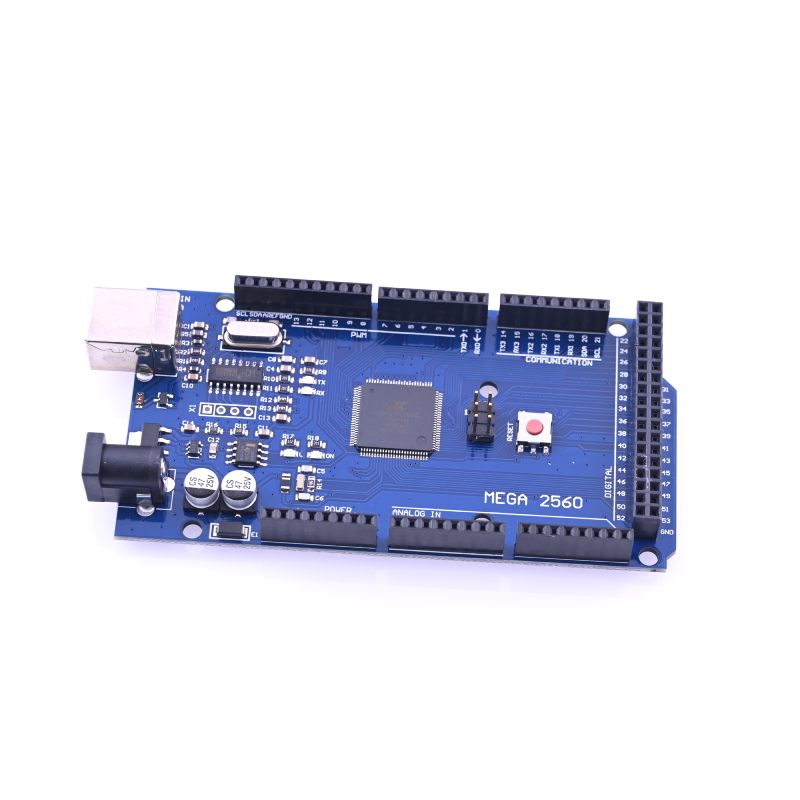

Arduino Mega 2560 R3 (Without Cable) Arduino Mega 2560 R3 (Without Cable)

QC0017

10 In stock

Rs. 751.00
-
+
Rs. 751.00
(inc. GST)

The Arduino Mega 2560 is an open-source microcontroller board based on ATmega2560. Along with this, it also has 54 digital I/O pins, 16 Analog Inputs, 4 UARTs, ICSP Header, 16 MHz Crystal Oscillator, a reset button, USB port, and a DC Power Jack. It is designed for projects which require more I/O lines, more sketch memory, and more RAM. It is best suited for Robotics, 3D printers, RC planes, etc. projects which require many sensors with different communication protocols and actuators to work in tandem. It gets programmed with the help of Arduino IDE and you do not need to attach any other components to program them. Its uses include in DIY projects, IoT based projects, Robotics, Prototyping for Electronic components and systems. The Arduino Microcontroller boards such as Arduino UNO, Arduino Nano, Arduino Leonardo, Arduino Pro Mini have revitalized the Automation Industry with their sheer simplicity and easy to use interface.



Specifications

  • The ATmega2560 is a Microcontroller
  • The operating voltage of this microcontroller is 5V
  • The recommended Input Voltage will range from 7V to 12V
  • The input voltage will range from 6V to 20V
  • The digital input/output pins are 54 where 15 of these pins will supply PWM o/p.
  • Analog Input Pins are 16
  • DC Current for each input/output pin is 40 mA
  • Flash Memory like 256 KB where 8 KB of flash memory is used with the help of bootloader
  • The Static Random Access Memory (SRAM) is 8 KB
  • The electrically erasable programmable read-only memory (EEPROM) is 4 KB
  • The clock (CLK) speed is 16 MHz
  • The USB host chip used in this is MAX3421E
  • The length of this board is 101.52 mm
  • The width of this board is 53.3 mm



Product Description

It hardly takes 5-10 minutes to upload your first program on Arduino Mega Board. You just need a USB A to B cable and Arduino IDE installed on your computer. After installing Arduino IDE, go to Files>Examples>Basics>Blink and compile and upload this on your Board.



Package Contents

1×Arduino Mega 2560 Microcontroller Board



Additional Resources

Getting Started with Arduino Mega 2560

Arduino IDE

The Arduino Mega 2560 is an open-source microcontroller board based on ATmega2560. Along with this, it also has 54 digital I/O pins, 16 Analog Inputs, 4 UARTs, ICSP Header, 16 MHz Crystal Oscillator, a reset button, USB port, and a DC Power Jack. It is designed for projects which require more I/O lines, more sketch memory, and more RAM. It is best suited for Robotics, 3D printers, RC planes, etc. projects which require many sensors with different communication protocols and actuators to work in tandem. It gets programmed with the help of Arduino IDE and you do not need to attach any other components to program them. Its uses include in DIY projects, IoT based projects, Robotics, Prototyping for Electronic components and systems. The Arduino Microcontroller boards such as Arduino UNO, Arduino Nano, Arduino Leonardo, Arduino Pro Mini have revitalized the Automation Industry with their sheer simplicity and easy to use interface.



Specifications

  • The ATmega2560 is a Microcontroller
  • The operating voltage of this microcontroller is 5V
  • The recommended Input Voltage will range from 7V to 12V
  • The input voltage will range from 6V to 20V
  • The digital input/output pins are 54 where 15 of these pins will supply PWM o/p.
  • Analog Input Pins are 16
  • DC Current for each input/output pin is 40 mA
  • Flash Memory like 256 KB where 8 KB of flash memory is used with the help of bootloader
  • The Static Random Access Memory (SRAM) is 8 KB
  • The electrically erasable programmable read-only memory (EEPROM) is 4 KB
  • The clock (CLK) speed is 16 MHz
  • The USB host chip used in this is MAX3421E
  • The length of this board is 101.52 mm
  • The width of this board is 53.3 mm



Product Description

It hardly takes 5-10 minutes to upload your first program on Arduino Mega Board. You just need a USB A to B cable and Arduino IDE installed on your computer. After installing Arduino IDE, go to Files>Examples>Basics>Blink and compile and upload this on your Board.



Package Contents

1×Arduino Mega 2560 Microcontroller Board



Additional Resources

Getting Started with Arduino Mega 2560

Arduino IDE
