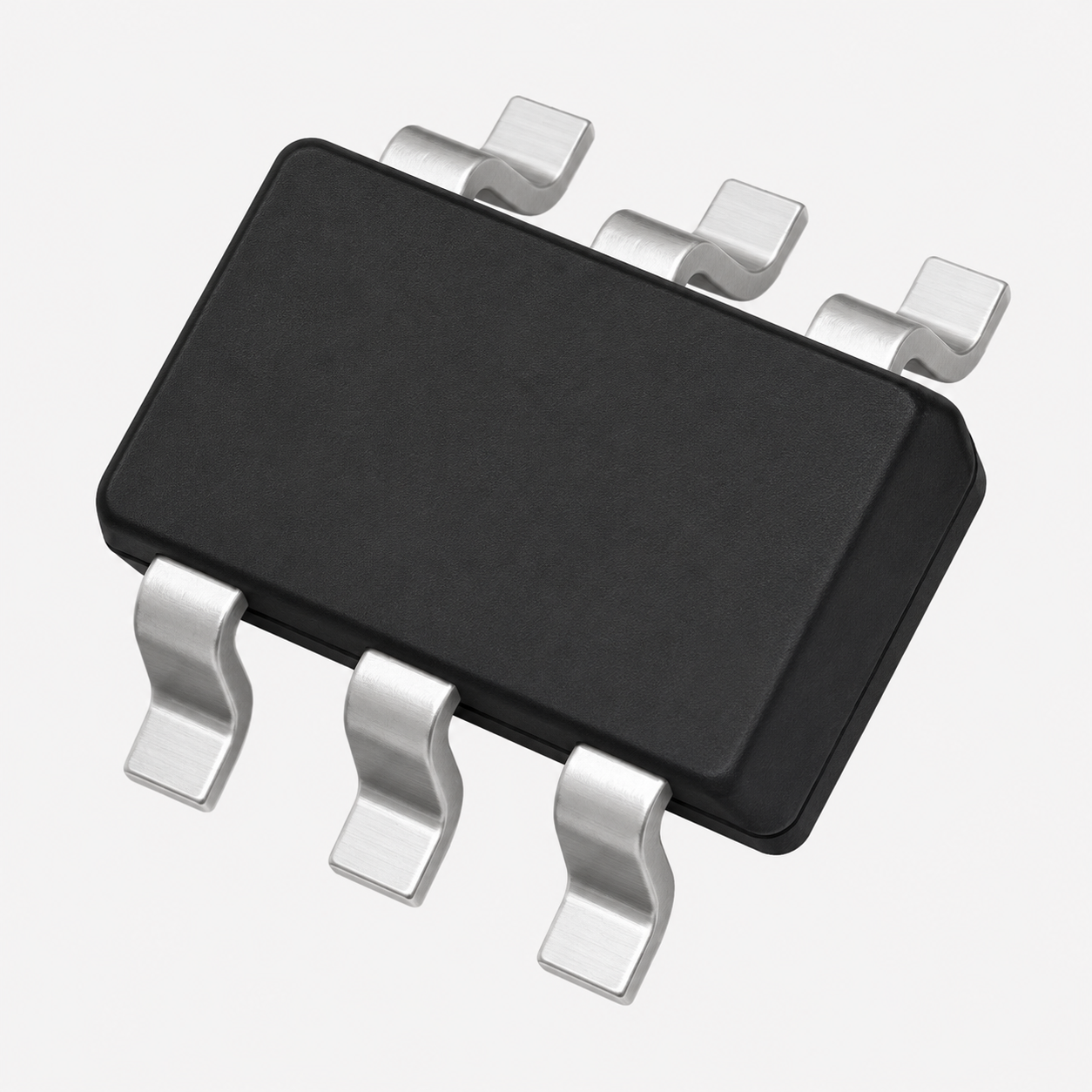

AP63203WU 7 Diodes 3.3V 2A 1-CH Voltage Regulator Buck Converter IC - TSOT-23-6 Package

Brand: Diodes
SKU: SMD-QC5929
Availability: 48 In Stock
Rs. 78.00
Subtotal: Rs. 78.00
Description
Description
x

AP63203WU 7 3.3V 2A 1-CH Voltage Regulator Buck Converter IC is a high-efficiency synchronous step-down (buck) DC-DC converter designed to deliver a fixed 3.3V output with up to 2A continuous output current. Operating from a wide 3.8V to 32V input voltage range, it integrates power MOSFETs, soft-start, and multiple protection features to provide stable and efficient power conversion for industrial, consumer, and embedded electronic applications.

AP63203WU Buck Converter IC Datasheet

Features:

  1. Wide 3.8V to 32V Input Voltage Range
  2. Fixed 3.3V Output Voltage
  3. 2A Continuous Output Current
  4. High-Efficiency Synchronous Buck Converter
  5. Integrated High-Side & Low-Side MOSFETs
  6. 1.1MHz Fixed Switching Frequency
  7. Pulse Frequency Modulation (PFM)
  8. Frequency Spread Spectrum (FSS) for EMI Reduction
  9. 22µA Typical Quiescent Current
  10. Integrated Soft-Start
  11. Enable Pin with Adjustable UVLO
  12. Cycle-by-Cycle Current Limit Protection
  13. Overvoltage Protection (OVP)
  14. Thermal Shutdown Protection
  15. Short-Circuit Protection
  16. TSOT-23-6 Surface Mount Package
  17. RoHS Compliant

Specifications:

Parameter Value
Product Type Synchronous Buck Converter IC
Part Number AP63203WU-7
Package TSOT-23-6
Output Voltage Fixed 3.3V
Output Current 2A Continuous
Input Voltage 3.8V ~ 32V
Maximum Input Voltage 35V (40V Surge)
Switching Frequency 1.1MHz
Control Mode PWM / PFM
High-Side MOSFET 125mΩ
Low-Side MOSFET 68mΩ
Quiescent Current 22µA (Typ.)
Shutdown Current 1µA (Typ.)
Soft-Start 4ms (Typ.)
Enable Threshold 1.18V (Typ.)
Operating Temperature -40°C to +85°C
Mounting Type Surface Mount
RoHS Compliance Yes



Pin Configuration:

Pin Name Description
1 FB Feedback Input
2 EN Enable Input
3 VIN Input Supply
4 GND Ground
5 SW Switching Output
6 BST Bootstrap Supply



Also Check These Out:

AN7112 Audio Power Amplifier IC

TDA2822M Amplifier IC

HT12D (RF Decoder) IC

Package Includes:

1 x AP63203WU Voltage Regulator Buck Converter IC - TSOT-23-6 Package
