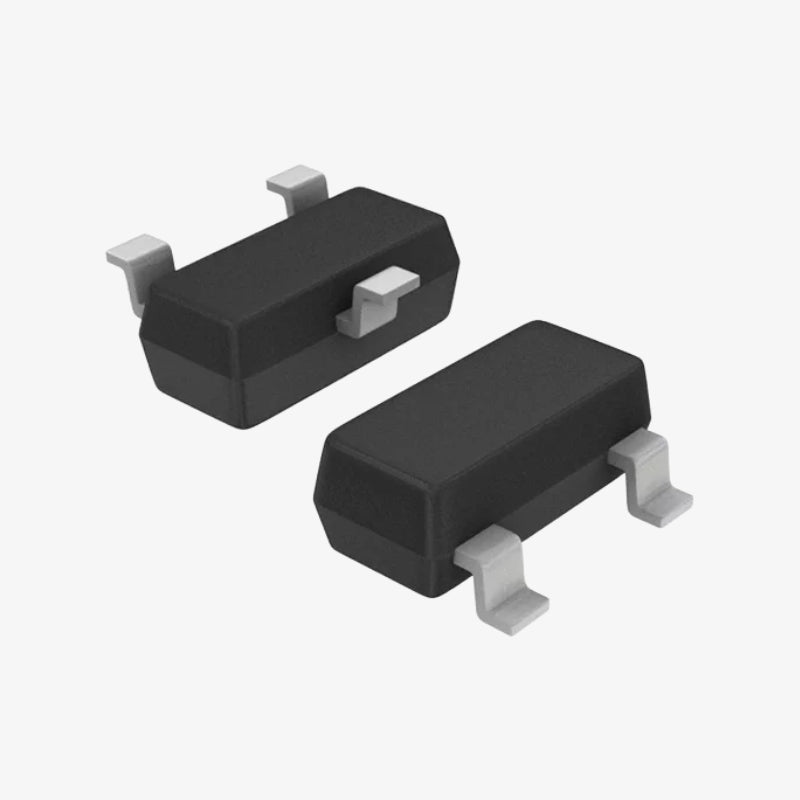

AO3415 P-Channel MOSFET 20V 4A - SOT-23 SMD Package
SKU:
SMD-QC3318
Availability:
122
In Stock
- Rs. 4.00
- Rs. 4.00
- Unit price
- per
Subtotal:
Rs. 4.00
Description
xThe AO3415 is a P-channel MOSFET designed for low-voltage, high-efficiency switching applications. With a drain-source voltage rating of 20V and a continuous drain current of 4A, it offers excellent switching performance in a compact SOT-23 surface-mount package. It is commonly used in power management circuits, load switches, and battery-powered devices.
Features of AO3415 P-Channel MOSFET:
- P-channel enhancement mode MOSFET
- Low on-resistance for efficient switching
- High current handling capability of up to 4A
- Ideal for use in load switches and power management applications
- Compact SOT-23 package for space-constrained designs
Specifications of AO3415 P-Channel MOSFET:
- Model: AO3415
- Type: P-Channel Power MOSFET
- Drain-Source Voltage (VDS): -20V
- Continuous Drain Current (ID): -4A
- Gate Threshold Voltage (VGS(th)): -0.5V to -1.4V
- RDS(on): 0.045Ω (max) at VGS = -4.5V
- Total Gate Charge (Qg): ~13nC
- Package: SOT-23 – SMD
- Power Dissipation: 1.5W
- Operating Temperature Range: -55°C to +150°C
Package Includes:
1 × AO3415 P-Channel MOSFET 20V 4A – SOT-23 Package
