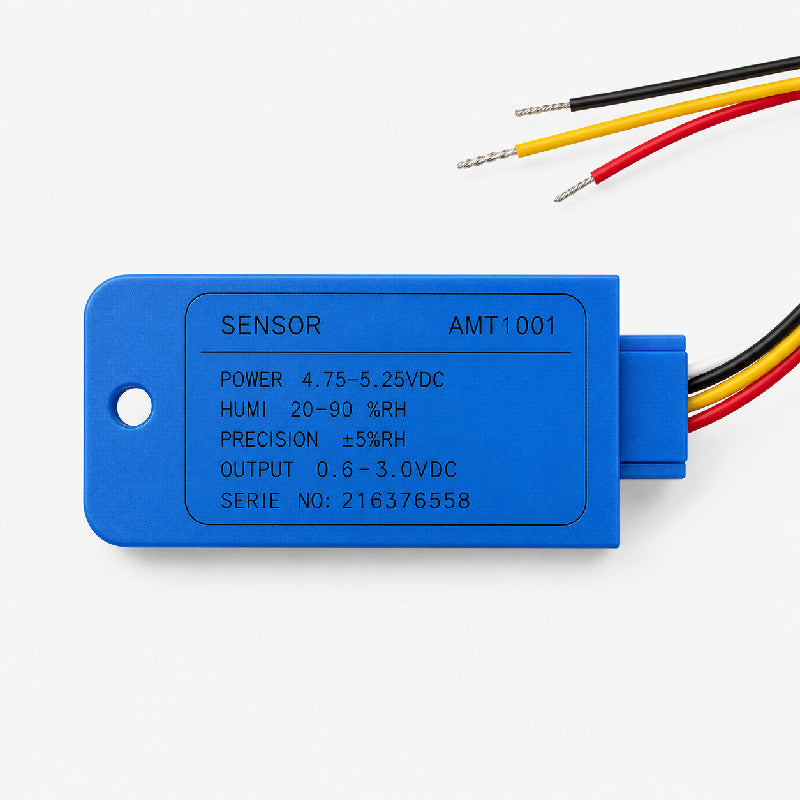

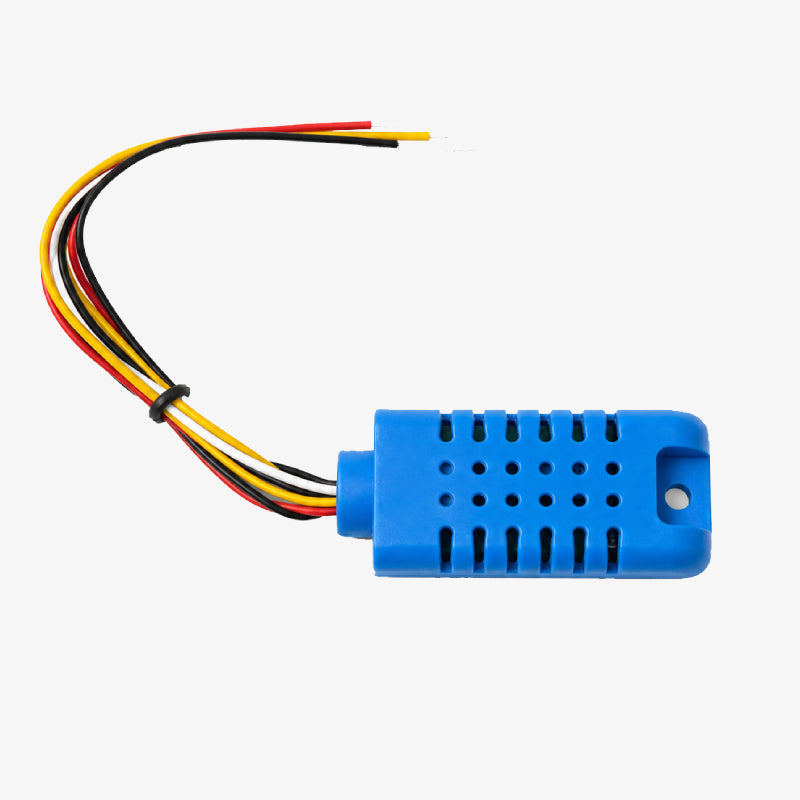

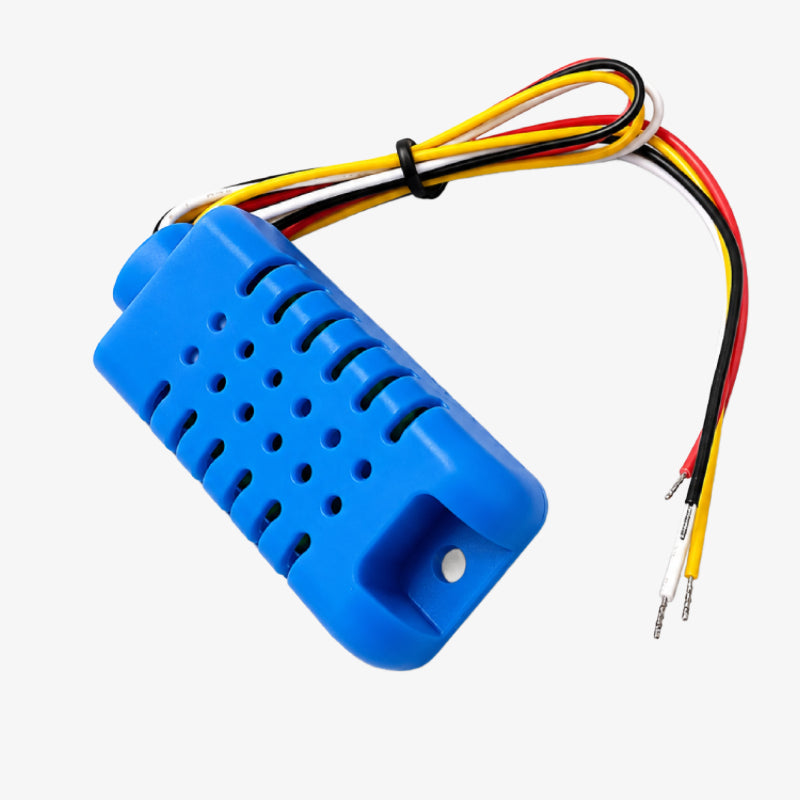

AMT1001 Resistive Humidity & Temperature Sensor Module
SKU:
MOD-QC6198
Availability:
35
In Stock
-
- Rs. 206.00
- Unit price
- per
Subtotal:
Rs. 206.00
Description
xAMT1001 Resistive Humidity & Temperature Sensor Module is an integrated resistive humidity and temperature sensor module that provides analog voltage outputs for measuring environmental humidity and temperature. It operates from a 5V DC supply and uses temperature compensation and single-chip calibration to provide a linear humidity output. The module measures approximately 20–90% RH and 0–60°C, making it suitable for microcontroller-based environmental monitoring, HVAC systems, agriculture, industrial control, and other electronics projects.
AMT1001 Resistive Humidity & Temperature Sensor Module Datasheet
Features:
- Integrated resistive humidity and temperature sensing.
- Analog voltage output for easy connection to microcontroller ADC inputs.
- Temperature-compensated humidity measurement.
- Single-chip calibrated linear humidity output.
- Low power consumption of approximately 2mA.
- Wide humidity measurement range.
- Suitable for long-distance signal transmission.
- Fully interchangeable sensor module design.
- Compact and lightweight construction.
- Humidity output is approximately 0–3V DC.
- Temperature sensing uses an NTC10K thermistor.
- Suitable for Arduino, microcontrollers, data loggers, and monitoring systems.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Resistive Humidity & Temperature Sensor Module |
| Model | AMT1001 |
| Sensor Type | Resistive Humidity + Temperature |
| Humidity Sensing Element | Polymer Resistive Sensor |
| Temperature Sensing Element | NTC10K Thermistor |
| Supply Voltage | 4.75–5.25V DC |
| Recommended Supply Voltage | 5V DC |
| Current Consumption | Approx. 2mA |
| Maximum Current Consumption | Approx. 5mA |
| Humidity Measurement Range | 20–90% RH |
| Humidity Operating Range | 20–95% RH* |
| Humidity Accuracy | ±5% RH @ 25°C |
| Humidity Repeatability | ±1% RH |
| Humidity Hysteresis | Approx. ±0.3% RH |
| Humidity Response Time | <5s @ 63% response |
| Humidity Output Voltage | 0–3V DC |
| Humidity Output Impedance | Approx. 5kΩ |
| Humidity Output Resolution | Approx. 1% RH |
| Temperature Measurement Range | 0–60°C |
| Temperature Sensor | NTC10K |
| NTC Resistance @ 25°C | 10kΩ |
| NTC B-Value | 3435K |
| Temperature Resolution | Approx. 1°C |
| Temperature Accuracy | Sensor-dependent / NTC based |
| Humidity Sampling Period | Approx. 3s |
| Long-Term Humidity Drift | Typically <0.5% RH/year |
| Storage Temperature | 0–60°C |
| Storage Humidity | ≤95% RH, Non-Condensing |
| Cable Length | Approx. 23cm |
| Module Length | Approx. 60mm |
| Module Width | Approx. 27mm |
| Module Height | Approx. 13.5mm |
| Weight | Approx. 15g |
| Output Type | Analog Voltage |
| Mounting Type | PCB / Wired Sensor Module |
| Application Interface | Microcontroller ADC |
| Operating Environment | Non-Condensing |
| Calibration | Single-Chip / Factory Calibrated |
Pin Configuration:
| Pin | Wire Color | Name | Description |
|---|---|---|---|
| 1 | Red | VDD | +5V DC Power Supply |
| 2 | Yellow | HOUT | Analog Humidity Output, 0–3V DC |
| 3 | Black | GND | Ground |
| 4 | White | TOUT | Temperature Output / NTC10K Thermistor |
Also Check These Out:
B3950 10K NTC Thermistor Temperature Sensor 5*25mm with XH2.54 Connector
Analog TDS Water Quality Meter V1.0 Sensor for Arduino
Elecrow Crowtail Capacitive Moisture Sensor V2.0 for Arduino & IoT
FSR402 Force Sensing Resistors 14.7mm Round Pressure Sensor 0.5 Inch
Package Includes:
1 × AMT1001 Resistive Humidity & Temperature Sensor Module
