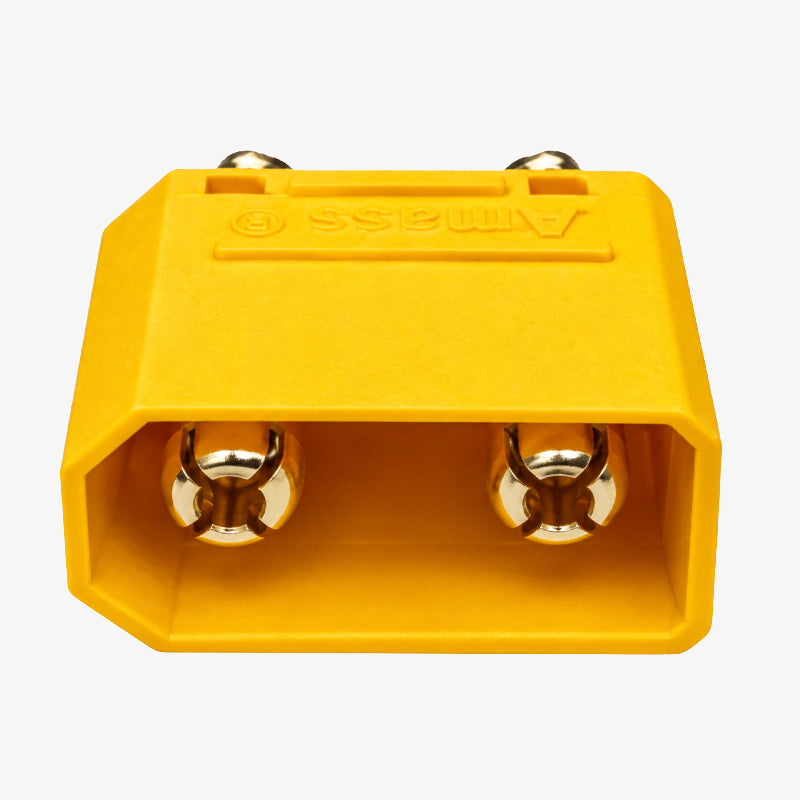

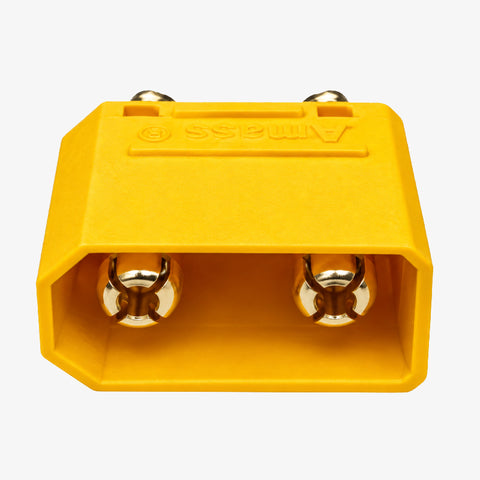

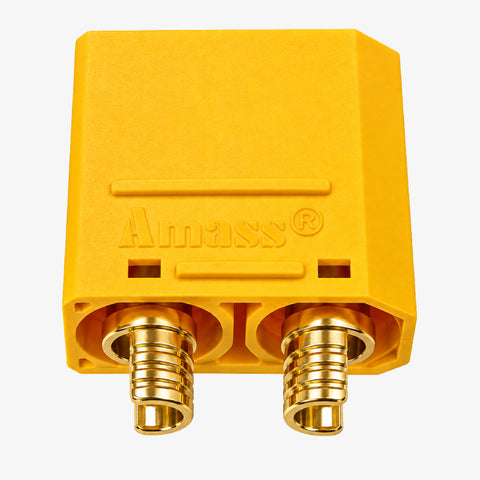

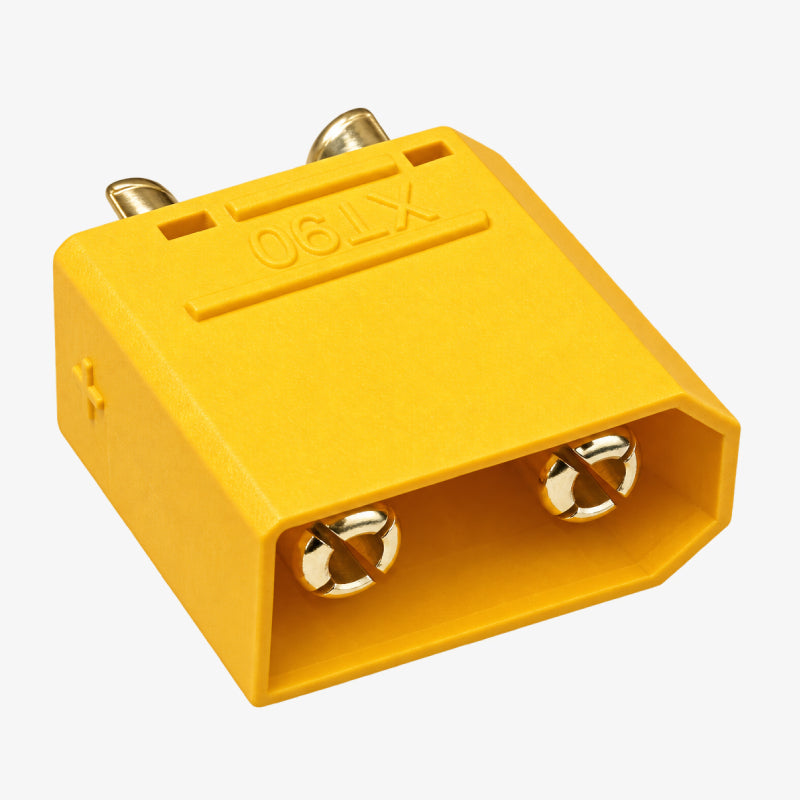

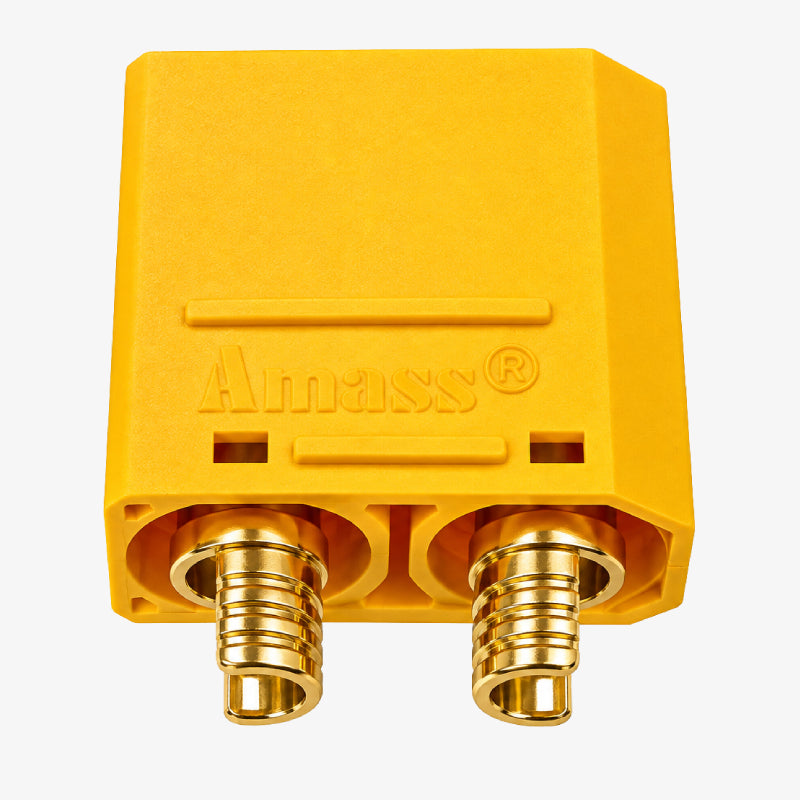

Amass XT90 Male Connector Without Housing
SKU:
CNX-QC6382
Availability:
50
In Stock
-
- Rs. 64.00
- Unit price
- per
Subtotal:
Rs. 64.00
Description
xAmass XT90 Male Connector Without Housing is a high-current, two-pole DC power connector designed for reliable battery and power connections in drones, RC vehicles, robotics, and other battery-powered equipment. It features gold-plated metal contacts and solder terminals for connecting power wires. The keyed connector design helps prevent incorrect mating orientation. This version is supplied without the protective housing, making it suitable for custom wiring and connector assembly where external insulation can be provided separately.
Features:
- Male connector compatible with the matching XT90 female connectors
- Two-pole design for positive and negative power connections
- Gold-plated contacts for reliable electrical connection
- Solder terminals for direct wire attachment
- 4.5mm contact size
- Supports high-current DC power connections
- Keyed mating design helps prevent incorrect connection orientation
- Suitable for battery packs, chargers, ESCs, drones, and RC vehicles
- Compact connector design for custom power wiring
- Supplied without the external protective housing
Specifications:
| Specification | Value |
|---|---|
| Brand | Amass |
| Series | XT90 |
| Connector Type | DC power connector |
| Connector Gender | Male |
| Number of Poles | 2 |
| Contact Size | 4.5mm |
| Contact Material | Metal with gold plating |
| Connection Method | Soldering |
| Continuous Current Rating | 45A |
| Maximum Peak Current | 90A |
| Rated Voltage | 500V DC |
| Insulation Resistance | ≥2000MΩ |
| Operating Temperature | -20°C to +120°C |
| Housing | Not included |
| Compatible Connector | XT90 Female |
| Applications | Battery packs, drones, RC vehicles, ESCs, and power systems |
Also Check These Products:-
XT-60 Male to Female Connector with 14AWG Silicone Wire
XT-60 Male Connector to DC Jack Male & Female Pair Connector
Package Includes:
1 × Amass XT90 Male Connector Without Housing
