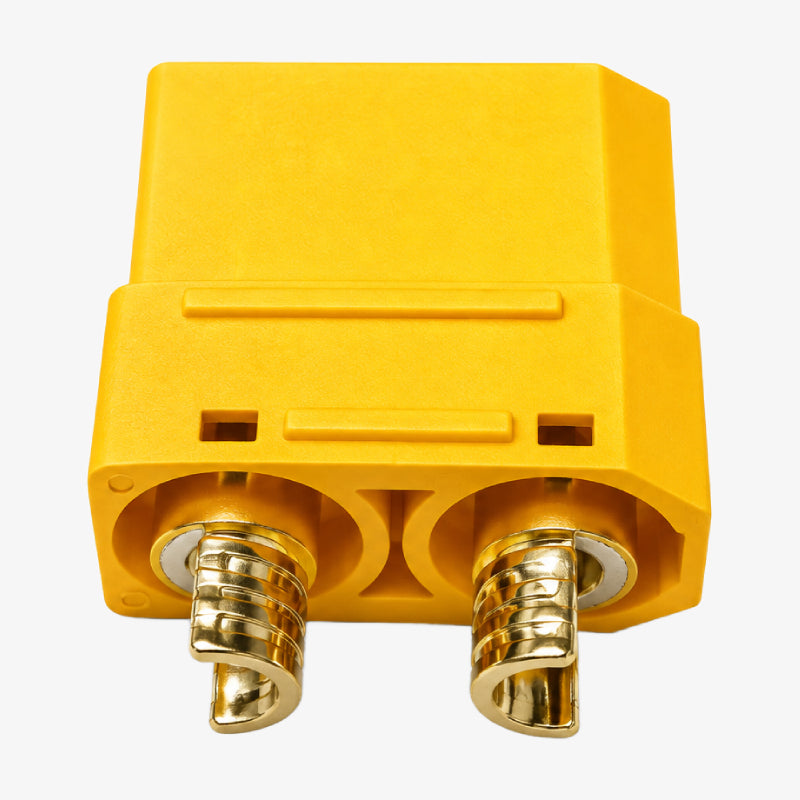

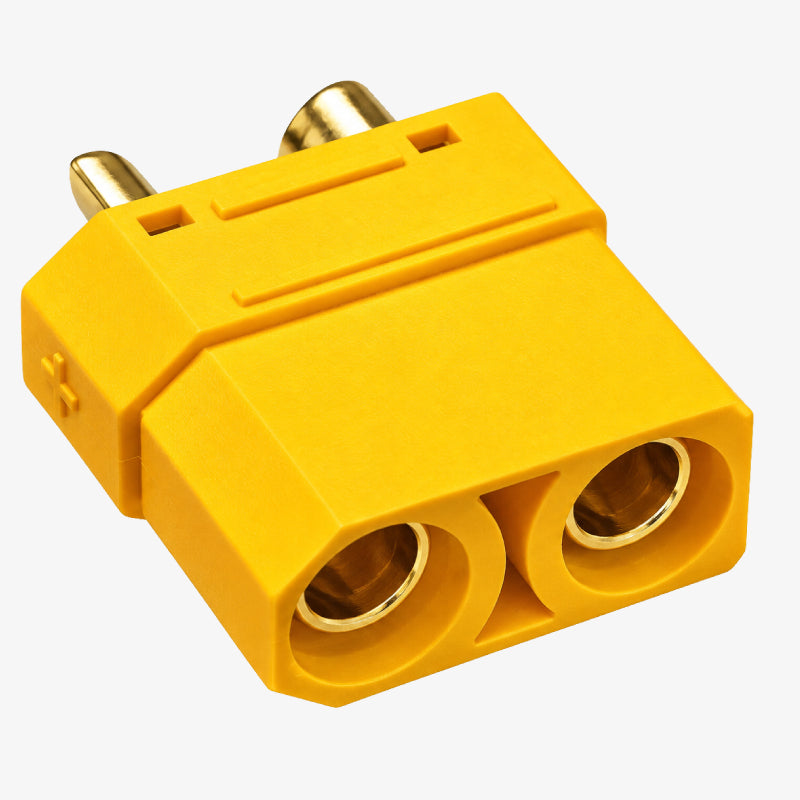

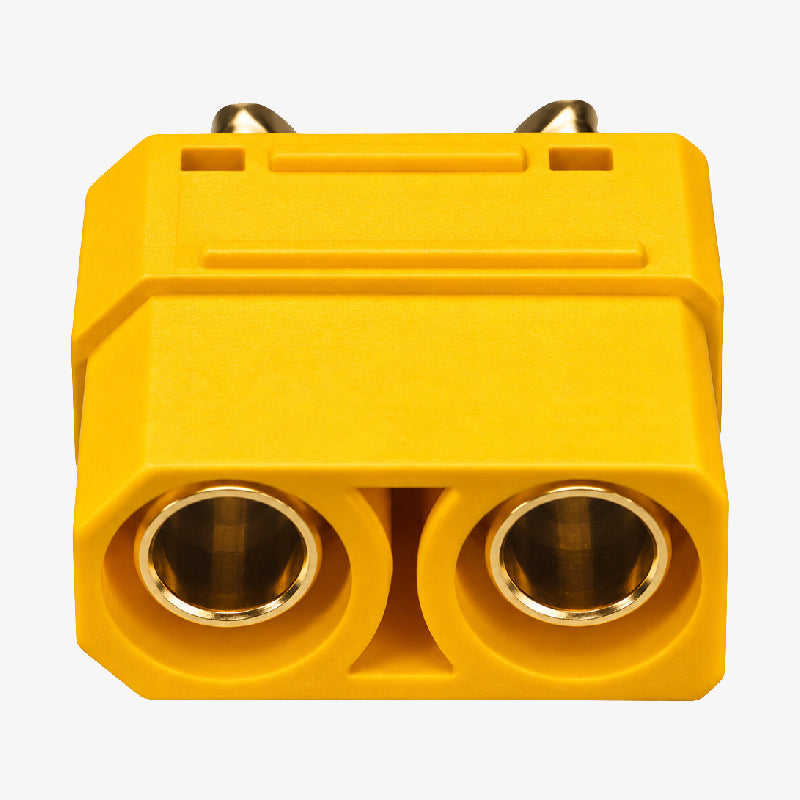

Amass XT90 Female Connector Without Housing
SKU:
CNX-QC6383
Availability:
50
In Stock
-
- Rs. 64.00
- Unit price
- per
Subtotal:
Rs. 64.00
Description
xAmass XT90 Female Connector Without Housing is a high-current, two-pole DC power connector designed for battery packs, RC vehicles, drones, and other power electronics applications. It features gold-plated metal contacts and solder terminals compatible with 8 AWG wire, enabling low-resistance power connections. The keyed connector design helps prevent reverse mating, while the housing-free configuration is suitable for custom connector assembly where external insulation is provided separately.
Features:
- Female connector compatible with the matching XT90 male connector
- Two-pole configuration for positive and negative DC power connections
- Gold-plated contacts for reduced contact resistance
- Solder terminals for direct wire attachment
- Compatible with 8 AWG power wire
- 4.5mm contact size
- Designed for high-current battery and power connections
- Keyed mating profile helps prevent incorrect orientation
- Suitable for drones, RC vehicles, battery packs, ESCs, and chargers
- Housing-free configuration for custom assembly
Specifications:
| Specification | Value |
|---|---|
| Brand | Amass |
| Series | XT90 |
| Connector Type | DC power connector |
| Connector Gender | Female |
| Number of Poles | 2 |
| Contact Size | 4.5mm |
| Compatible Wire Gauge | 8 AWG |
| Connection Method | Soldering |
| Contact Material | Gold-plated metal |
| Continuous Current Rating | 45A |
| Peak Current Rating | 90A |
| Rated Voltage | 500V DC |
| Contact Resistance | ≤0.40mΩ |
| Insulation Resistance | ≥2000MΩ |
| Operating Temperature | -20°C to +120°C |
| Housing | Not included |
| Compatible Connector | XT90 Male |
| Applications | Battery packs, drones, RC vehicles, ESCs, and DC power systems |
Also Check These Products:-
XT-60 Male to Female Connector with 14AWG Silicone Wire
XT-60 Male Connector to DC Jack Male & Female Pair Connector
Package Includes:
1 × Amass XT90 Female Connector Without Housing
