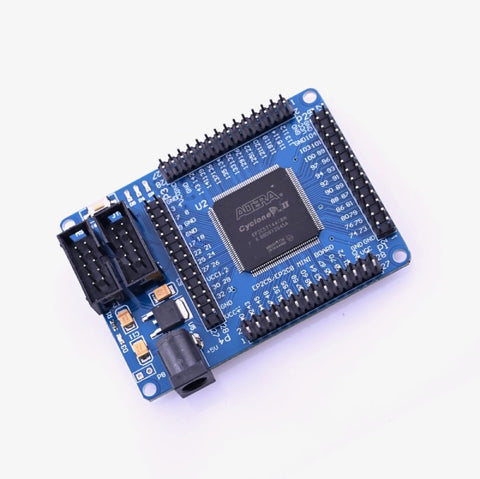

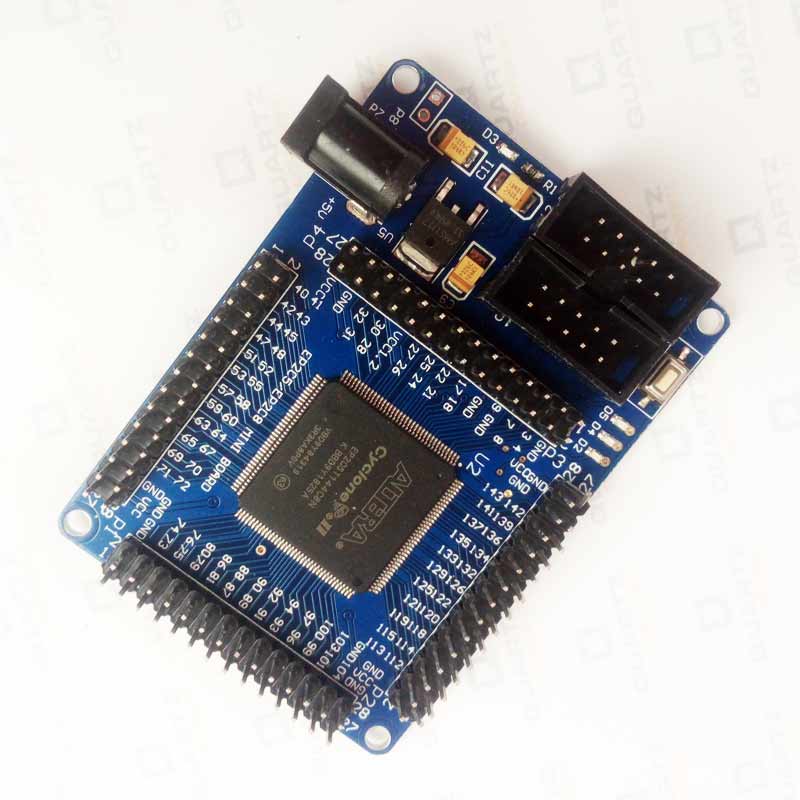

ALTERA FPGA Cyclone II EP2C5T144 Development Board ALTERA FPGA Cyclone II EP2C5T144 Development Board

QC0492

2 In stock

Rs. 2,106.00
-
+
Rs. 2,106.00
(inc. GST)

This development board is a low cost board which lets you foray into the world of FGPAs and Programmable Logic. It has a 144 pin Altera Cyclone II (EP2C5ST144C8N) IC which is a very powerful microcontroller and 89 user usable I/O pins which can be used to interface many devices at once like peripherals, memories and other expansion modules. It has a 50MHz onboard oscillator for internal clock source. It also has user configurable LEDs to determine and debug the programming issues and also to show the power Status. This can be used in various applications like Simple Logic Control, Mathematical Calculators, Data Acquisition and transmission etc.

Specifications

  • On-board 3.3V & 1.2V regulators.
  • Single 5V power source via 2.1mm DC barrel jack connector
  • 3x programmable user LEDs and Power LED on-board
  • On-board 50MHz oscillator
  • Reset button
  • JTAG interface and 4Mb EEPROM
  • ASP serial programming interface with on board EPCS4 storage
  • Compatible with the Altera Quartus 2
  • Support NiosII embedded CPU development

Product Description

ALTERA FPGA Cyclone II EP2C5T144 Development Board Pinout

While using the board always keep in mind that the current requirement may exceed the current capacity of the DC supply then you must provide separate power source for individual applications.

Package Contents

1× ALTERA FPGA CycloneII EP2C5T144 learning development board

This development board is a low cost board which lets you foray into the world of FGPAs and Programmable Logic. It has a 144 pin Altera Cyclone II (EP2C5ST144C8N) IC which is a very powerful microcontroller and 89 user usable I/O pins which can be used to interface many devices at once like peripherals, memories and other expansion modules. It has a 50MHz onboard oscillator for internal clock source. It also has user configurable LEDs to determine and debug the programming issues and also to show the power Status. This can be used in various applications like Simple Logic Control, Mathematical Calculators, Data Acquisition and transmission etc.

Specifications

  • On-board 3.3V & 1.2V regulators.
  • Single 5V power source via 2.1mm DC barrel jack connector
  • 3x programmable user LEDs and Power LED on-board
  • On-board 50MHz oscillator
  • Reset button
  • JTAG interface and 4Mb EEPROM
  • ASP serial programming interface with on board EPCS4 storage
  • Compatible with the Altera Quartus 2
  • Support NiosII embedded CPU development

Product Description

ALTERA FPGA Cyclone II EP2C5T144 Development Board Pinout

While using the board always keep in mind that the current requirement may exceed the current capacity of the DC supply then you must provide separate power source for individual applications.

Package Contents

1× ALTERA FPGA CycloneII EP2C5T144 learning development board
