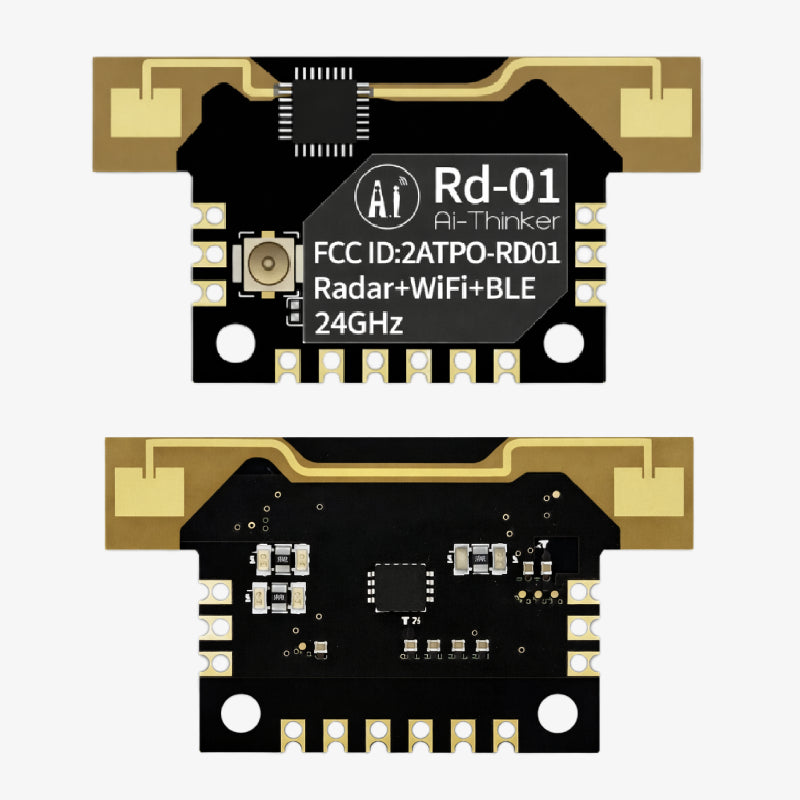

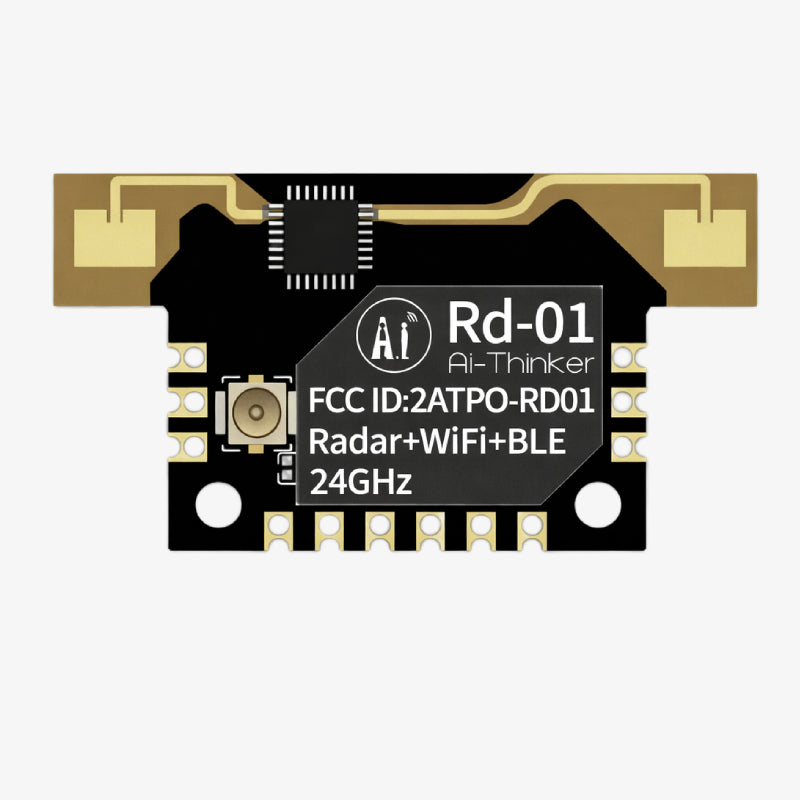

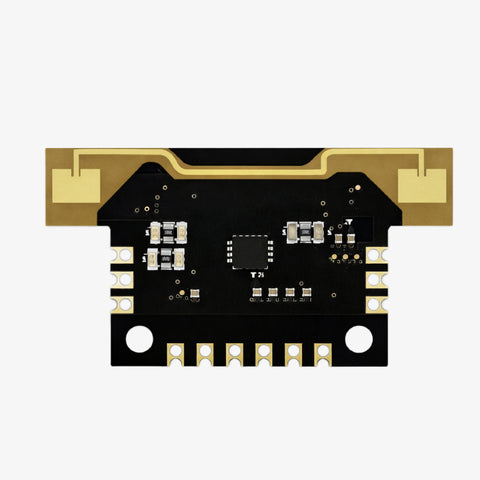

Ai Thinker (RD-01) WiFi 6+ Bluetooth Combo 24G Radar Human Body Induction Module

Ai Thinker (RD-01) WiFi 6+ Bluetooth Combo 24G Radar Human Body Induction Module is an advanced human presence sensing module that combines 24 GHz radar technology with Wi-Fi and Bluetooth connectivity, enabling accurate motion and presence detection up to 5 meters, intelligent radar parameter adjustment via Bluetooth, flexible installation options, and secure wireless communication, making it ideal for smart home automation, security systems, and IoT-based sensing applications.

Features:

1. 24 GHz radar sensing for human body detection
2. Maximum sensing range up to 5 meters
3. Supports intelligent radar parameter adjustment via Bluetooth
4. Integrated Wi-Fi and BLE connectivity
5. Multiple installation options including ceiling and wall mounting
6. Secure Wi-Fi support with WPA/WPA2/WPA3
7. Compact SMD-12 package design

Specifications:

• Product Type: Radar Human Body Induction Module
• Model: RD-01
• Radar Frequency Band: 24 GHz ISM
• Maximum Sensing Range: 5 m
• Wireless Standards: IEEE 802.11 b/g/n
• Wi-Fi Bandwidth: 20 MHz
• Maximum Data Rate: 72.2 Mbps
• Wi-Fi Security: WPS, WEP, WPA, WPA2 Personal, WPA2 Enterprise, WPA3
• Bluetooth: BLE
• Antenna Type: Radar on-board antenna, Wi-Fi & BLE IPEX
• Mounting Type: SMD
• Package Type: SMD-12
• Applications: Smart home automation, human presence detection, security systems, IoT sensing, intelligent lighting and appliances

Package Includes:

1 × Ai Thinker (RD-01) WiFi 6+ Bluetooth Combo 24G Radar Human Body Induction Module
