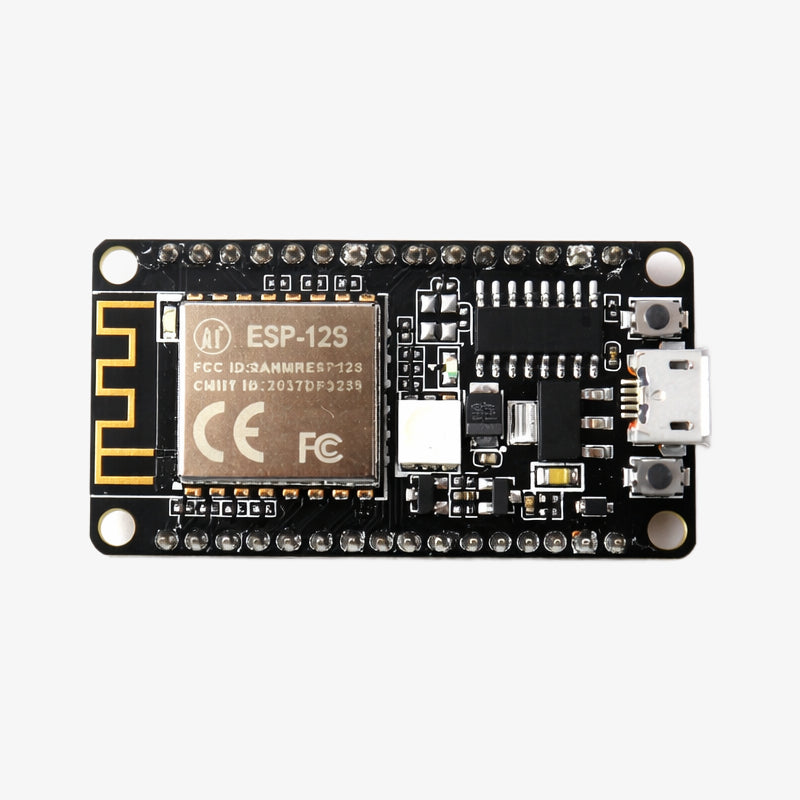

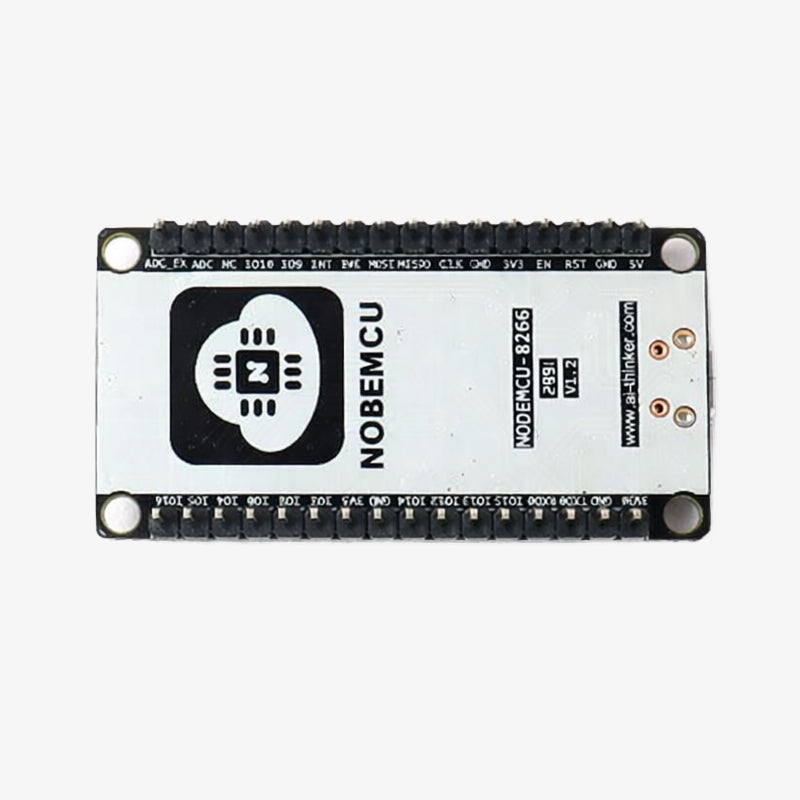

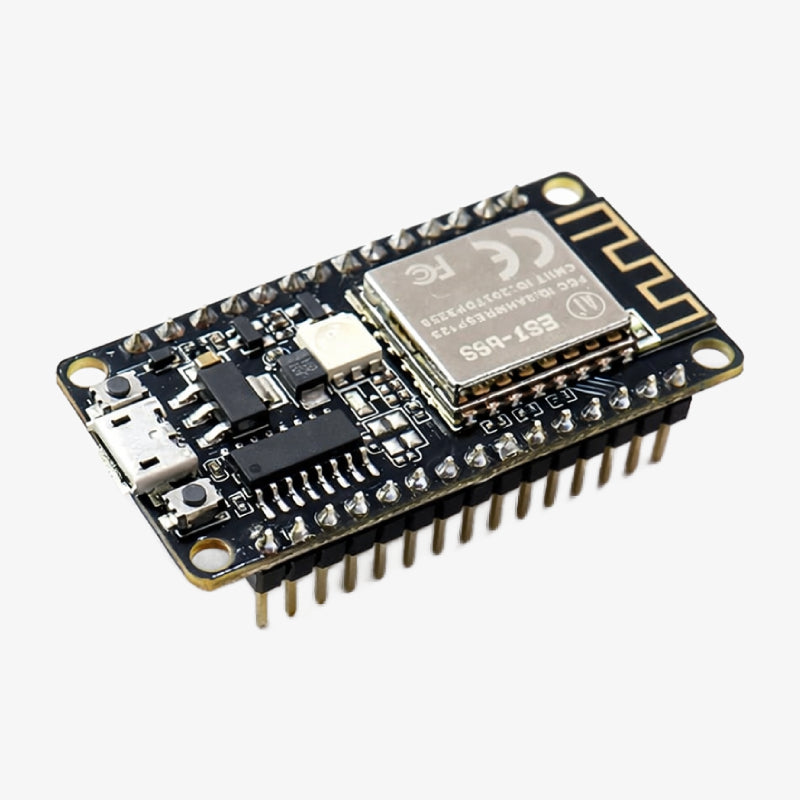

Ai Thinker NodeMCU-ESP8266 WiFi Module Development Board

Ai Thinker Node (MCU-ESP8266) WiFi Module Development Board is a compact and versatile development board based on the ESP8266 microcontroller, featuring the ESP-12S/ESP-12F WiFi module, integrated CP2102 USB-to-serial interface, 32Mbit onboard flash memory, and rich peripheral support, making it ideal for IoT development, wireless communication projects, home automation, and embedded systems prototyping.

Features:

1. Based on ESP8266 MCU with ESP-12S/ESP-12F WiFi module
2. Integrated CP2102 USB-to-serial chip
3. 32Mbit built-in flash memory
4. Onboard PCB antenna for stable wireless connectivity
5. Supports Station, SoftAP, and SoftAP+Station modes
6. Multiple peripheral interfaces including UART, SPI, I2C, GPIO, ADC, and PWM
7. Suitable for IoT and embedded wireless applications

Specifications:

• Product Type: WiFi Development Board
• Module: ESP-12S / ESP-12F
• Processor: ESP8266
• USB Interface Chip: CP2102
• Flash Memory: 32 Mbit
• WiFi Standard: IEEE 802.11 b/g/n
• Frequency Range: 2.4 GHz to 2.5 GHz
• WiFi Mode: Station / SoftAP / SoftAP+Station
• Power Supply: 5 V
• Logic Level: 3.3 V
• Peripheral Interfaces: UART, SPI, I2C, SDIO, GPIO, ADC, PWM
• Applications: IoT devices, home automation, wireless sensors, smart control systems, embedded WiFi projects

Explore AI Thinker Modules featuring ESP8266 and ESP32 chipsets with WiFi, Bluetooth, and RF capabilities, perfect for IoT development, wireless communication, automation systems, and embedded engineering projects.

Package Includes:

1 × Ai Thinker Node MCU-ESP8266 WiFi Module Development Board
