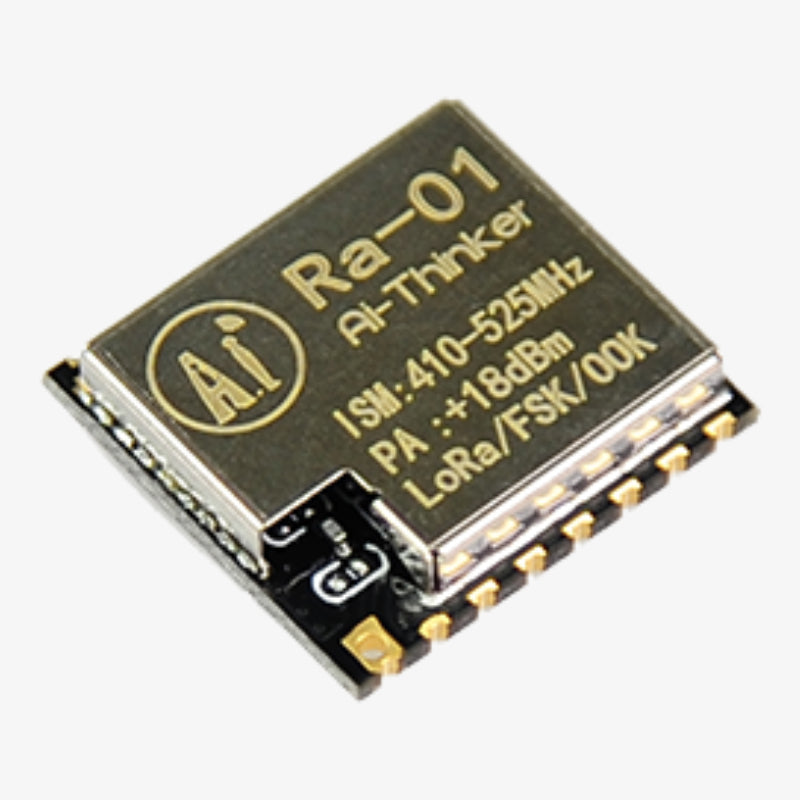

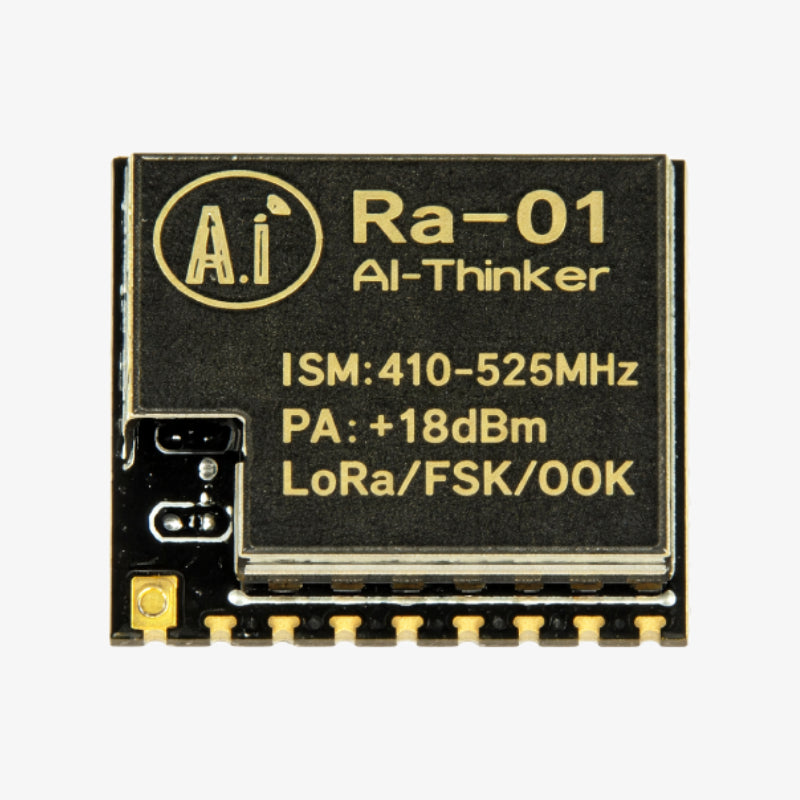

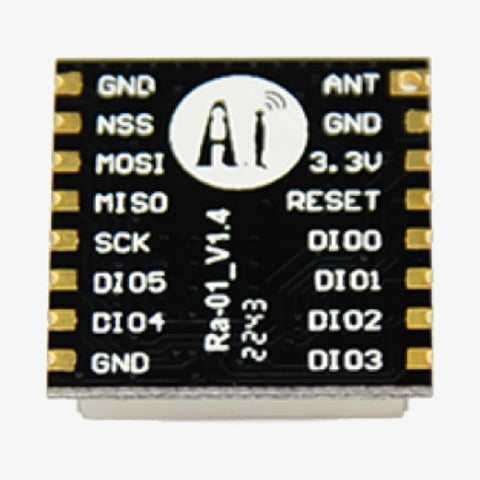

Ai Thinker LoRa-Ra-01 RF Transceiver Module

The Ai-Thinker LoRa Ra-01 RF Transceiver Module is a long-range, low-power wireless communication module based on the Semtech SX1278 LoRa chip. Designed for IoT, smart metering, remote monitoring, and industrial control applications, the Ra-01 provides reliable communication over several kilometers with excellent interference immunity. Operating in the 433MHz ISM band, this module supports LoRa spread spectrum modulation, offering high sensitivity and strong anti-interference capability. It is ideal for low-data-rate applications where long-distance transmission and ultra-low power consumption are essential.

Ai Thinker LoRa-Ra-01 RF Transceiver Module Datasheet

Features:

1. Based on Semtech SX1278 LoRa transceiver
2. Operates in 433MHz ISM band
3. Long-range communication (up to several kilometers in open area)
4. High receiver sensitivity (up to -148 dBm typical)
5. Low power consumption for battery-operated systems
6. Supports LoRa modulation and FSK/OOK modes
7. SPI interface for easy integration with microcontrollers
8. Compact SMD module for embedded applications

Specifications:

• Module Model: Ra-01

• Package: SMD-16

• Size: 17 × 16 × (3.2 ± 0.1) mm

• Interface: SPI

• Programmable bit rate: Up to 300 Kbps

• Frequency Range: 410–525 MHz

• Max Transmit Power: 18 ±1 dBm

• 433 MHz: TX: 93 mA, RX: 12.15 mA, Standby: 1.6 mA
• 470 MHz: TX: 97 mA, RX: 12.15 mA, Standby: 1.5 mA
• Power Supply: 2.5–3.7 V (Typical 3.3 V)

• Operating Temperature: -30°C to 85°C

• Storage Environment: -40°C to 90°C, <90% RH

• Weight: 0.45 g

Package Includes:

1 × Ai-Thinker LoRa Ra-01 RF Transceiver Module
