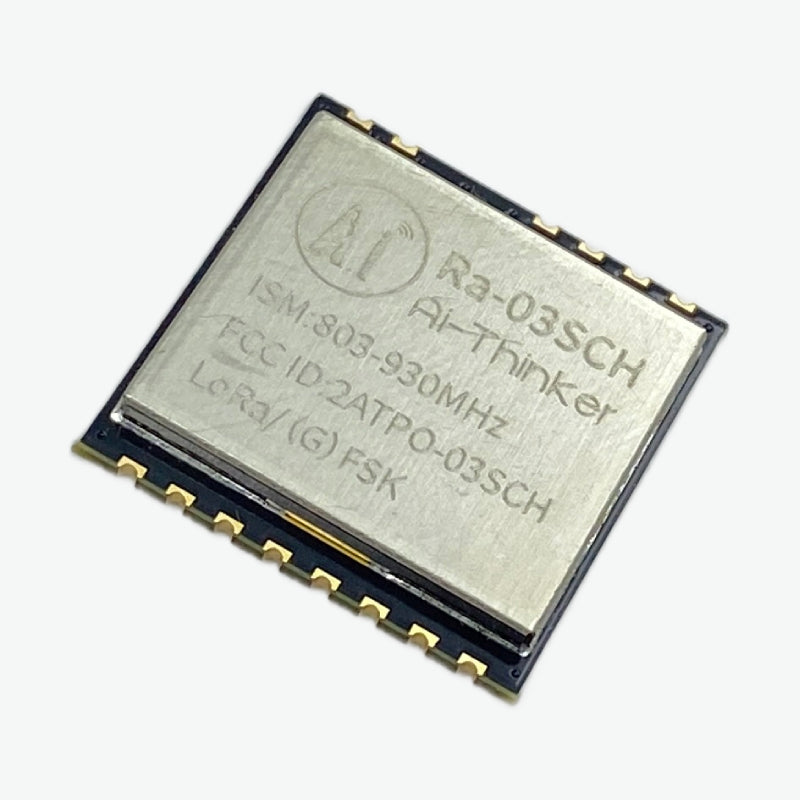

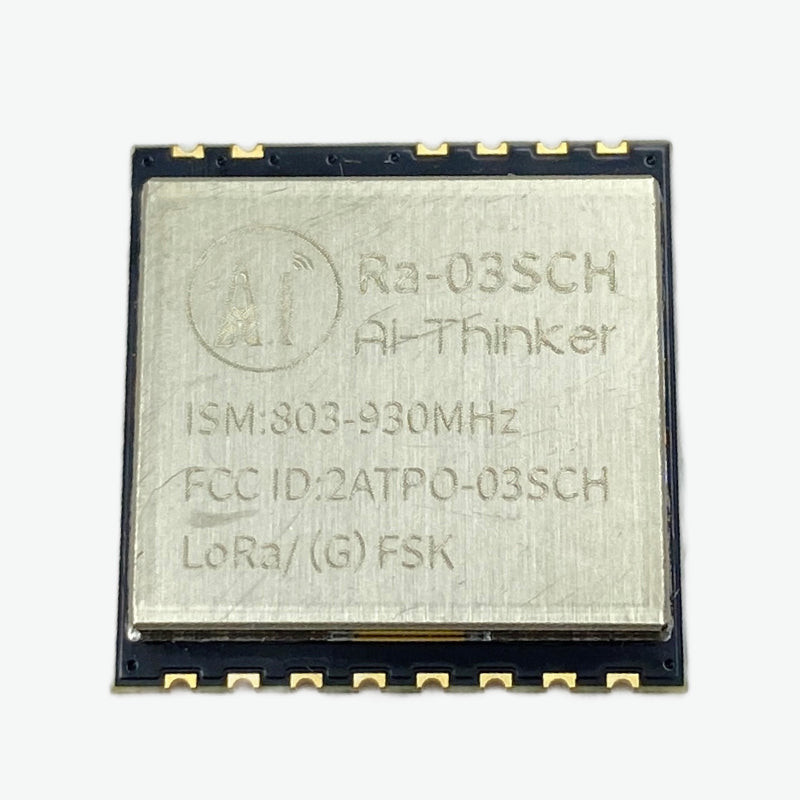

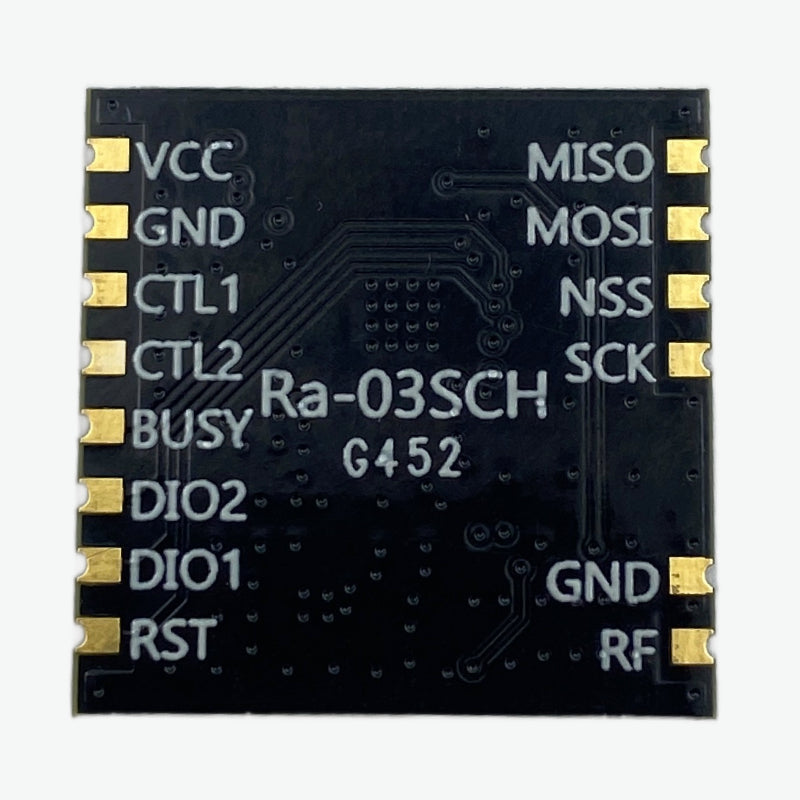

Ai-Thinker RA-03SCH Lora Module - 933Mhz
SKU:
MOD-QC5715
Availability:
1
In Stock
-
- Rs. 315.00
- Unit price
- per
Subtotal:
Rs. 315.00
Description
xAi-Thinker LoRa Module (RA-03SCH) – 930MHz is designed for long-range wireless communication using LoRa technology with low power consumption and high sensitivity. Ideal for IoT networks, smart agriculture, remote monitoring, and industrial communication applications.
Ai-Thinker RA-03SCH Lora Module Datasheet
Features:
- Supports LoRa®, FSK, and GFSK Modulation
- Wide Frequency Range (803MHz – 930MHz)
- High Output Power up to +22dBm
- High Sensitivity up to -129dBm
- Low Power Consumption
- SPI Interface with Half-Duplex Communication
- Supports Multiple Spreading Factors (SF5–SF11)
- Compact SMD Half-Hole Package
Specifications:
| Parameter | Value |
|---|---|
| Model | RA-03SCH |
| Frequency Range | 803 – 930 MHz |
| Modulation | LoRa, FSK, GFSK |
| Operating Voltage | 2.7 – 3.6V (Typical 3.3V) |
| Output Power | Up to +22 dBm |
| Max Working Current | 140mA |
| Receiving Current | 4.2mA (Min) |
| Standby Current | 0.6mA |
| Sensitivity | Up to -129 dBm |
| Interface | SPI |
| Bit Rate | Up to 300 kbps |
| Packet Engine | Up to 256 bytes |
| Antenna Type | Half-Hole Pad |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +125°C |
Explore AI Thinker Modules featuring ESP8266 and ESP32 chipsets with WiFi, Bluetooth, and RF capabilities, perfect for IoT development, wireless communication, automation systems, and embedded engineering projects.
Package Includes:
1 x Ai-Thinker LoRa Module (RA-03SCH) – 930MHz
