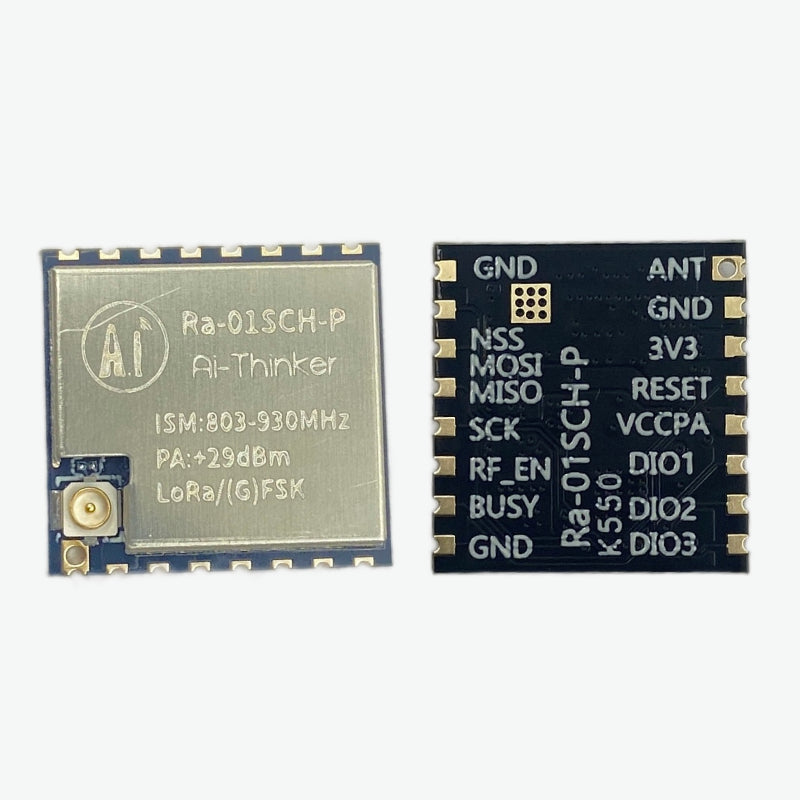

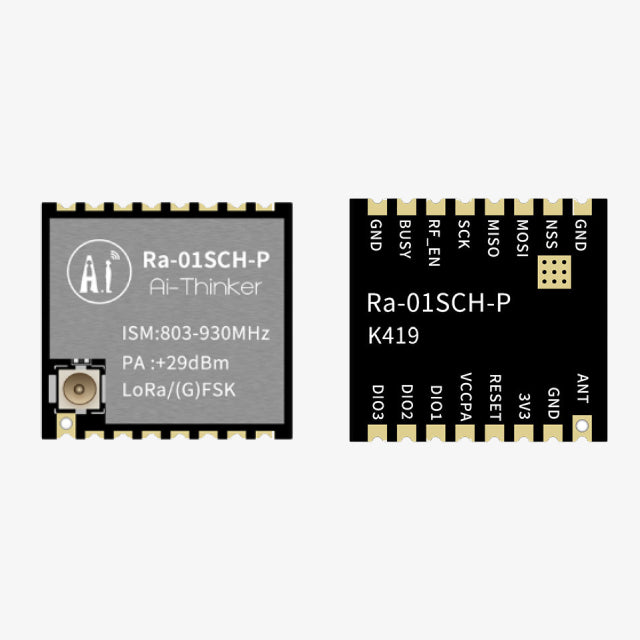

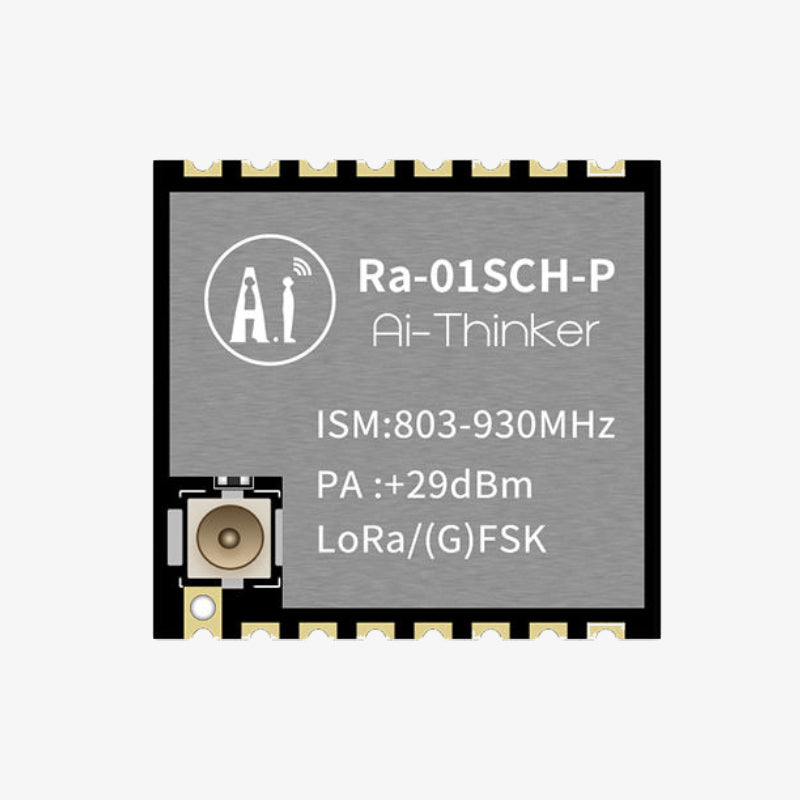

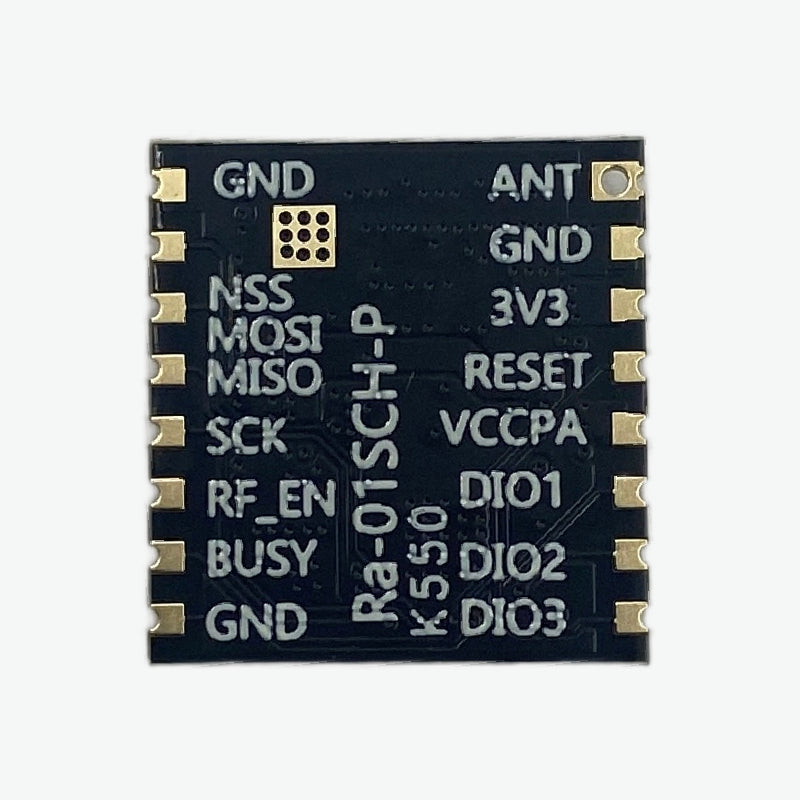

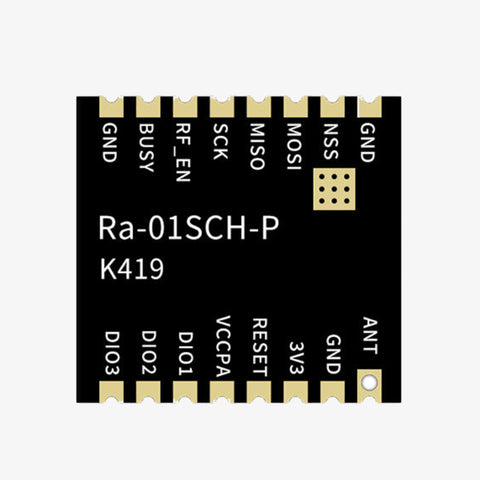

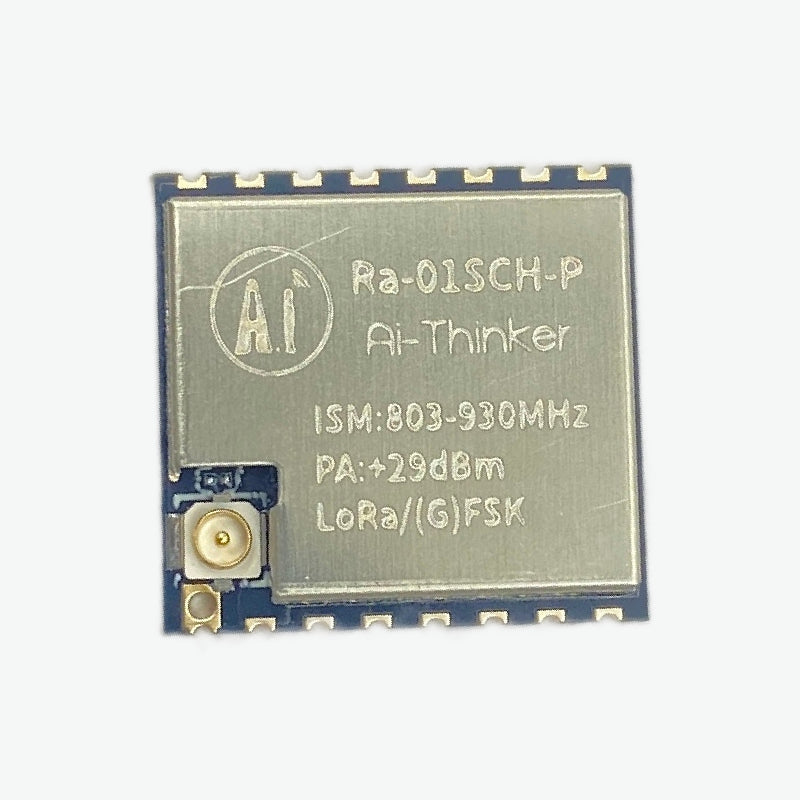

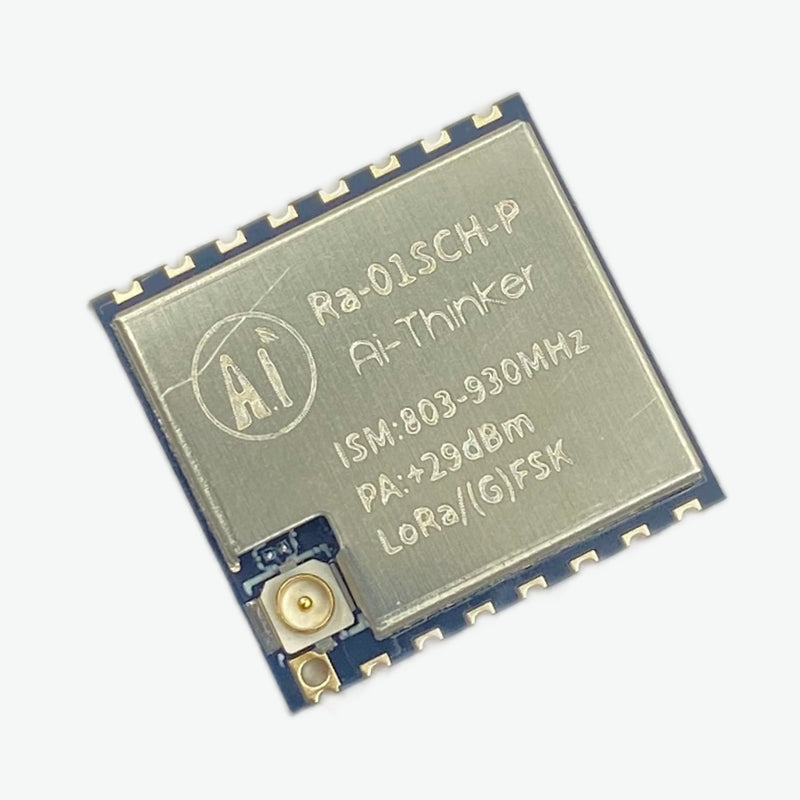

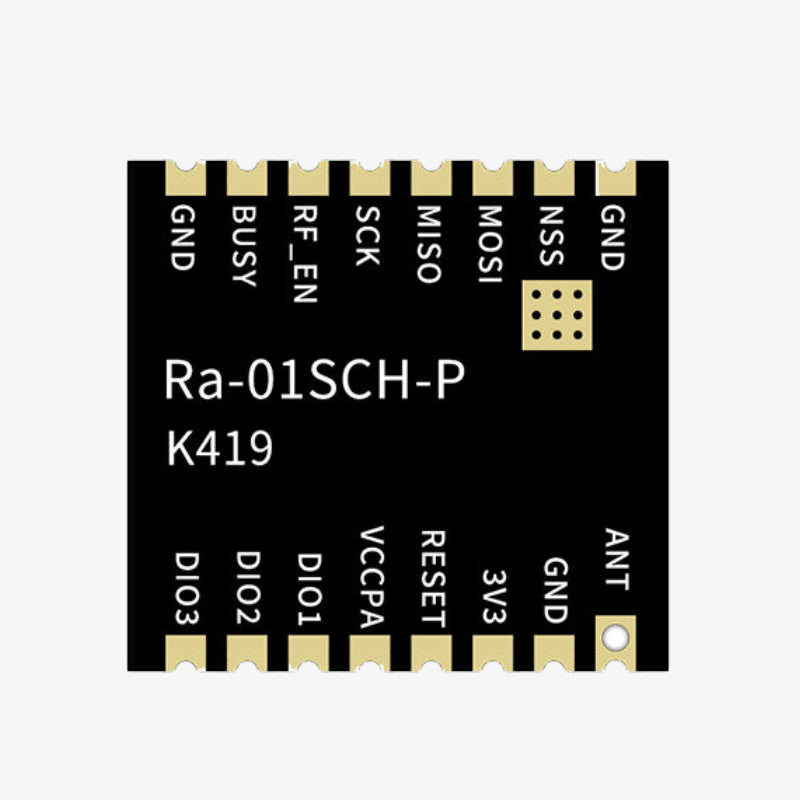

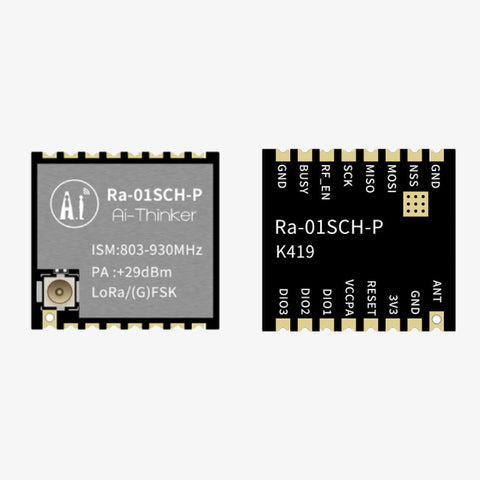

Ai-Thinker Ra-01SCH-P 868MHz LoRa Module for Wireless Communication
SKU:
MOD-QC4796
Availability:
Out Of Stock
- Rs. 378.00
- Rs. 378.00
- Unit price
- per
Subtotal:
Rs. 378.00
Description
xAi Thinker LoRa Module (Ra-01SCH-P) Wireless Communication Module – 868MHz is a compact long-range wireless communication module based on the LLCC68 chipset, designed for low-power wide-area networking applications, offering ultra-long transmission distance up to 10km, SPI interface communication, flexible antenna options, and reliable performance across a wide frequency range, making it ideal for home automation, building control, and industrial IoT systems.
Features:![]()
- Based on LLCC68 LoRa chipset
- Operates in 803MHz to 930MHz frequency range
- 868MHz optimized long-range communication
- Up to 10km ultra-long transmission distance
- Supports SPI communication interface
- Data rate up to 300 Kbps
- Multiple antenna options including IPEX
Specifications:
- Product Type: LoRa Wireless Communication Module
- Model: Ra-01SCH-P
- Chipset: LLCC68
- Frequency Range: 803 MHz to 930 MHz
- Interface: SPI
- Package Type: SMD-16
- Size: 17 × 16 × 3.2 mm
- Power Supply Voltage: 3.0 V to 3.6 V
- Typical Operating Voltage: 3.3 V
- Operating Current: >1 A
- Weight: 0.46 g
- Applications: Home automation, building automation, security systems, industrial IoT, long-range wireless communication
Package Includes:
1 × Ai Thinker Ra-01SCH-P 868MHz LoRa Module for Wireless Communication
