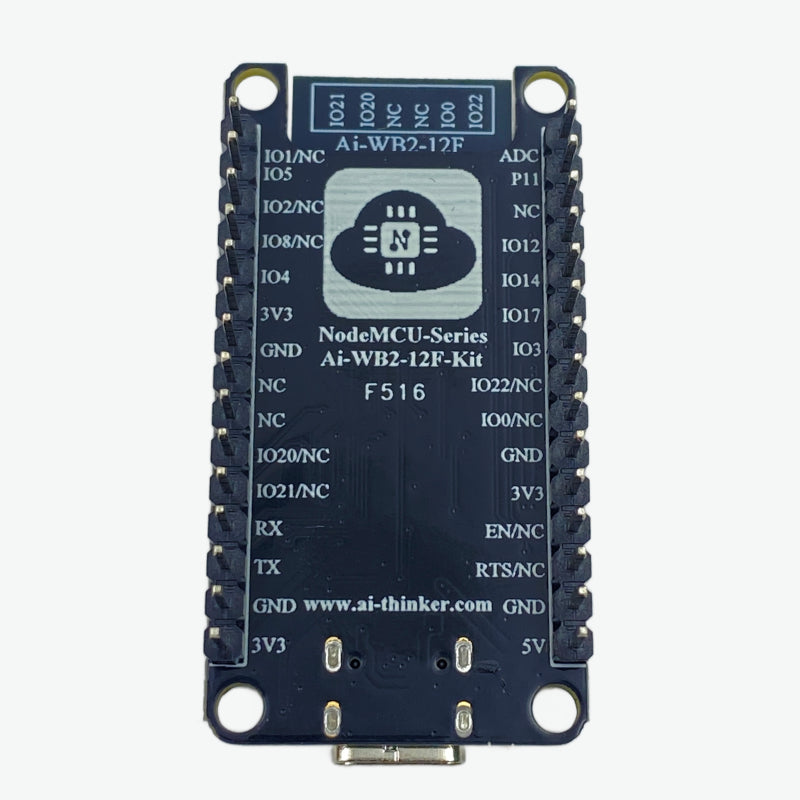

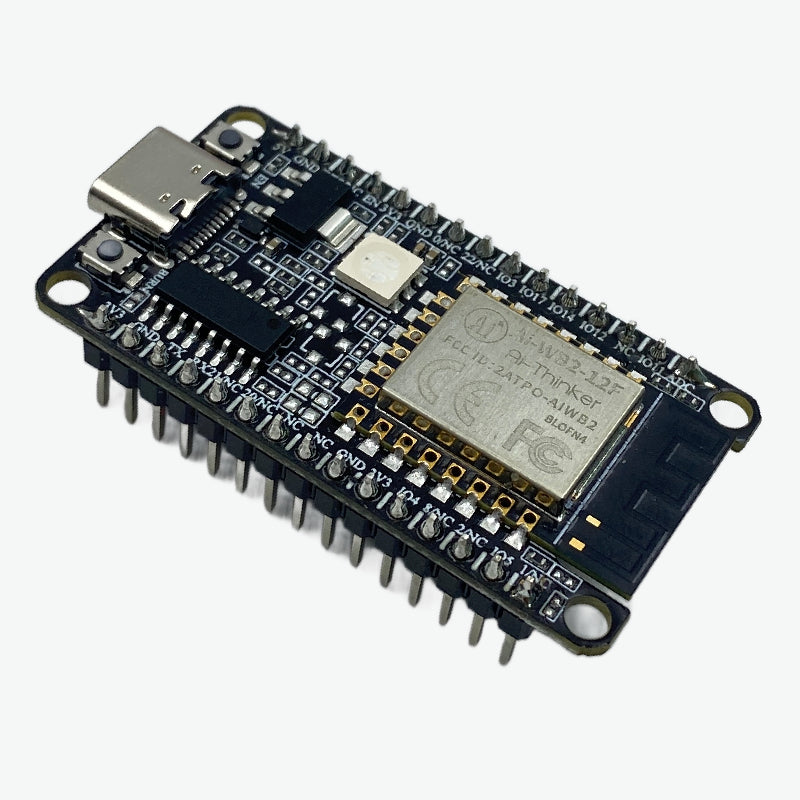

Ai-Thinker Ai-WB2-12F NodeMCU Wi-Fi + Bluetooth 5.0 IoT Development Board is designed for wireless IoT development using a RISC-V based chipset with integrated WiFi and Bluetooth 5.0. Ideal for smart devices, automation, and embedded networking applications.
Ai-Thinker Ai-WB2-12F Nodemcu Development Board Kit Datasheet
| Parameter | Value |
|---|---|
| Model | Ai-WB2-12F |
| Chipset | BL602 / BL604 (RISC-V) |
| Wireless | WiFi 2.4GHz + Bluetooth 5.0 |
| WiFi Standard | 802.11 b/g/n |
| WiFi Speed | Up to 72.2 Mbps |
| Frequency | 2400 – 2483.5 MHz |
| USB Interface | CH340 |
| Operating Voltage | 3.0 – 3.6V |
| Power Supply | 3.3V / 5V |
| Flash | 4MB |
| RAM | 276KB |
| Deep Sleep Current | 12µA |
| Interfaces | UART, SPI, I2C, PWM, ADC, GPIO |
| UART Default Baud Rate | 115200 bps |
| Antenna | PCB Onboard |
| Package | DIP 30 |
| Dimensions | 49.66 × 25.40 mm |
| Operating Temperature | -40°C to +85°C |
Explore AI Thinker Modules featuring ESP8266 and ESP32 chipsets with WiFi, Bluetooth, and RF capabilities, perfect for IoT development, wireless communication, automation systems, and embedded engineering projects.
1 x Ai-Thinker (Ai-WB2-12F) Nodemcu Wi-Fi + Bluetooth 5.0 IoT Development Board
