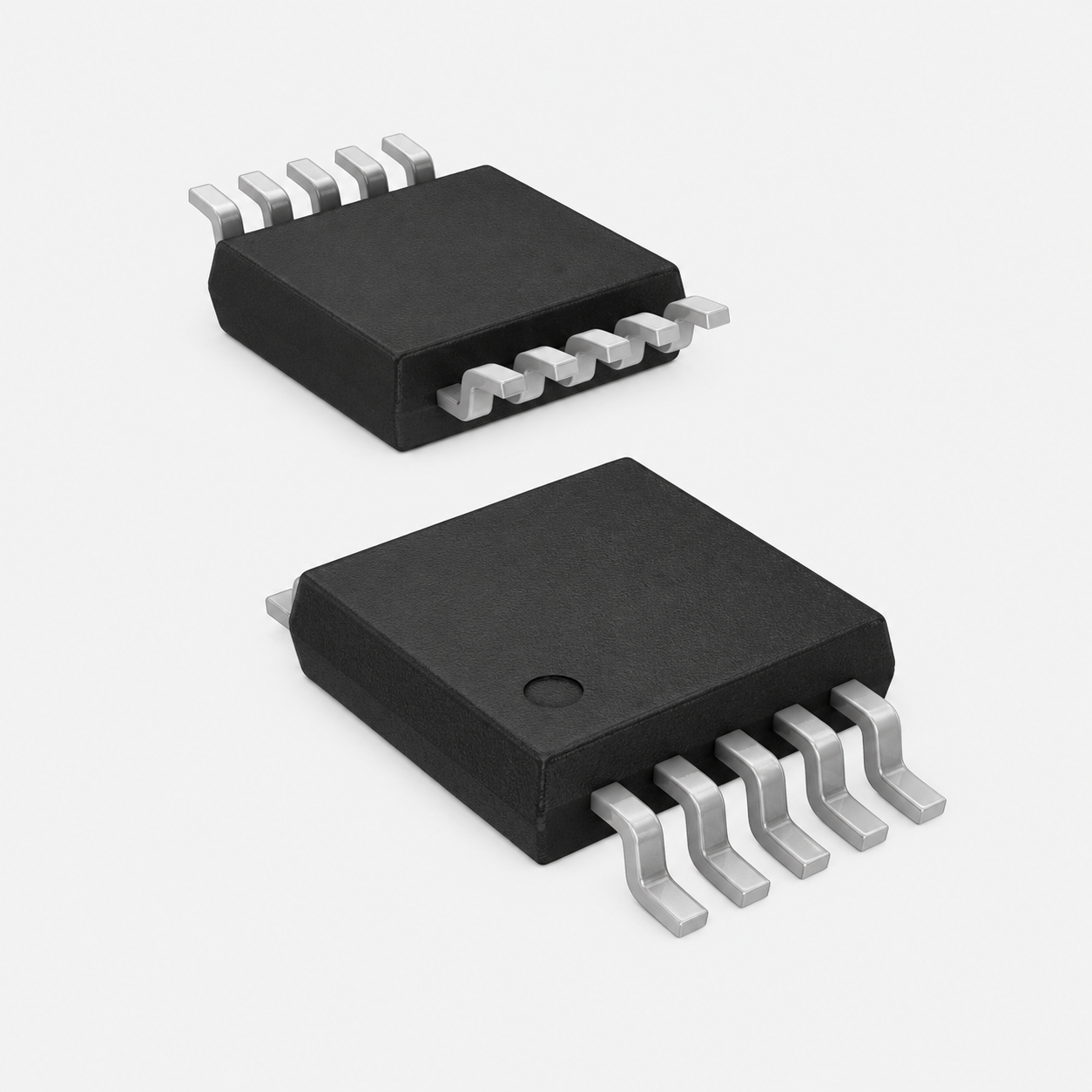

ADS1115IDGSR TI 16-Bit 2V~5.5V 860Hz ADC IC - VSSOP-10 Package
SKU:
SMD-QC5915
Availability:
50
In Stock
-
- Rs. 144.00
- Unit price
- per
Subtotal:
Rs. 144.00
Description
xADS1115IDGSR 16-Bit 2V~5.5V 860Hz Analog to Digital Converter (ADC) IC - VSSOP-10 Package (RoHS) is a high-precision 16-bit Analog-to-Digital Converter (ADC) featuring four single-ended or two differential input channels with an integrated programmable gain amplifier (PGA). Designed for low-power applications, it communicates through an I²C interface and supports data rates up to 860 samples per second, making it ideal for sensor measurement, industrial automation, battery-powered devices, instrumentation, and embedded systems.
ADS1115IDGSR 16-Bit 2V~5.5V 860Hz Analog to Digital Converters Datasheet
Features:
- 16-Bit High Resolution ADC
- 4 Single-Ended or 2 Differential Inputs
- I²C Compatible Interface
- Programmable Gain Amplifier (PGA)
- Data Rate up to 860Hz
- Wide Supply Voltage Range
- Low Power Consumption
- Internal Voltage Reference
- Single-Shot and Continuous Conversion Modes
- Built-in Digital Comparator
- RoHS Compliant
- Suitable for Sensor Interfaces, Data Acquisition, Industrial Control, and Embedded Systems
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Analog to Digital Converter (ADC) |
| Part Number | ADS1115IDGSR |
| Resolution | 16-Bit |
| Supply Voltage | 2.0V–5.5V |
| Interface | I²C |
| Input Channels | 4 Single-Ended / 2 Differential |
| Sampling Rate | Up to 860 SPS |
| PGA Gain | ±0.256V to ±6.144V |
| Input Type | Single-Ended / Differential |
| Comparator | Programmable Digital Comparator |
| Operating Temperature | -40°C to +125°C |
| Package | VSSOP-10 |
| RoHS Compliance | Yes |
Pin Configuration:
| Pin | Name | Description |
|---|---|---|
| 1 | ADDR | I²C Address Select |
| 2 | ALERT/RDY | Comparator / Ready Output |
| 3 | GND | Ground |
| 4 | AIN0 | Analog Input 0 |
| 5 | AIN1 | Analog Input 1 |
| 6 | AIN2 | Analog Input 2 |
| 7 | AIN3 | Analog Input 3 |
| 8 | VDD | Supply Voltage |
| 9 | SDA | I²C Data |
| 10 | SCL | I²C Clock |
