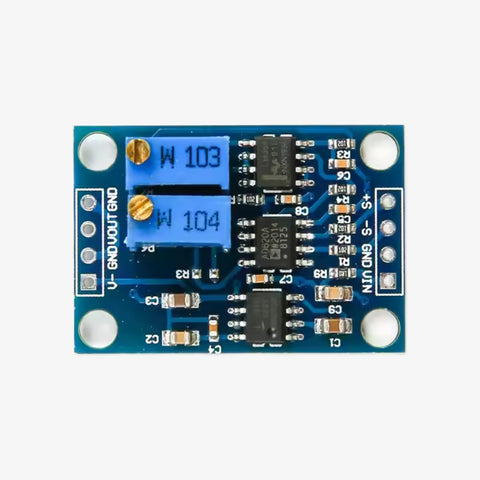

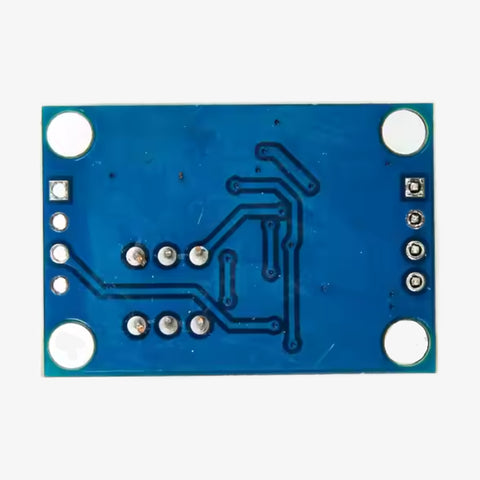

AD620 Microvolt/Millivolt Voltage Instrumentation Amplifier Module

The AD620 Microvolt/Millivolt Voltage Amplifier Module is a high-precision instrumentation amplifier designed for amplifying small signals with minimal noise. It is ideal for sensor signal conditioning, biomedical applications, and low-voltage measurements. Built around the AD620 instrumentation amplifier IC, this module provides high gain, low power consumption, and excellent linearity, making it suitable for applications requiring accurate signal amplification.

Features of AD620 Instrumentation Amplifier Module:

1. High-precision instrumentation amplifier with adjustable gain.
2. Amplifies microvolt/millivolt signals for accurate low-voltage measurements.
3. Low noise and low power consumption, suitable for sensitive applications.
4. Adjustable gain (1 to 1000) via an external resistor.
5. High input impedance and excellent common-mode rejection ratio (CMRR).
6. Compatible with sensors, strain gauges, medical devices, and industrial applications.
7. Single or dual power supply operation, making it versatile for different setups.

Specifications of AD620 Instrumentation Amplifier Module:

• Operating Voltage: 3V – 12V DC
• Amplification Gain: Adjustable (1 – 1000)
• Input Impedance: High impedance for accurate signal detection
• Common-Mode Rejection Ratio (CMRR): > 100 dB
• Bandwidth: Wide frequency response for signal integrity
• Power Consumption: Low power operation
• Signal Compatibility: Microvolt/Millivolt level input signals
• Dimensions: Compact module design for easy integration

Package Includes:

1 × AD620 Microvolt/Millivolt Voltage Amplifier Module
