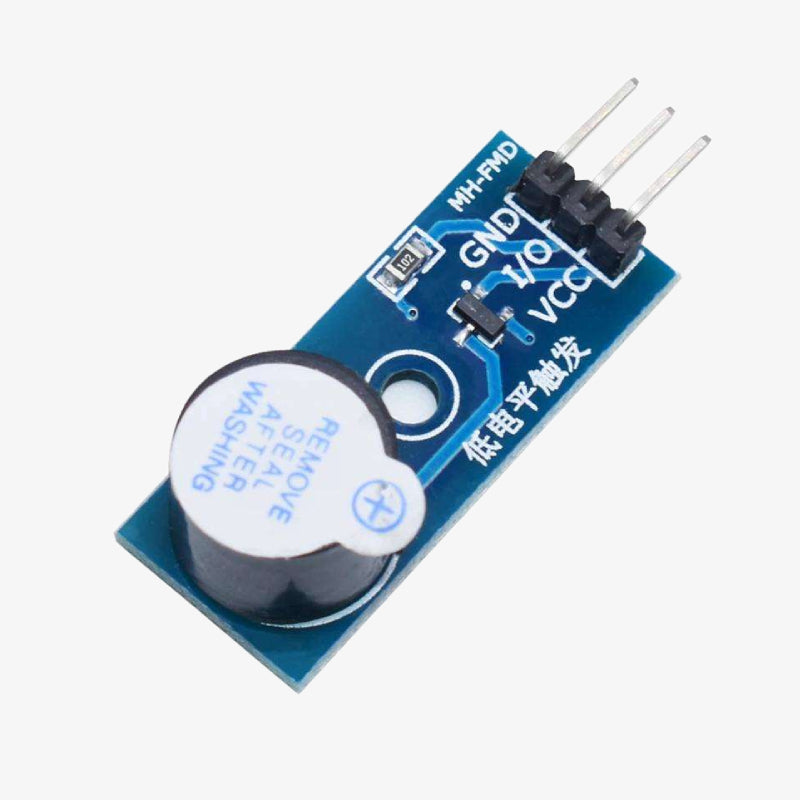

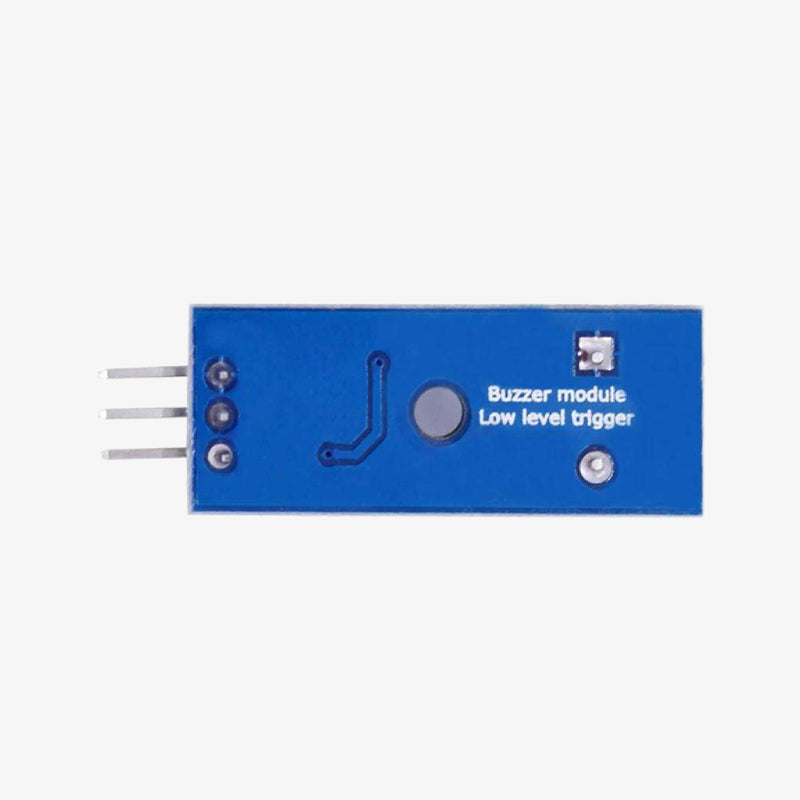

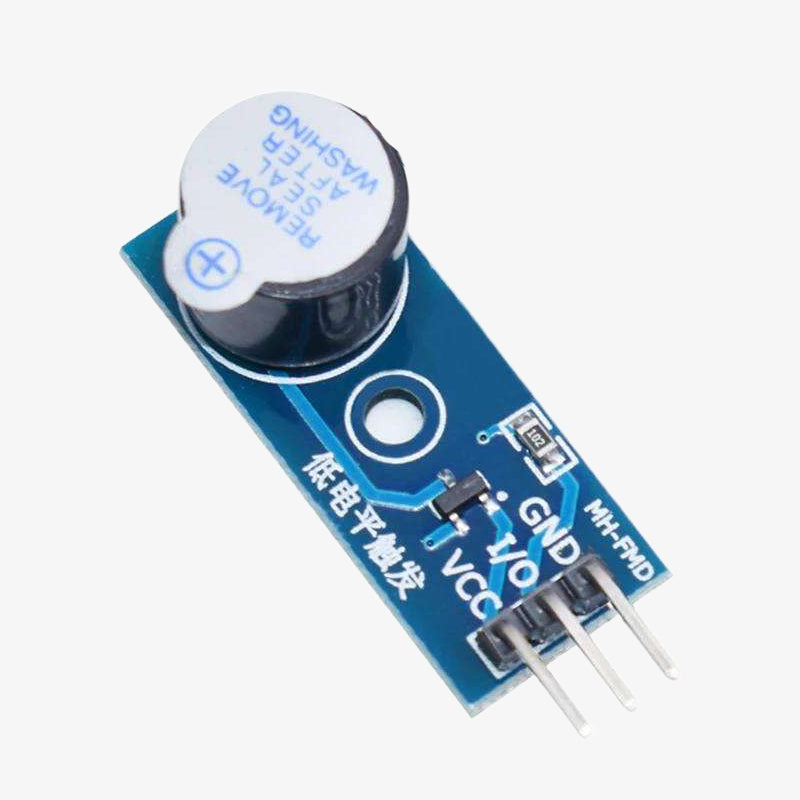

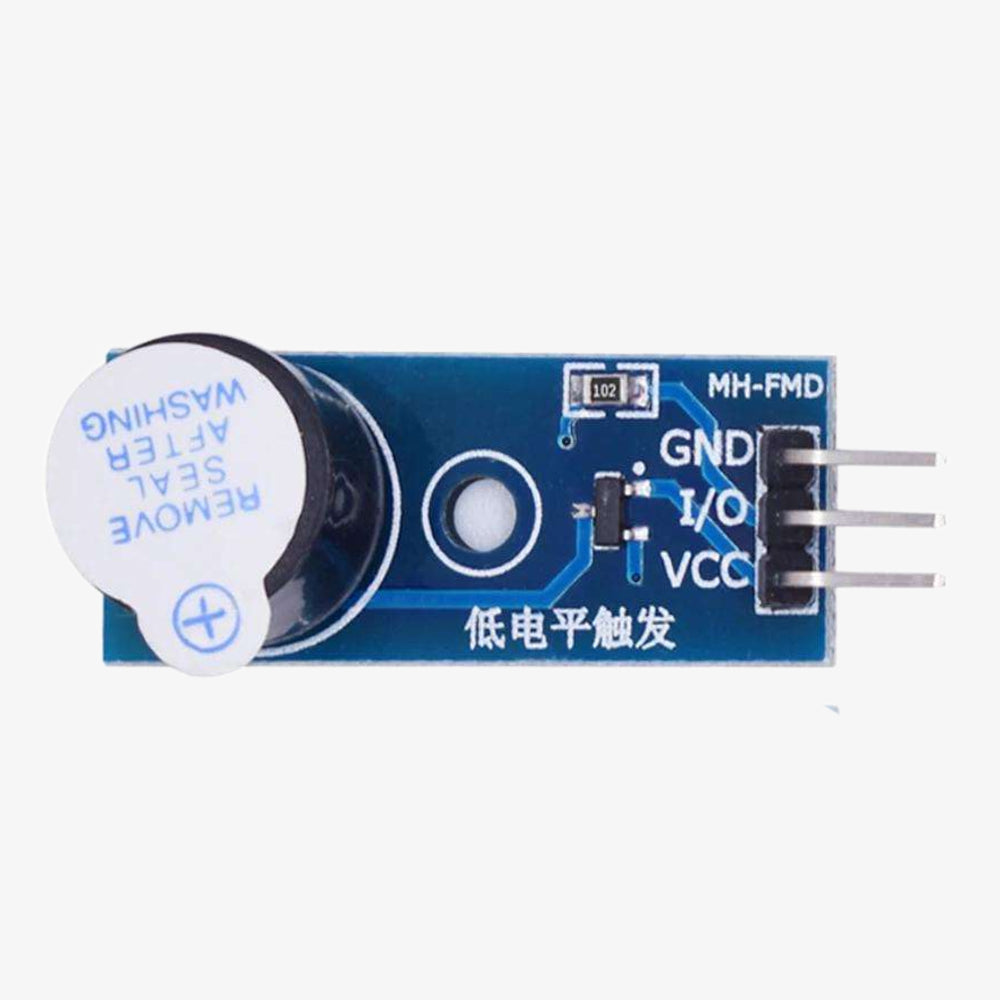

The Active Buzzer Module is a simple and easy-to-use sound-generating module designed for alarms, notifications, and user-interface feedback in electronic projects. Unlike passive buzzers, the active buzzer has a built-in oscillating source, which means it only requires a DC supply to produce a consistent sound—no external frequency signal is needed. Compact and easy to interface, it is widely used with Arduino, ESP32, Raspberry Pi, and other microcontrollers in DIY electronics, robotics, and alarm systems.
Features:
- Built-in oscillation circuit for direct DC drive.
- Produces continuous sound when powered.
- Compatible with Arduino, ESP32, Raspberry Pi, and other controllers.
- Simple 3-pin interface (VCC, GND, I/O).
- LED indicator for power/signal status (on some versions).
- Compact and lightweight design for easy integration.
Specifications:
- Module Type: Active Buzzer Module
- Operating Voltage: 3.3V – 5V DC
- Current Consumption: ~20mA (typical)
- Sound Output: ~85dB @ 10cm
- Frequency: ~1.5 – 2.5 kHz (fixed)
- Dimensions: 32mm × 12mm × 10mm
- Weight: 5g
Package Includes:
1 × Active Buzzer Module
