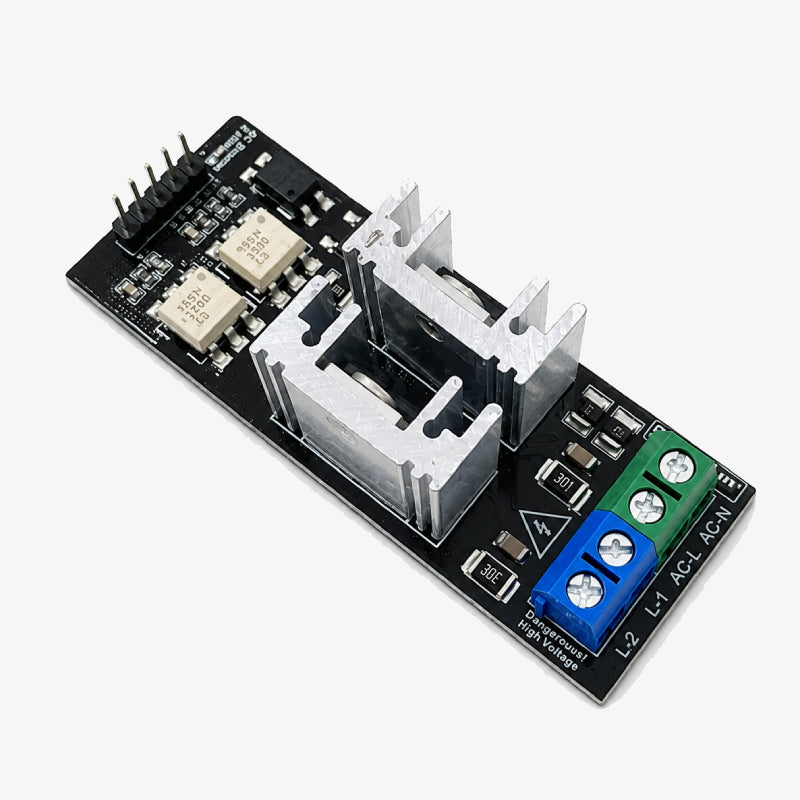

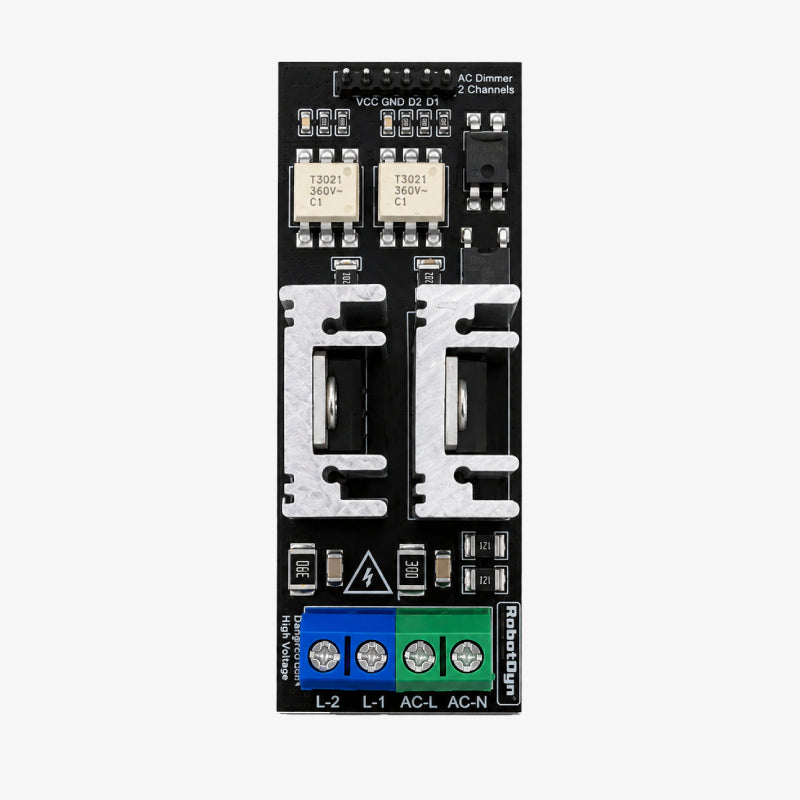

AC Light lamp dimming LED lamp and 2 Channel motor Dimmer Module

AC Light 2 Channel motor Dimmer Module is a two-channel AC dimmer module designed to independently control the power delivered to two AC loads. It uses BTA16-600B TRIACs and supports 3.3V or 5V logic-level control, making it suitable for interfacing with Arduino, ESP32, and other microcontrollers. The module can be used for dimming compatible lamps and controlling AC loads such as fans, pumps, and other appliances. The power section is electrically isolated from the control section for safer microcontroller interfacing.

AC Light lamp dimming LED lamp and motor Dimmer Module, 2 Channel Library

Features:

1. 2-channel AC dimming control.
2. Independent control of two AC loads.
3. Uses high-quality BTA16-600B TRIACs.
4. Supports 110V AC and 220V AC systems.
5. Compatible with 50Hz and 60Hz AC power.
6. Supports 3.3V and 5V microcontroller logic.
7. Power section isolated from the control section.
8. Suitable for dimmable incandescent and filament lamps.
9. Can be used with compatible LED lamps.
10. Suitable for AC fans, pumps, heating elements, and other compatible loads.
11. Supports smooth AC power control using phase-angle dimming.
12. Suitable for Arduino, ESP32, and other microcontroller projects.
13. Two dimming channels can be controlled from a single microcontroller.
14. Uses a shared zero-cross detection signal for AC waveform synchronization.
15. Suitable for smart-home and automation applications.

Specifications:

Pin Configuration:

Also Check These Out:

AS-10 220V AC Automatic On/Off Photocell Street Lamp Light Switch Controller

5X 10X Light-Weight Portable Tabletop Gooseneck Led Magnifying Desk Lamp

Package Includes:

1 × AC Light lamp dimming LED lamp and 2 Channel motor Dimmer Module
