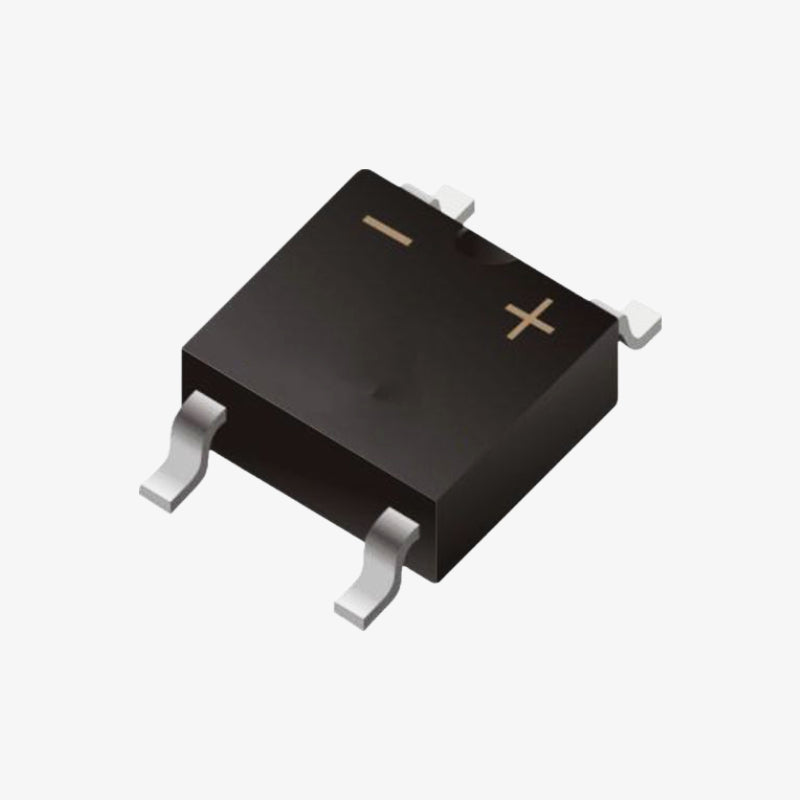

ABS10 1A 1000V Single Phase Bridge Rectifier Module - 4-Pin SMD Package (Pack of 10)
SKU:
SMD-QC3761
Availability:
493
In Stock
- Rs. 29.00
- Rs. 29.00
- Unit price
- per
Subtotal:
Rs. 29.00
Description
xThe ABS10 Bridge Rectifier is a compact SMD rectifier designed for efficient AC to DC conversion. It features a glass-passivated junction and low reverse leakage, ensuring stable performance in compact PCB layouts. Ideal for power adapters, LED drivers, and general rectification circuits.
Features:
- Glass passivated junction for improved reliability
- Low reverse leakage and forward voltage drop
- High forward surge current capability
- SMD molded ABS package with polarity marking
- Compliant with RoHS standards
Specifications:
- Average Forward Current (IF(AV)): 0.8A / 1.0A
- Peak Repetitive Reverse Voltage (VRRM): 1000V
- DC Blocking Voltage (VDC): 1000V
- RMS Voltage (VR(RMS)): 700V
- Peak Forward Surge Current (IFSM): 50A (8.3ms single half sine wave)
- Instantaneous Forward Voltage (VF): 1.0V at IF = 0.5A
- Reverse Current (IR) at 25°C: 5µA
- Reverse Current (IR) at 125°C: 500µA
- Thermal Resistance Junction to Ambient (RθJA): 80°C/W / 62.5°C/W
- Thermal Resistance Junction to Lead (RθJL): 25°C/W
- Operating Junction Temperature (TJ): -55°C to +150°C
- Storage Temperature Range (TSTG): -55°C to +150°C
Package Includes:
10 × ABS10 Bridge Rectifier - SMD Package
