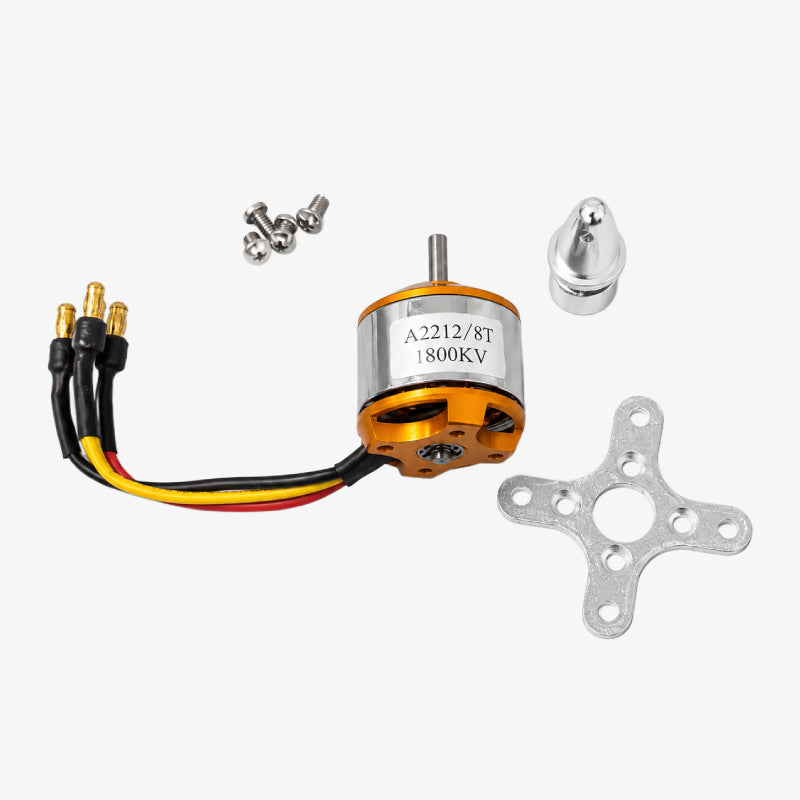

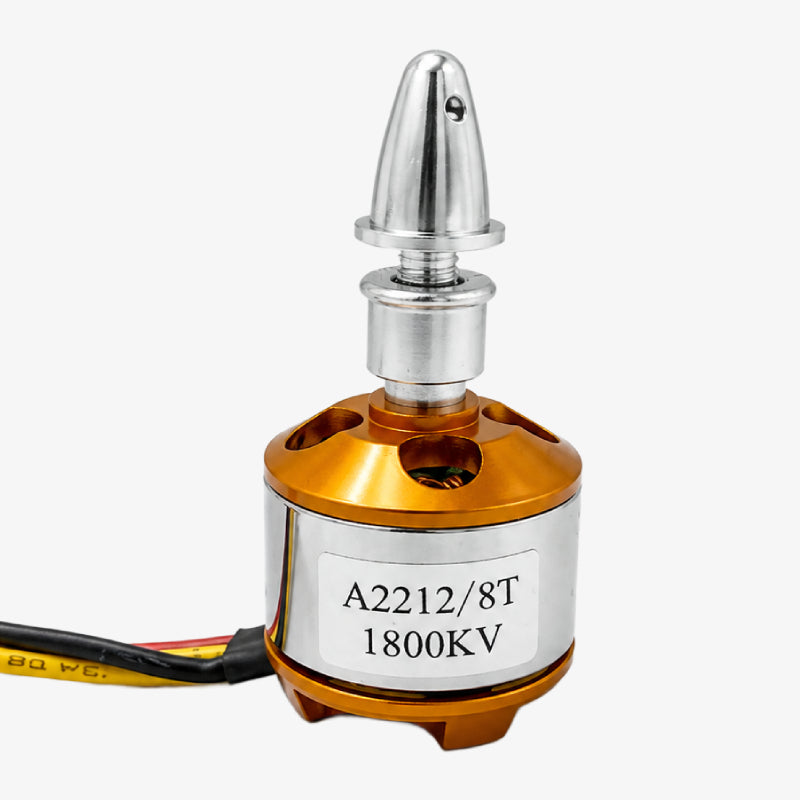

A2212 1800 KV BLDC Brushless DC Motor for Drone is a high-performance brushless outrunner motor designed for drones, quadcopters, multirotors, RC aircraft, helicopters, and other hobby applications. With a 1800KV rating, it provides a no-load speed of approximately 1800 RPM per volt and is designed for use with 2S to 3S LiPo batteries. The motor features a compact 27.5mm × 30mm construction, 3.17mm shaft, and high-efficiency operation, making it suitable for medium-sized drone and RC propulsion systems.
| Parameter | Value |
|---|---|
| Product Type | BLDC Brushless Outrunner Motor |
| Model | A2212 |
| KV Rating | 1800KV |
| Speed Constant | 1800 RPM/V |
| Motor Type | Brushless DC / BLDC |
| Motor Configuration | Outrunner |
| Recommended Battery | 2S–3S LiPo |
| Operating Voltage | Approx. 7.4–11.1V DC |
| Maximum Efficiency | Approx. 80% |
| Maximum Efficiency Current | 4–10A |
| Efficiency Threshold | >75% |
| Current Capacity | 12A / 60s |
| No-Load Current | Approx. 0.5A @ 10V |
| Motor Diameter | Approx. 27.5mm |
| Motor Length | Approx. 30mm |
| Shaft Diameter | 3.17mm |
| Motor Weight | Approx. 47g |
| Recommended ESC | Minimum 18A |
| Suggested ESC | 30A |
| Recommended Propeller | Approx. 8–9 inch* |
| Thrust @ 3S + 1045 Propeller | Approx. 1000g* |
| Thrust @ 3S + 0945 Propeller | Approx. 650g* |
| Thrust @ 3S + 0845 Propeller | Approx. 550g* |
| Number of Motor Phases | 3 |
| Motor Connection | 3-Phase |
| Shaft Type | Propeller Mounting Shaft |
| Application | Drone, Quadcopter, Multirotor & RC Aircraft |
5010 750KV High Torque Brushless Motor for Drone
RS2205 2300KV Brushless High Speed DC Motor for Drone (CW)
RS2205 2300KV Brushless High Speed DC Motor for Drone (CCW)
RS2205 2700KV Brushless High Speed DC Motor for Drone (CCW)
1 × A2212 1800KV BLDC Brushless DC Motor for Drone
