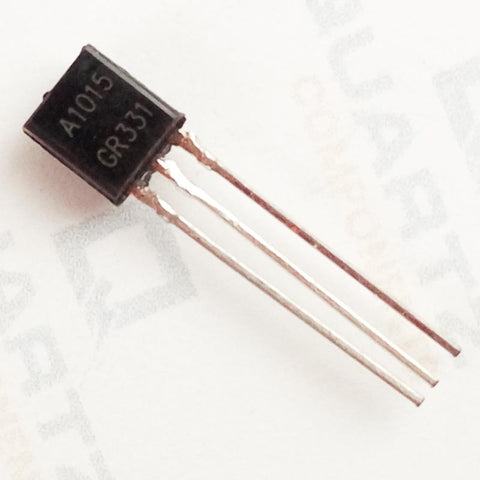

A1015 PNP Audio Amplifier Transistor A1015 PNP Audio Amplifier Transistor

QC0606

37 In stock

Rs. 5.00
-
+
Rs. 5.00
(inc. GST)

The A1015 transistor is a high voltage and high current PNP transistor. A transistor can normally be used as a switch or amplifier, but this transistor is commonly is used only for audio frequency amplifier application since it has a very high dc current gain value of 120-700. It can switch on or off the loads with voltages upto 50V. When transistor is fully biased which you can do with base emitter voltage of about 1.1V, it can carry a collector current upto 150mA. It can be used in Darlington Pair, audio Amplification, driver stage amplification etc.

A1015 Transistor Specifications

  • PNP Transistor
  • DC Current Gain (hFE): 70-700
  • Continuous Collector current: 150mA
  • Base- Emitter Voltage: 1.1V
  • Collector-Emitter Voltage: 50V
  • Collector-Base Voltage: 60V
  • Available in To-92 Package

Product Description

A1015 Transistor Pinout

Package Contents

1× A1015 Transistor

Additional Resources

Datasheet of A1015 PNP Transistor

The A1015 transistor is a high voltage and high current PNP transistor. A transistor can normally be used as a switch or amplifier, but this transistor is commonly is used only for audio frequency amplifier application since it has a very high dc current gain value of 120-700. It can switch on or off the loads with voltages upto 50V. When transistor is fully biased which you can do with base emitter voltage of about 1.1V, it can carry a collector current upto 150mA. It can be used in Darlington Pair, audio Amplification, driver stage amplification etc.

A1015 Transistor Specifications

  • PNP Transistor
  • DC Current Gain (hFE): 70-700
  • Continuous Collector current: 150mA
  • Base- Emitter Voltage: 1.1V
  • Collector-Emitter Voltage: 50V
  • Collector-Base Voltage: 60V
  • Available in To-92 Package

Product Description

A1015 Transistor Pinout

Package Contents

1× A1015 Transistor

Additional Resources

Datasheet of A1015 PNP Transistor
